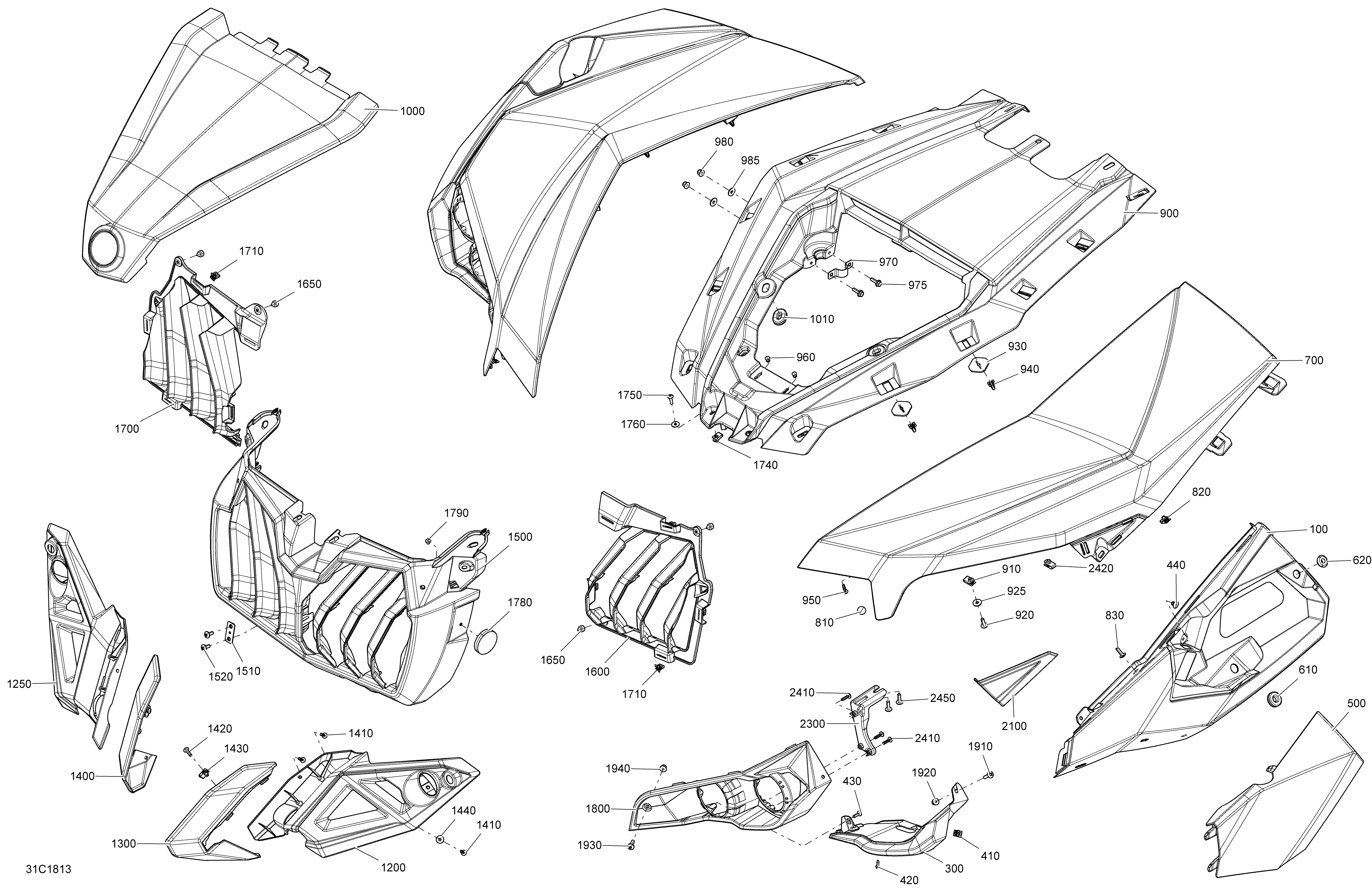

09- Body Front Part Maverick - Bright White Models для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
100705007978 White LH Front Fender. Bright White ModelsWhite LH Front Fender. Bright White Models
-
100705007979 White RH Front Fender. Bright White ModelsWhite RH Front Fender. Bright White Models
-
300705007981 White LH Front Fender Trim. Bright White ModelsWhite LH Front Fender Trim. Bright White Models
-
300705007982 White RH Front Fender Trim. Bright White ModelsWhite RH Front Fender Trim. Bright White Models
-
410517302785 ClipClip
-
420250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
430250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
440293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
500705007983 White LH Cover Front Fender. Package XCWhite LH Cover Front Fender. Package XC
-
500705007983 White LH Cover Front Fender. Package DPSWhite LH Cover Front Fender. Package DPS
-
500705010783 Cover Fender LH Can-Am Red. Package XCDPSCover Fender LH Can-Am Red. Package XCDPS
-
500705007984 White RH Cover Front Fender. Package XCWhite RH Cover Front Fender. Package XC
-
500705007984 White RH Cover Front Fender. Package DPSWhite RH Cover Front Fender. Package DPS
-
500705010784 Cover Fender RH Can-Am Red. Package XCDPSCover Fender RH Can-Am Red. Package XCDPS
-
610517303756 GrommetGrommet
-
620705003264 GrommetGrommet
-
700705007348 White LH Fixe Hood. Bright White ModelsWhite LH Fixe Hood. Bright White Models
-
700705007349 White RH Fixe Hood. Bright White ModelsWhite RH Fixe Hood. Bright White Models
-
810414644300 DartDart
-
820250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
830250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
900705005821 Fixe Center Hood. Package XC, XCDPSFixe Center Hood. Package XC, XCDPS
-
900705005821 Fixe Center Hood. Package DPSFixe Center Hood. Package DPS
-
910250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
920250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
925234062670 Flat Washer, StainlessFlat Washer, Stainless
-
930705003841 Support PlateSupport Plate
-
940517302785 ClipClip
-
950250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
960293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
970705006623 ClampClamp
-
975207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
980233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
985234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1000705007060 Black Removable Hood. Bright White ModelsBlack Removable Hood. Bright White Models
-
1010705005156 Oval WasherOval Washer
-
1200705007497 LH Bumper GrillLH Bumper Grill
-
1250705007498 RH Bumper GrillRH Bumper Grill
-
1300705007352 White LH Bumper Cap. Package XCDPSWhite LH Bumper Cap. Package XCDPS
-
1300705007352 White LH Bumper Cap. Package XCWhite LH Bumper Cap. Package XC
-
1300705010791 Bumper Cap LH Can-Am Red. Package DPS Bright White ModelsBumper Cap LH Can-Am Red. Package DPS Bright White Models
-
1400705007353 White RH Bumper Cap. Package XCWhite RH Bumper Cap. Package XC
-
1400705007353 White RH Bumper Cap. Package XCDPSWhite RH Bumper Cap. Package XCDPS
-
1400705010792 Bumper Cap RH Can-Am Red. Package DPS Bright White ModelsBumper Cap RH Can-Am Red. Package DPS Bright White Models
-
1410250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1420250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
1430250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
1440250200025 Washer M5Washer M5
-
1500705005784 Front Radiator GrillFront Radiator Grill
-
1510705006635 Radiator Grill BracketRadiator Grill Bracket
-
1520250000721 Torx ScrewTorx Screw
-
1600705005983 LH Rear Radiator GrillLH Rear Radiator Grill
-
1650293830005 Rubber BumperRubber Bumper
-
1700705005984 RH Rear Radiator GrillRH Rear Radiator Grill
-
1710517302785 ClipClip
-
1740250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
1750250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
1760250200025 Washer M5Washer M5
-
1780705011222 Amber ReflectorAmber Reflector
-
1800705004508 LH Front FaciaLH Front Facia
-
1800705004509 RH Front FaciaRH Front Facia
-
1910250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
1920233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1930250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1940233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2100705005992 LH Front Facia TrimLH Front Facia Trim
-
2100705005993 RH Front Facia TrimRH Front Facia Trim
-
2300705006078 LH Front Facia SupportLH Front Facia Support
-
2300705006079 RH Front Facia SupportRH Front Facia Support
-
2410250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
2420250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2450250000722 Torx Screw M6 X 20Torx Screw M6 X 20
