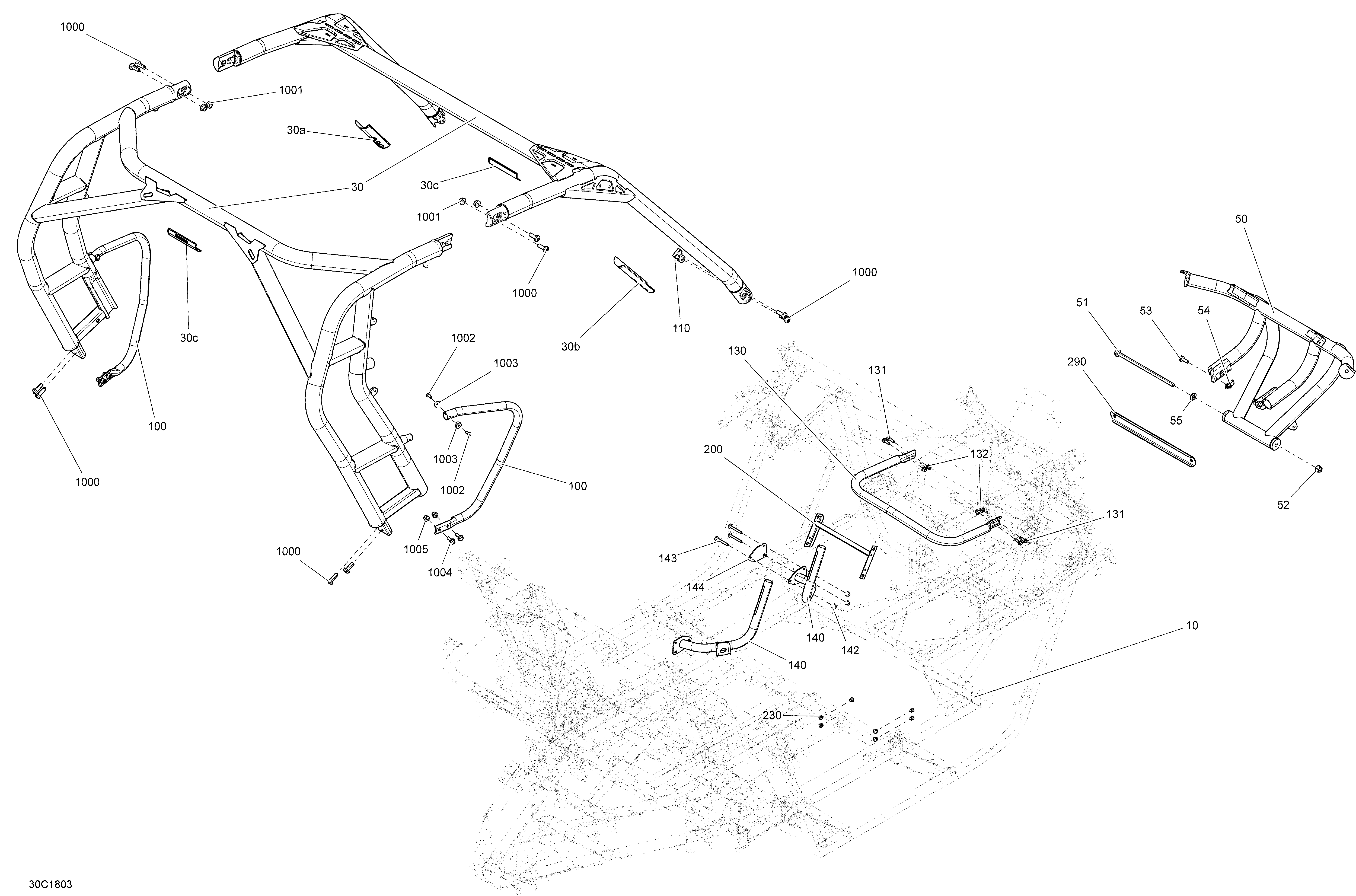

09- Frame Maverick Non MAX для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
10715004817 Frame KitFrame Kit
-
30>30c715003901 Black Cage Kit. Black Cage. Includes 30 to 30cBlack Cage Kit. Black Cage. Includes 30 to 30c
-
30>30c715003905 Red Cage Kit . Red Cage. Includes 30 to 30cRed Cage Kit . Red Cage. Includes 30 to 30c
-
30>30c715003903 Blue Cage Kit . Gulfstream Blue Cage. Includes 30 to 30cBlue Cage Kit . Gulfstream Blue Cage. Includes 30 to 30c
-
30>30c715004396 Yellow Front Cage Kit. Sunburst Yellow Cage. Includes 30 to 30cYellow Front Cage Kit. Sunburst Yellow Cage. Includes 30 to 30c
-
30a704903679 Warning LabelWarning Label
-
30b704903680 Warning LabelWarning Label
-
30c704903492 Warning LabelWarning Label
-
50705203685 Black Front BumperBlack Front Bumper
-
51250000597 Hex. Flange ScrewHex. Flange Screw
-
52233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
53207382544 Hex. Flange ScrewHex. Flange Screw
-
54250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
55234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
100705203640 Black RH Side Protector Tube. Black CageBlack RH Side Protector Tube. Black Cage
-
100705204410 Red RH Front Side Protector Tube. Red CageRed RH Front Side Protector Tube. Red Cage
-
100705204817 Blue RH Side Protector Tube. Gulfstream Blue CageBlue RH Side Protector Tube. Gulfstream Blue Cage
-
100705206148 Yellow Side Protect. Sunburst Yellow CageYellow Side Protect. Sunburst Yellow Cage
-
110705203415 Binding BlockBinding Block
-
120705203637 Black LH Side Protector Tube. Black CageBlack LH Side Protector Tube. Black Cage
-
120705204409 Red LH Front Side Protector Tube. Red CageRed LH Front Side Protector Tube. Red Cage
-
120705204816 Blue LH Side Protector Tube. Gulfstream Blue CageBlue LH Side Protector Tube. Gulfstream Blue Cage
-
120705206147 Yellow Side Protect . Sunburst Yellow CageYellow Side Protect . Sunburst Yellow Cage
-
130705203332 Black HandleBlack Handle
-
131207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
132233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
140705204399 Black Console HandleBlack Console Handle
-
142233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
143250000317 Torx Screw M6 X 50Torx Screw M6 X 50
-
144705204606 Steel PlateSteel Plate
-
200705203330 Reinforcement PanelReinforcement Panel
-
230293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
290705203454 Front Suspension LinkFront Suspension Link
-
1000250000848 Screw Pan M10 X 30Screw Pan M10 X 30
-
1001233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
1002250000789 Torx Truss M6X14Torx Truss M6X14
-
1003705202223 Offset WasherOffset Washer
-
1004207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
1005233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
