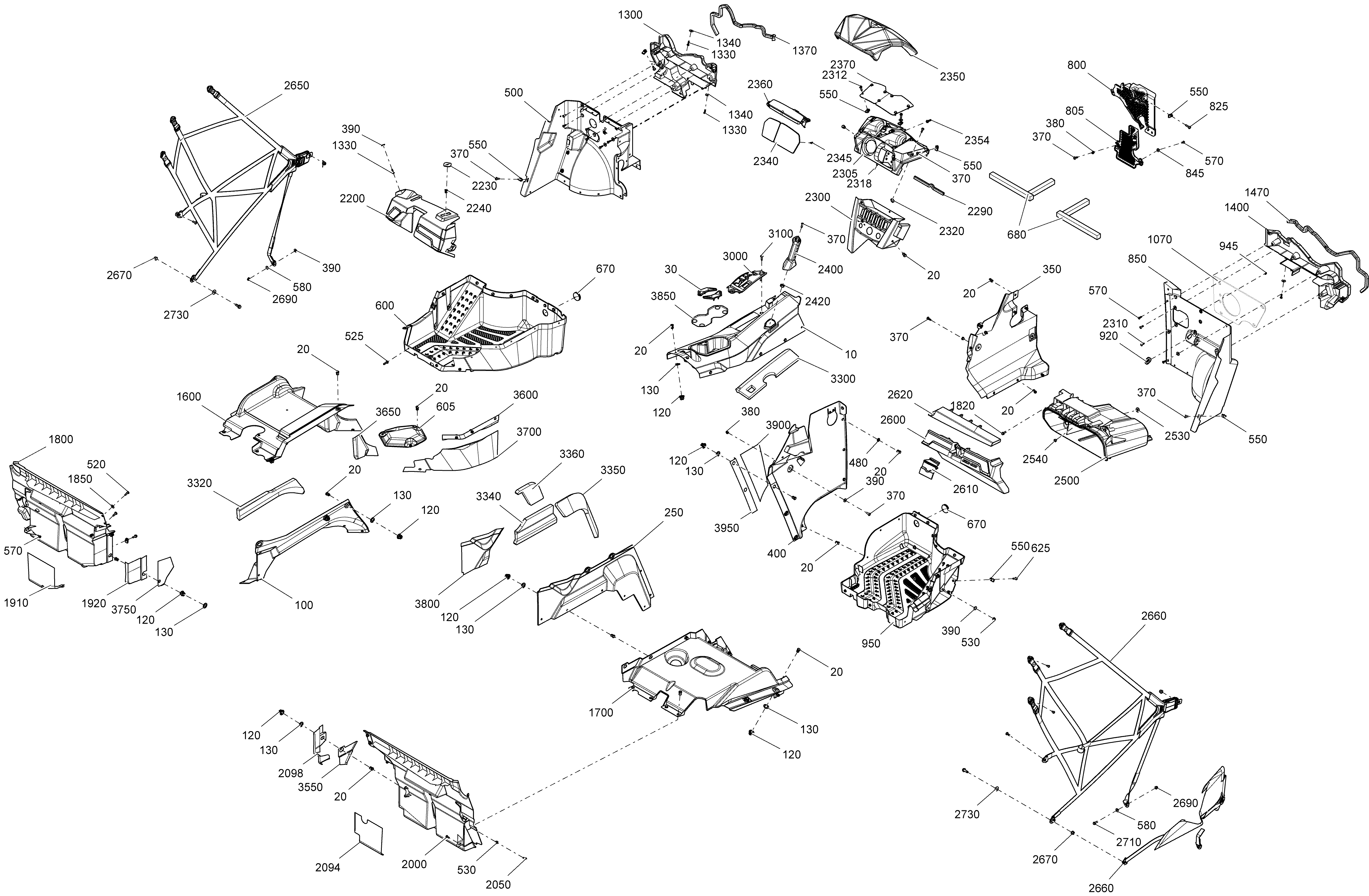

09- Cab Interior Maverick Non MAX - Package XMR для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
10715003362 Console KitConsole Kit
-
20293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
30707900036 Cup RetainerCup Retainer
-
100707900308 LH Side ConsoleLH Side Console
-
120707900133 InsertInsert
-
130503189273 WasherWasher
-
250707900002 RH Side ConsoleRH Side Console
-
350707900193 Front Side Dash PanelFront Side Dash Panel
-
370250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
380293450274 InsertInsert
-
390234062670 Flat Washer, StainlessFlat Washer, Stainless
-
400707900203 RH Fixe Side ConsoleRH Fixe Side Console
-
480506151252 WasherWasher
-
500707900181 LH Front FloorLH Front Floor
-
520250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
525250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
530233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
550250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
570250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
580234062410 Flat Washer 6 mmFlat Washer 6 mm
-
600707900309 LH Lower Floor. Includes 600 to 600aLH Lower Floor. Includes 600 to 600a
-
605707900311 Floor CapFloor Cap
-
625250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
670293250242 Rubber CoverRubber Cover
-
680293250381 Seal TraySeal Tray
-
800707900178 GrillGrill
-
805707900180 GrillGrill
-
825250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
845250200025 Washer M5Washer M5
-
850707900004 RH Front FloorRH Front Floor
-
920705003668 Oblong GrommetOblong Grommet
-
945233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
950707900023 RH Lower FloorRH Lower Floor
-
1070707900217 Hose Support. Not ShownHose Support. Not Shown
-
1300707900561 Floor Support LHFloor Support LH
-
1330250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1340224060201 Flat WasherFlat Washer
-
1370293200093 Neoprene SealNeoprene Seal
-
1400707900563 Floor Support RHFloor Support RH
-
1470293200093 Neoprene SealNeoprene Seal
-
1600707900310 LH Under Seat PlateLH Under Seat Plate
-
1700707900006 RH Under Seat PlateRH Under Seat Plate
-
1800707900164 LH Rear DeflectorLH Rear Deflector
-
1820207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1850250200040 Flat WasherFlat Washer
-
1910707900182 Heat ShieldHeat Shield
-
1920707900183 Heat ShieldHeat Shield
-
2000707900166 RH Rear DeflectorRH Rear Deflector
-
2050250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
2094707900167 Heat ShieldHeat Shield
-
2098707900184 Heat ShieldHeat Shield
-
2200715001250 Dashboard Ass'yDashboard Ass'y
-
2230705003841 Support PlateSupport Plate
-
2240517302785 ClipClip
-
2290271000110 Protection Trim. Includes 2290 to 2290aProtection Trim. Includes 2290 to 2290a
-
2300707900065 Lower Central Dashboard Ass'y. Includes 2300 to 2300aLower Central Dashboard Ass'y. Includes 2300 to 2300a
-
2305707900199 Upper Central Console Ass'yUpper Central Console Ass'y
-
2310250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
2320250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
2340707900104 GPS Cover And Radio ControlGPS Cover And Radio Control
-
2345250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
-
2350707900467 Dash Cap Can-Am Red. Deep Black ModelsDash Cap Can-Am Red. Deep Black Models
-
2350707900600 Dash Cap. Carbon Black ModelsDash Cap. Carbon Black Models
-
2354210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
2355234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2356250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2360707900215 Central FilterCentral Filter
-
2370707900216 Dashboard CoverDashboard Cover
-
2376250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2400707900011 Passenger HandlePassenger Handle
-
2420707900048 Connector TubeConnector Tube
-
2500707900046 Storage BinStorage Bin
-
2530414859400 CapCap
-
2540293830005 Rubber BumperRubber Bumper
-
2600707900221 Luggage Cover KitLuggage Cover Kit
-
2610707900031 LatchLatch
-
2620707900062 Trim Glove Box. Includes 2620 to 2620aTrim Glove Box. Includes 2620 to 2620a
-
2650707900237 Front LH Safety NetFront LH Safety Net
-
2660707900238 Front RH Safety NetFront RH Safety Net
-
2670233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2690233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2710207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2730234082410 Flat Washer 8 mmFlat Washer 8 mm
-
3000707900070 Lever IndicatorLever Indicator
-
3100250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3300707900619 Front Central Console FoamFront Central Console Foam
-
3320707900631 Left Upper Lateral Console FoamLeft Upper Lateral Console Foam
-
3340707900622 Right Lateral Console FoamRight Lateral Console Foam
-
3350707900623 Right Lateral Console FoamRight Lateral Console Foam
-
3360707900624 Right Lateral Console FoamRight Lateral Console Foam
-
3550707900148 Heat SheetHeat Sheet
-
3600707900313 Heat SheetHeat Sheet
-
3650707900314 Heat SheetHeat Sheet
-
3700707900315 Heat SheetHeat Sheet
-
3750707900146 Heat SheetHeat Sheet
-
3800707900147 Heat SheetHeat Sheet
-
3850707900145 Heat SheetHeat Sheet
-
3900707900190 Heat SheetHeat Sheet
-
3950707900191 Heat SheetHeat Sheet
