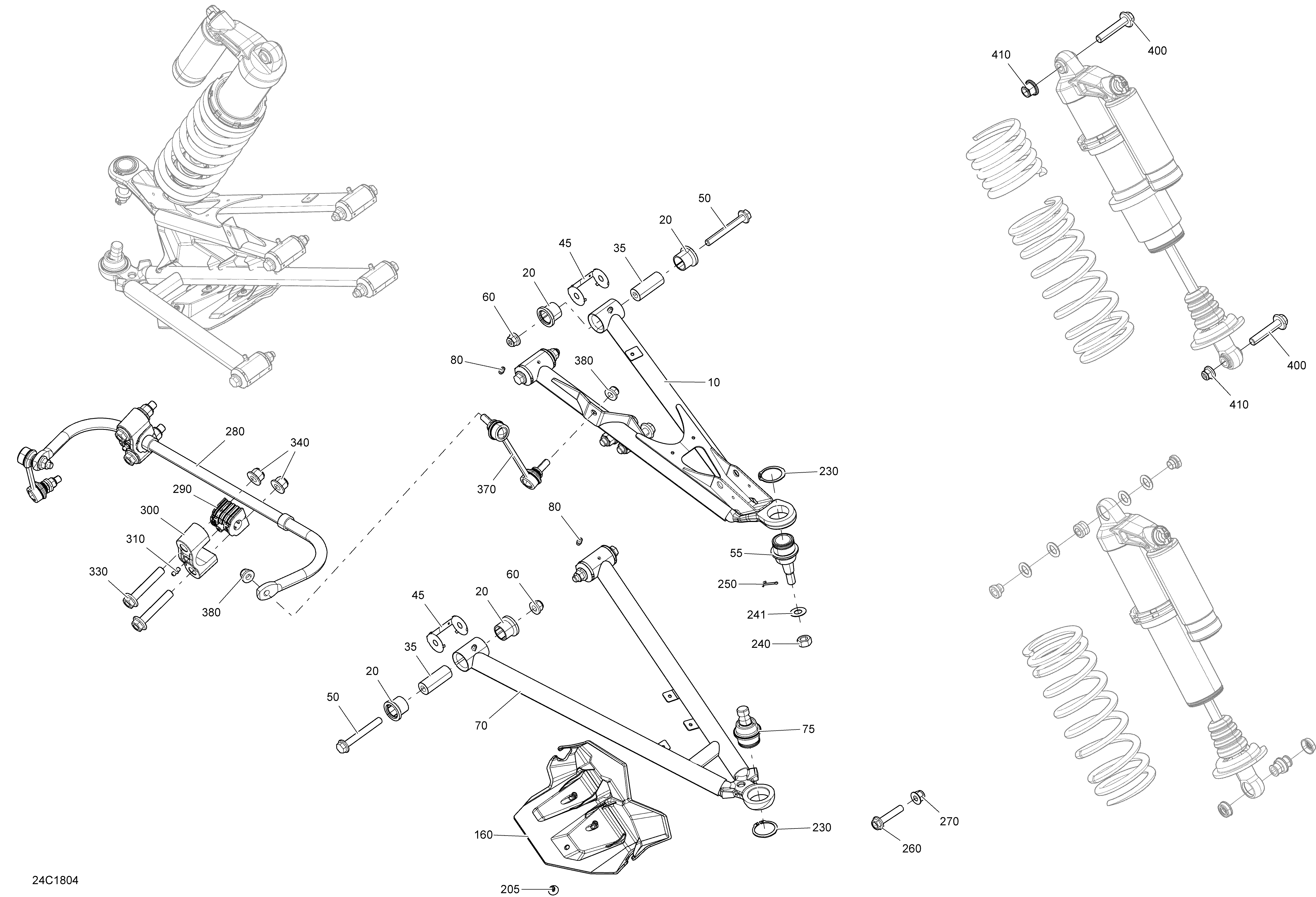

07- Front Suspension Maverick для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
10706202567 Front Suspension Arm LH Black. Package XC, XCDPSFront Suspension Arm LH Black. Package XC, XCDPS
-
10706202590 Front Suspension Arm LH Gulfstream Blue. Package XXC Gulfstream Blue Models. Includes 10 to 10aFront Suspension Arm LH Gulfstream Blue. Package XXC Gulfstream Blue Models. Includes 10 to 10a
-
10706202594 Front Suspension Arm LH Can-Am Red. Package DPS Bright White ModelsFront Suspension Arm LH Can-Am Red. Package DPS Bright White Models
-
10706202594 Front Suspension Arm LH Can-Am Red. Package DPS MAX Bright White ModelsFront Suspension Arm LH Can-Am Red. Package DPS MAX Bright White Models
-
10706202935 Yellow Sun. Front Left Upper Arm. Package XMR Carbon Black ModelsYellow Sun. Front Left Upper Arm. Package XMR Carbon Black Models
-
10706202935 Yellow Sun. Front Left Upper Arm. Package XMR MAX Carbon Black ModelsYellow Sun. Front Left Upper Arm. Package XMR MAX Carbon Black Models
-
10706203035 Suspension Arm. Package XXC Can-Am Red ModelsSuspension Arm. Package XXC Can-Am Red Models
-
10706202568 Front Suspension Arm RH Black. Package XC, XCDPSFront Suspension Arm RH Black. Package XC, XCDPS
-
10706202591 Front Suspension Arm RH Gulfstream Blue. Package XXC Gulfstream Blue Models. Includes 15 to 15aFront Suspension Arm RH Gulfstream Blue. Package XXC Gulfstream Blue Models. Includes 15 to 15a
-
10706202595 Front Suspension Arm RH Can-Am Red. Package DPS MAX Bright White ModelsFront Suspension Arm RH Can-Am Red. Package DPS MAX Bright White Models
-
10706202595 Front Suspension Arm RH Can-Am Red. Package DPS Bright White ModelsFront Suspension Arm RH Can-Am Red. Package DPS Bright White Models
-
10706202936 Yellow Sun. Front Right Upper Arm. Package XMR Carbon Black ModelsYellow Sun. Front Right Upper Arm. Package XMR Carbon Black Models
-
10706202936 Yellow Sun. Front Right Upper Arm. Package XMR MAX Carbon Black ModelsYellow Sun. Front Right Upper Arm. Package XMR MAX Carbon Black Models
-
10706203036 Suspension Arm. Package XXC Can-Am Red ModelsSuspension Arm. Package XXC Can-Am Red Models
-
20706201659 CushionCushion
-
35706201590 SleeveSleeve
-
45706201660 Wear PlateWear Plate
-
50207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
55706202044 Ball JointBall Joint
-
60233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
70706201727 RH Front Lower Arm. Package XXCRH Front Lower Arm. Package XXC
-
70706201727 RH Front Lower Arm. Package XC, XCDPSRH Front Lower Arm. Package XC, XCDPS
-
70706201862 RH Front Lower Arm. Package DPSRH Front Lower Arm. Package DPS
-
70706202967 RH Yellow Sun. Front Lower Arm. Package XMR Carbon Black Models. Includes 70 to 70aRH Yellow Sun. Front Lower Arm. Package XMR Carbon Black Models. Includes 70 to 70a
-
70706202967 RH Yellow Sun. Front Lower Arm. Package XMR MAX Carbon Black Models. Includes 70 to 70aRH Yellow Sun. Front Lower Arm. Package XMR MAX Carbon Black Models. Includes 70 to 70a
-
70706201726 LH Front Lower Arm. Package XXCLH Front Lower Arm. Package XXC
-
70706201726 LH Front Lower Arm. Package XC, XCDPSLH Front Lower Arm. Package XC, XCDPS
-
70706201861 LH Front Lower Arm. Package DPSLH Front Lower Arm. Package DPS
-
70706202966 LH Yellow Sun. Front Lower Arm. Package XMR Carbon Black Models. Includes 100 to 100aLH Yellow Sun. Front Lower Arm. Package XMR Carbon Black Models. Includes 100 to 100a
-
70706202966 LH Yellow Sun. Front Lower Arm. Package XMR MAX Carbon Black Models. Includes 100 to 100aLH Yellow Sun. Front Lower Arm. Package XMR MAX Carbon Black Models. Includes 100 to 100a
-
75706202045 Ball JointBall Joint
-
80408200700 Grease FittingGrease Fitting
-
160706202809 RH Joint ProtectorRH Joint Protector
-
160706202808 LH Joint ProtectorLH Joint Protector
-
205293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
260207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
270233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
280706202687 Stabilizer Bar Ass'yStabilizer Bar Ass'y
-
290706002535 CushionCushion
-
300706002303 ClampClamp
-
310408200700 Grease FittingGrease Fitting
-
330250000858 Hexagonal Flanged Screw M12 X 70Hexagonal Flanged Screw M12 X 70
-
340233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
370706202538 Stabilizer Bar Link LHStabilizer Bar Link LH
-
370706202539 Stabilizer Bar Link RHStabilizer Bar Link RH
-
380233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
400207626046 Hex. Flanged Screw M12 X 60Hex. Flanged Screw M12 X 60
-
410233221416 Elastic Flange Nut M12Elastic Flange Nut M12
