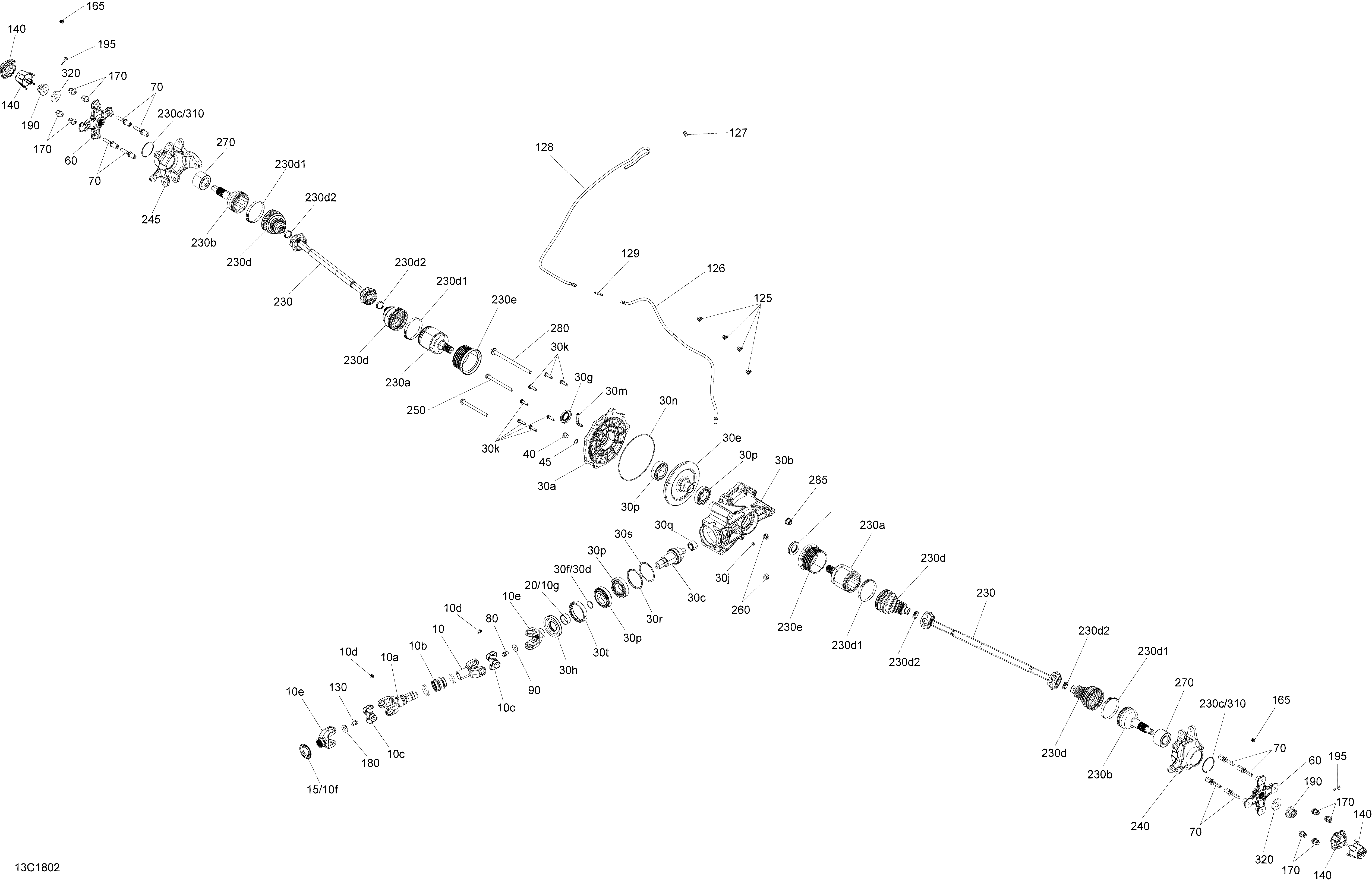

08- Rear Drive Maverick для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
10>10g703500994 Shaft Ass'y Kit. Includes 10 to 10gShaft Ass'y Kit. Includes 10 to 10g
-
10a703500994 DRIVE SHAFT ASS'YDRIVE SHAFT ASS'Y
-
10b715900118 Rubber BootRubber Boot
-
10c703500846 Universal Joint Ass'yUniversal Joint Ass'y
-
10d715900295 Grease FittingGrease Fitting
-
10e715900436 JointJoint
-
10f705501123 ProtectorProtector
-
10g705400036 Wear RingWear Ring
-
15705501123 ProtectorProtector
-
30>30t705502275 Final Drive Unit. Includes 30 to 30tFinal Drive Unit. Includes 30 to 30t
-
30a705502171 Rear CoverRear Cover
-
30b705502172 Pinion CoverPinion Cover
-
30c703500867 Pinion KitPinion Kit
-
30d705501554 O-RingO-Ring
-
30e703500868 Gear KitGear Kit
-
30f705501554 O-RingO-Ring
-
30g705501556 Oil SealOil Seal
-
30h705502276 Oil SealOil Seal
-
30j705501724 Plug DrainPlug Drain
-
30k705502063 ScrewScrew
-
30m705501584 Breather TubeBreather Tube
-
30n705501749 Oil SealOil Seal
-
30p703500869 Bearing KitBearing Kit
-
30q703500840 Needle BearingNeedle Bearing
-
30r703500839 Differential Shim KitDifferential Shim Kit
-
30s703500839 Differential Shim KitDifferential Shim Kit
-
30t705501740 NutNut
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
60705502223 Wheel HubWheel Hub
-
70250300060 Wheel StudWheel Stud
-
80250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
90250200014 Flat Washer M10Flat Washer M10
-
125710003168 Christmas Tree Tie-Rap 200 mmChristmas Tree Tie-Rap 200 mm
-
126293830177 HoseHose
-
127414227300 Clip. Package XMRClip. Package XMR
-
128415080200 Hose, Polyurethane. Package XMRHose, Polyurethane. Package XMR
-
129293710039 Straight Fitting. Package XMRStraight Fitting. Package XMR
-
130250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
140705400928 Wheel Cap. All Package Except XMRWheel Cap. All Package Except XMR
-
140705401541 Wheel Cap. Package XMRWheel Cap. Package XMR
-
165293000110 Valve CapValve Cap
-
170250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100193 Castle Nut M20Castle Nut M20
-
195250400084 Cotter PinCotter Pin
-
230>230e705502413 CV Joint. Package DPS. Includes 230 to 230eCV Joint. Package DPS. Includes 230 to 230e
-
230>230e705502414 CV Joint. Package XMR. Includes 230 to 230eCV Joint. Package XMR. Includes 230 to 230e
-
230>230e705502415 CV Joint. Package XCDPS. Includes 230 to 230eCV Joint. Package XCDPS. Includes 230 to 230e
-
230>230e705502415 CV Joint. Package XC. Includes 230 to 230eCV Joint. Package XC. Includes 230 to 230e
-
230>230e705502415 CV Joint. Package XXC. Includes 230 to 230eCV Joint. Package XXC. Includes 230 to 230e
-
230a715900432 Plunging JointPlunging Joint
-
230b715900429 CV JointCV Joint
-
230c705501781 CirclipCirclip
-
230d705501864 Boot KitBoot Kit
-
230d1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230d2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
230e705501841 Heat DissipatorHeat Dissipator
-
240705501730 LH Rear KnuckleLH Rear Knuckle
-
245705501731 RH Rear KnuckleRH Rear Knuckle
-
250230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
280230629087 Hex. Flanged Screw M12 X 190Hex. Flanged Screw M12 X 190
-
285233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
310293370019 CirclipCirclip
-
320250200170 Conical Spring Washer M20Conical Spring Washer M20
