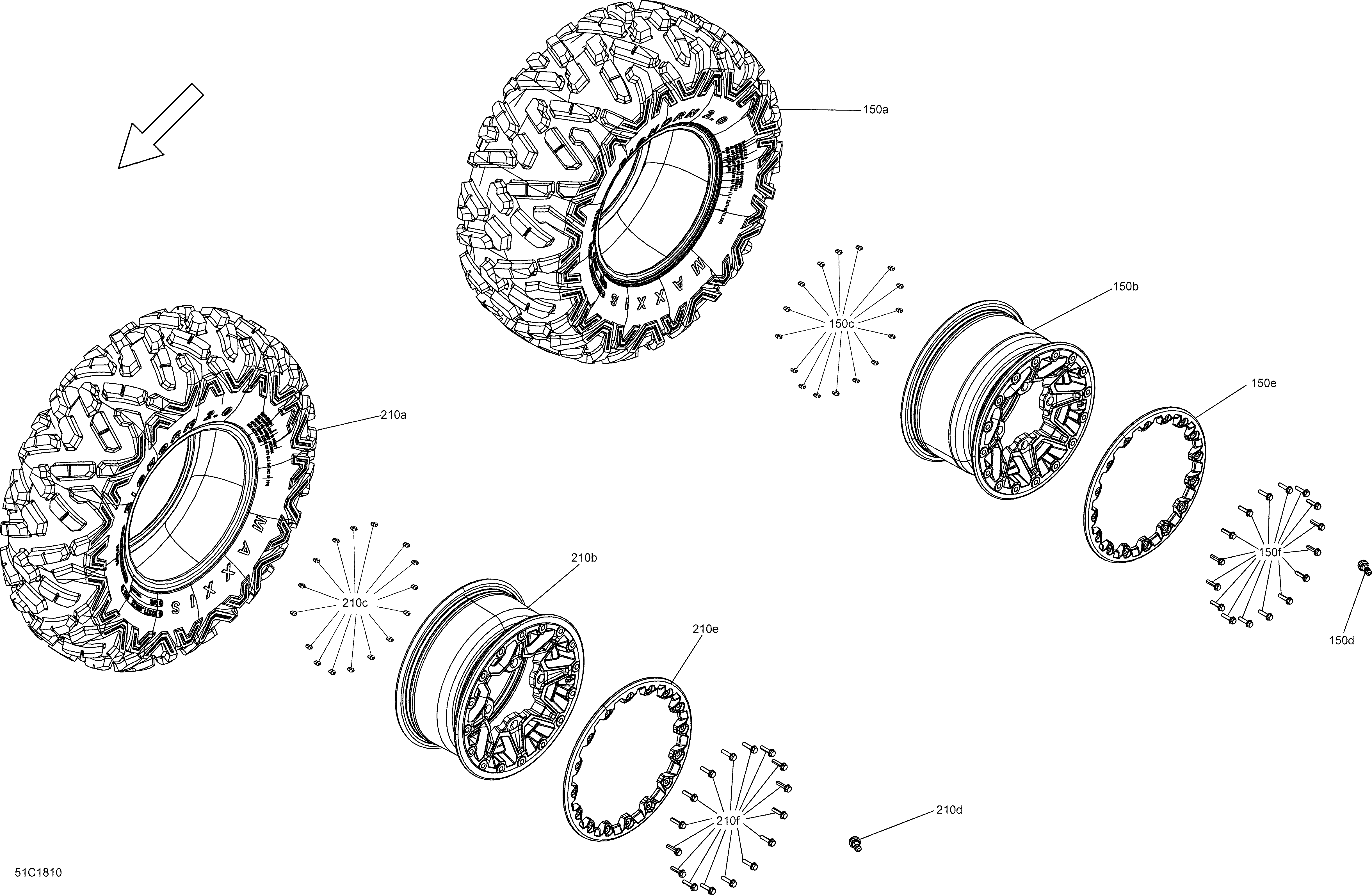

07- Wheels And Tires Maverick - Package XXC для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
210a705401385 Front Tire Maxxis 27X9X12Front Tire Maxxis 27X9X12
-
210b705401678 Black RimBlack Rim
-
210c293450317 InsertInsert
-
210d705400193 Rim Valve With CapRim Valve With Cap
-
210e705401695 Blue Painted Reinforcement DiskBlue Painted Reinforcement Disk
-
210f250000787 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
150a705501817 Rear Tire Maxxis 27X11X12Rear Tire Maxxis 27X11X12
-
150b705502244 Black RimBlack Rim
-
150c293450317 InsertInsert
-
150d705400193 Rim Valve With CapRim Valve With Cap
-
150e705401695 Blue Painted Reinforcement DiskBlue Painted Reinforcement Disk
-
150f250000787 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
