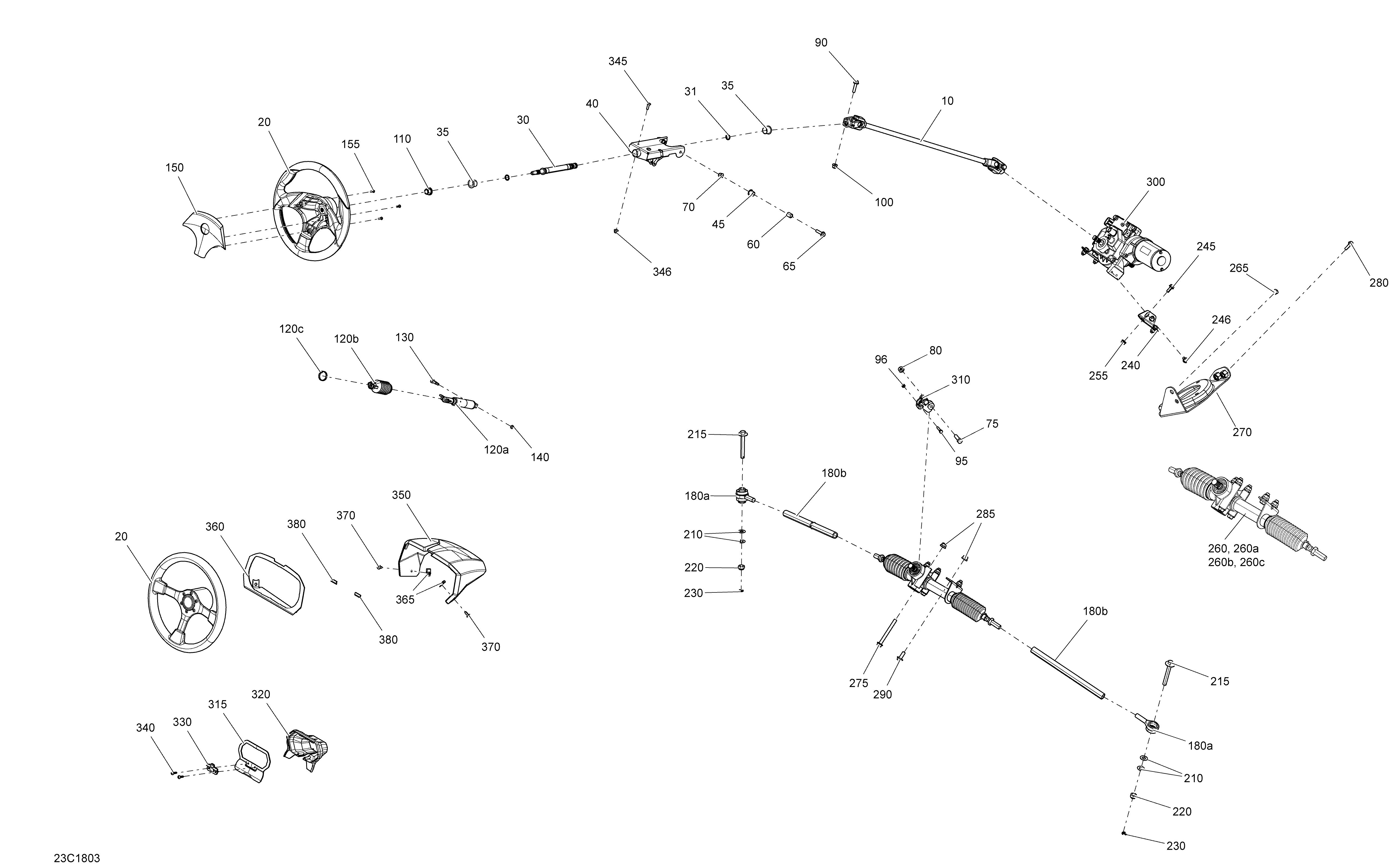

07- Steering Maverick - All Models Except Package XC для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
10709401716 Steering Shaft Ass'y. Package DPS, XCDPSSteering Shaft Ass'y. Package DPS, XCDPS
-
10709401716 Steering Shaft Ass'y. Package XXC, XMRSteering Shaft Ass'y. Package XXC, XMR
-
20709400650 Steering Wheel. Package DPSSteering Wheel. Package DPS
-
20709400650 Steering Wheel. Package XCDPSSteering Wheel. Package XCDPS
-
20>20a715001134 Steering Wheel Kit. Package XXC, XMR. Includes 20 to 20aSteering Wheel Kit. Package XXC, XMR. Includes 20 to 20a
-
20a715500341 Cap. Package XXC, XMRCap. Package XXC, XMR
-
30709401167 Steering ShaftSteering Shaft
-
31293300144 O-RingO-Ring
-
35415108000 CushionCushion
-
40709401391 Painted Steering Wheel SupportPainted Steering Wheel Support
-
45705600799 BushingBushing
-
60293900106 BushingBushing
-
65207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
70233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
75207103586 Hex. Screw M10 X 35. Package XXC, XMRHex. Screw M10 X 35. Package XXC, XMR
-
75207103586 Hex. Screw M10 X 35. Package DPS, XCDPSHex. Screw M10 X 35. Package DPS, XCDPS
-
80232500416 Elastic Stop Nut M10. Package DPS, XCDPSElastic Stop Nut M10. Package DPS, XCDPS
-
80232500416 Elastic Stop Nut M10. Package XXC, XMRElastic Stop Nut M10. Package XXC, XMR
-
90207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
95207063044 Hex. Screw M6 X 30. Package XXC, XMRHex. Screw M6 X 30. Package XXC, XMR
-
95207063044 Hex. Screw M6 X 30. Package DPS, XCDPSHex. Screw M6 X 30. Package DPS, XCDPS
-
96232561414 Elastic Stop Nut M6. Package XXC, XMRElastic Stop Nut M6. Package XXC, XMR
-
96232561414 Elastic Stop Nut M6. Package DPS, XCDPSElastic Stop Nut M6. Package DPS, XCDPS
-
100233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
110233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
120a709400656 Adjustment CylinderAdjustment Cylinder
-
120b709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
120c414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
130250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
140232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
150709400780 Steering Center. Package DPSSteering Center. Package DPS
-
150709400780 Steering Center. Package XCDPSSteering Center. Package XCDPS
-
155250000723 Phillips Screw K40 X 16. Package XCDPSPhillips Screw K40 X 16. Package XCDPS
-
155250000723 Phillips Screw K40 X 16. Package DPSPhillips Screw K40 X 16. Package DPS
-
180a709401125 Ball JointBall Joint
-
180b709401427 Tie RodTie Rod
-
180c715900238 Steering Rode Nut. Not IllustratedSteering Rode Nut. Not Illustrated
-
210250200086 Flat WasherFlat Washer
-
215250000657 Hexagonal Screw M12 X 88Hexagonal Screw M12 X 88
-
220232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
230211400017 Cotter PinCotter Pin
-
240709401704 DPS Support. Package DPS, XCDPSDPS Support. Package DPS, XCDPS
-
240709401704 DPS Support. Package XXC, XMRDPS Support. Package XXC, XMR
-
245207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Package XXC, XMRHex. Flanged Screw M8 X 20, Scotch Grip. Package XXC, XMR
-
245207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Package DPS, XCDPSHex. Flanged Screw M8 X 20, Scotch Grip. Package DPS, XCDPS
-
255233281414 Hex. Flanged Elastic Nut M8. Package XXC, XMRHex. Flanged Elastic Nut M8. Package XXC, XMR
-
255233281414 Hex. Flanged Elastic Nut M8. Package DPS, XCDPSHex. Flanged Elastic Nut M8. Package DPS, XCDPS
-
260709401610 Rack and Pinion Steering. Package DPS, XCDPS. Includes 260 to 260cRack and Pinion Steering. Package DPS, XCDPS. Includes 260 to 260c
-
260a715900235 Boot Kit, Pinion Side. Package DPS, XCDPSBoot Kit, Pinion Side. Package DPS, XCDPS
-
260b715900236 Boot Kit, Tube Side. Package DPS, XCDPSBoot Kit, Tube Side. Package DPS, XCDPS
-
260c715900238 Steering Rode Nut. Package DPS, XCDPSSteering Rode Nut. Package DPS, XCDPS
-
260709401610 Rack and Pinion Steering. Package XXC, XMR. Includes 260 to 260cRack and Pinion Steering. Package XXC, XMR. Includes 260 to 260c
-
260a715900235 Boot Kit, Pinion Side. Package XXC, XMRBoot Kit, Pinion Side. Package XXC, XMR
-
260b715900236 Boot Kit, Tube Side. Package XXC, XMRBoot Kit, Tube Side. Package XXC, XMR
-
260c715900238 Steering Rode Nut. Package XXC, XMRSteering Rode Nut. Package XXC, XMR
-
265233281414 Hex. Flanged Elastic Nut M8. Package XXC, XMRHex. Flanged Elastic Nut M8. Package XXC, XMR
-
265233281414 Hex. Flanged Elastic Nut M8. Package DPS, XCDPSHex. Flanged Elastic Nut M8. Package DPS, XCDPS
-
270709402176 Power Steering Support Ass'y. Package DPS, XCDPSPower Steering Support Ass'y. Package DPS, XCDPS
-
270709402176 Power Steering Support Ass'y. Package XXC, XMRPower Steering Support Ass'y. Package XXC, XMR
-
275230600046 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
280207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Package DPS, XCDPSHex. Flanged Screw M8 X 20, Scotch Grip. Package DPS, XCDPS
-
280207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Package XXC, XMRHex. Flanged Screw M8 X 20, Scotch Grip. Package XXC, XMR
-
285233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
290207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
300709401616 Direction Assis* Power Steering. Package DPS, XCDPSDirection Assis* Power Steering. Package DPS, XCDPS
-
300709401616 Direction Assis* Power Steering. Package XXC, XMRDirection Assis* Power Steering. Package XXC, XMR
-
310709401719 Coupling. Package XXC, XMRCoupling. Package XXC, XMR
-
310709401719 Coupling. Package DPS, XCDPSCoupling. Package DPS, XCDPS
-
315709400760 Cluster Support. Package XCDPSCluster Support. Package XCDPS
-
315709400760 Cluster Support. Package DPSCluster Support. Package DPS
-
320709400514 Speedometer Cover. Package XC, XCDPSSpeedometer Cover. Package XC, XCDPS
-
320709400514 Speedometer Cover. Package DPSSpeedometer Cover. Package DPS
-
330709400573 Latch Indicator Cover. Package DPSLatch Indicator Cover. Package DPS
-
330709400573 Latch Indicator Cover. Package XCDPSLatch Indicator Cover. Package XCDPS
-
340250000760 Torx Screw Truss Head K50X20 T20. Package DPSTorx Screw Truss Head K50X20 T20. Package DPS
-
340250000760 Torx Screw Truss Head K50X20 T20. Package XCDPSTorx Screw Truss Head K50X20 T20. Package XCDPS
-
345250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
346233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
350707900124 Upper Cluster Cover. Package XXC, XMRUpper Cluster Cover. Package XXC, XMR
-
360707900013 Cluster Support. Package XXC, XMRCluster Support. Package XXC, XMR
-
365250000048 Panel Nut M6 X 1.0. Package XXC, XMRPanel Nut M6 X 1.0. Package XXC, XMR
-
370250000721 Torx Truss Screw M6 X 16. Package XXC, XMRTorx Truss Screw M6 X 16. Package XXC, XMR
-
380293250087 Gasket, Neoprene. Package XXC, XMRGasket, Neoprene. Package XXC, XMR
