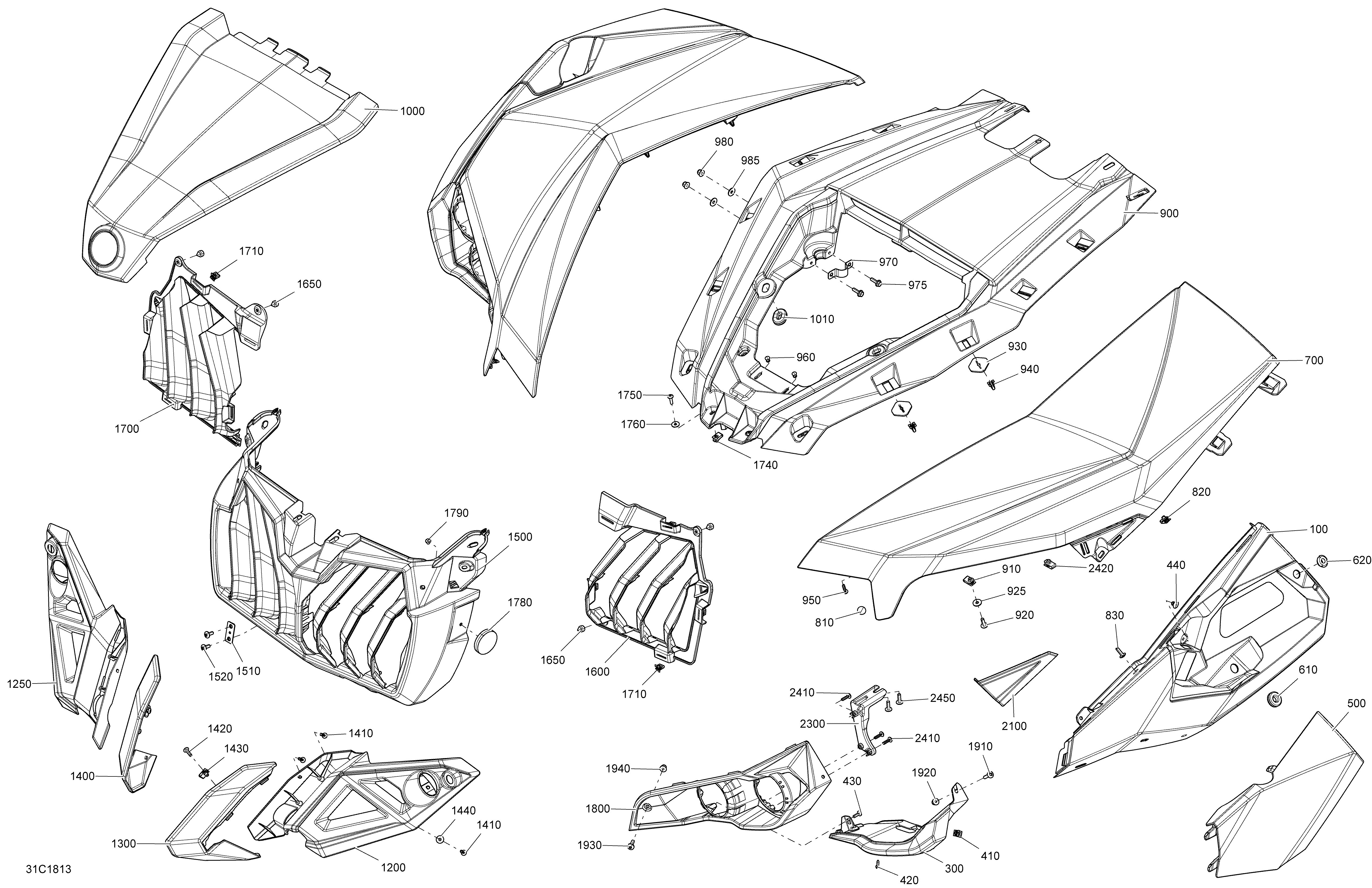

09- Body Front Part Maverick - Gulfstream Blue Models для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
100705012258 Gulfstream Blue Left Front Fender. Gulfstream Blue ModelsGulfstream Blue Left Front Fender. Gulfstream Blue Models
-
100705012259 Gulfstream Blue Right Front Fender. Gulfstream Blue ModelsGulfstream Blue Right Front Fender. Gulfstream Blue Models
-
300705009672 Gulfstream Blue LH Fender Trim. Gulfstream Blue ModelsGulfstream Blue LH Fender Trim. Gulfstream Blue Models
-
300705009673 Gulfstream Blue RH Fender Trim. Gulfstream Blue ModelsGulfstream Blue RH Fender Trim. Gulfstream Blue Models
-
410517302785 ClipClip
-
420250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
430250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
440293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
500705012260 Gulfstream Blue Left Cover Fender . Gulfstream Blue ModelsGulfstream Blue Left Cover Fender . Gulfstream Blue Models
-
500705012261 Gulfstream Blue Right Cover Fender. Gulfstream Blue ModelsGulfstream Blue Right Cover Fender. Gulfstream Blue Models
-
610517303756 GrommetGrommet
-
620705003264 GrommetGrommet
-
700705008945 Deep Black LH Fixe Hood. Gulfstream Blue ModelsDeep Black LH Fixe Hood. Gulfstream Blue Models
-
700705008946 Deep Black RH Fixe Hood. Gulfstream Blue ModelsDeep Black RH Fixe Hood. Gulfstream Blue Models
-
810414644300 DartDart
-
820250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
830250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
900705005821 Fixe Center Hood. Package XXCFixe Center Hood. Package XXC
-
910250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
920250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
925234062670 Flat Washer, StainlessFlat Washer, Stainless
-
930705003841 Support PlateSupport Plate
-
940517302785 ClipClip
-
950250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
960293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
970705006623 ClampClamp
-
975207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
980233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
985234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1000705007060 Black Removable Hood. Gulfstream Blue ModelsBlack Removable Hood. Gulfstream Blue Models
-
1010705005156 Oval WasherOval Washer
-
1200705007497 LH Bumper GrillLH Bumper Grill
-
1250705007498 RH Bumper GrillRH Bumper Grill
-
1300705009711 Gulfstream Blue LH Bumper Cap. Gulfstream Blue ModelsGulfstream Blue LH Bumper Cap. Gulfstream Blue Models
-
1400705009712 Gulfstream Blue RH Bumper Cap. Gulfstream Blue ModelsGulfstream Blue RH Bumper Cap. Gulfstream Blue Models
-
1410250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1420250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
1430250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
1440250200025 Washer M5Washer M5
-
1500705005784 Front Radiator GrillFront Radiator Grill
-
1510705006635 Radiator Grill BracketRadiator Grill Bracket
-
1520250000721 Torx ScrewTorx Screw
-
1600705005983 LH Rear Radiator GrillLH Rear Radiator Grill
-
1650293830005 Rubber BumperRubber Bumper
-
1700705005984 RH Rear Radiator GrillRH Rear Radiator Grill
-
1710517302785 ClipClip
-
1740250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
1750250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
1760250200025 Washer M5Washer M5
-
1780705011222 Amber ReflectorAmber Reflector
-
1800705004508 LH Front FaciaLH Front Facia
-
1800705004509 RH Front FaciaRH Front Facia
-
1910250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
1920233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1930250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1940233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2100705005992 LH Front Facia TrimLH Front Facia Trim
-
2100705005993 RH Front Facia TrimRH Front Facia Trim
-
2300705006078 LH Front Facia SupportLH Front Facia Support
-
2300705006079 RH Front Facia SupportRH Front Facia Support
-
2410250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
2420250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2450250000722 Torx Screw M6 X 20Torx Screw M6 X 20
