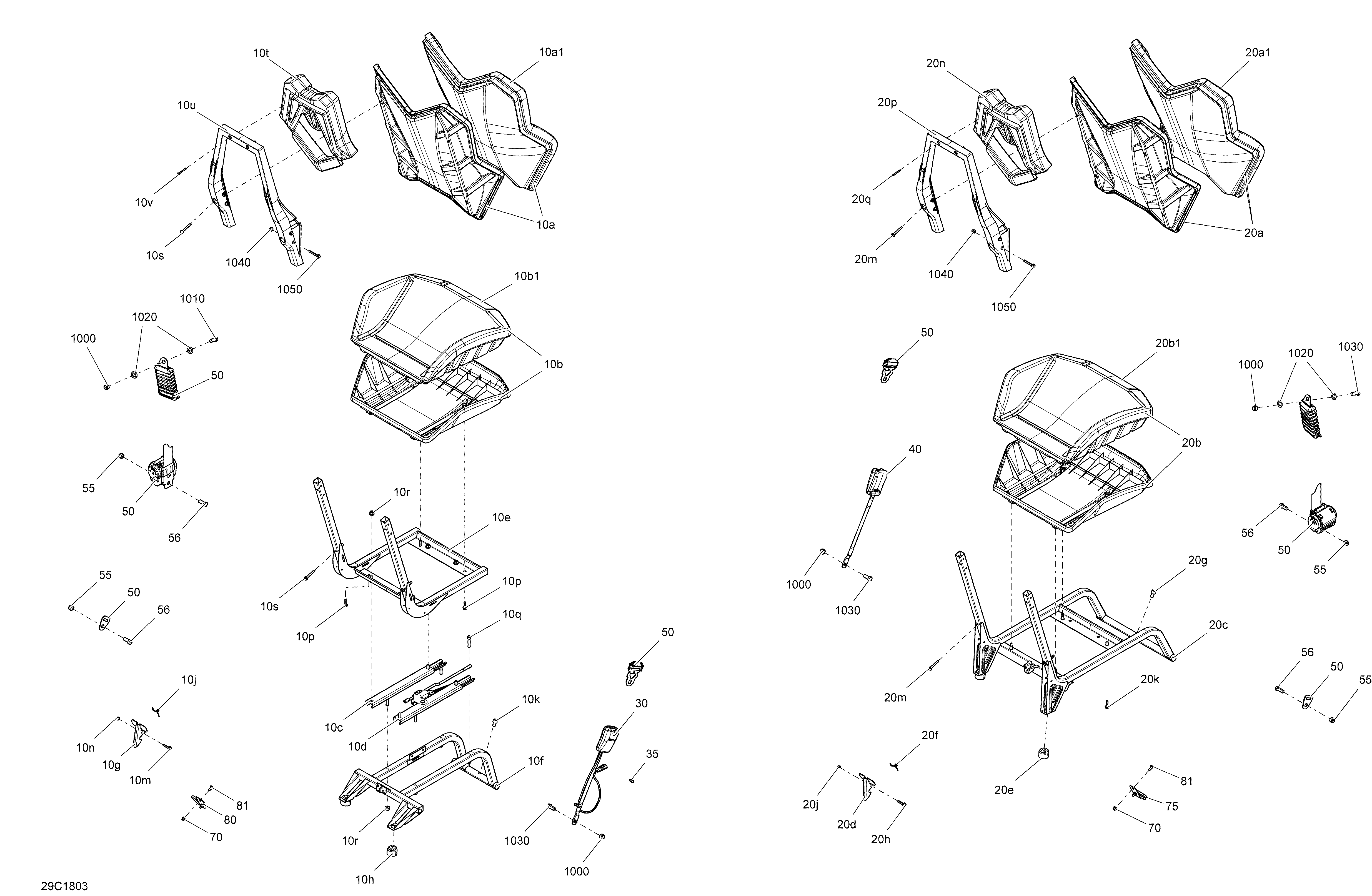

09- Seat Maverick Non MAX для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
10a708001316 Backrest Assembly. Package XCBackrest Assembly. Package XC
-
10a708001316 Backrest Assembly. Package DPSBackrest Assembly. Package DPS
-
10a708002246 Backrest Ass'y Black. Package XCDPSBackrest Ass'y Black. Package XCDPS
-
10a708002621 Backrest. Package XXC Can-Am Red ModelsBackrest. Package XXC Can-Am Red Models
-
10a708002621 Backrest. Package XMR Deep Black ModelsBackrest. Package XMR Deep Black Models
-
10a708002626 Backrest. Package XXC Gulfstream Blue ModelsBackrest. Package XXC Gulfstream Blue Models
-
10a708002629 Backrest. Package XMR Carbon Black ModelsBackrest. Package XMR Carbon Black Models
-
10a1708000675 Backrest Cover. Package XCBackrest Cover. Package XC
-
10a1708000675 Backrest Cover. Package DPSBackrest Cover. Package DPS
-
10a1708002248 Backrest Cover Black. Package XCDPSBackrest Cover Black. Package XCDPS
-
10a1708002622 Cover. Package XXC Can-Am Red ModelsCover. Package XXC Can-Am Red Models
-
10a1708002622 Cover. Package XMR Deep Black ModelsCover. Package XMR Deep Black Models
-
10a1708002627 Cover. Package XXC Gulfstream Blue ModelsCover. Package XXC Gulfstream Blue Models
-
10a1708002630 Cover. Package XMR Carbon Black ModelsCover. Package XMR Carbon Black Models
-
10b703500943 Cushion Ass'y. Package XCCushion Ass'y. Package XC
-
10b703500943 Cushion Ass'y. Package DPSCushion Ass'y. Package DPS
-
10b708002247 Cushion Ass'y Black. Package XCDPSCushion Ass'y Black. Package XCDPS
-
10b708002267 Cushion Assembly Can-Am Red. Package XXC Can-Am Red ModelsCushion Assembly Can-Am Red. Package XXC Can-Am Red Models
-
10b708002267 Cushion Assembly Can-Am Red. Package XMR Deep Black ModelsCushion Assembly Can-Am Red. Package XMR Deep Black Models
-
10b708002273 Cushion Ass'y Gulfstream Blue. Package XXC Gulfstream Blue ModelsCushion Ass'y Gulfstream Blue. Package XXC Gulfstream Blue Models
-
10b708002631 Cushion. Package XMR Carbon Black ModelsCushion. Package XMR Carbon Black Models
-
10b1708001103 Seat Cover. Package XCSeat Cover. Package XC
-
10b1708001103 Seat Cover. Package DPSSeat Cover. Package DPS
-
10b1708002249 Cushion Cover Black. Package XCDPSCushion Cover Black. Package XCDPS
-
10b1708002268 Seat Cover Can-Am Red. Package XXC Can-Am Red ModelsSeat Cover Can-Am Red. Package XXC Can-Am Red Models
-
10b1708002268 Seat Cover Can-Am Red. Package XMR Deep Black ModelsSeat Cover Can-Am Red. Package XMR Deep Black Models
-
10b1708002274 Seat Cover Gulfstream Blue. Package XXC Gulfstream Blue ModelsSeat Cover Gulfstream Blue. Package XXC Gulfstream Blue Models
-
10b1708002632 Cover. Package XMR Carbon Black ModelsCover. Package XMR Carbon Black Models
-
10c708000848 LH RailLH Rail
-
10d708001739 RH RailRH Rail
-
10e708001356 Operator Seat FrameOperator Seat Frame
-
10f708000667 Seat MemberSeat Member
-
10g708001355 Seat LatchSeat Latch
-
10h708001671 Rubber BumperRubber Bumper
-
10j708000921 SpringSpring
-
10k205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
10m207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
10n232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
10p207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
10q205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
10r233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10s250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
10t708001074 Head RestHead Rest
-
10u708001245 Seat SupportSeat Support
-
10v250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
20a708001316 Backrest Assembly. Package DPSBackrest Assembly. Package DPS
-
20a708001316 Backrest Assembly. Package XCBackrest Assembly. Package XC
-
20a708002246 Backrest Ass'y Black. Package XCDPSBackrest Ass'y Black. Package XCDPS
-
20a708002621 Backrest. Package XMR Deep Black ModelsBackrest. Package XMR Deep Black Models
-
20a708002621 Backrest. Package XXC Can-Am Red ModelsBackrest. Package XXC Can-Am Red Models
-
20a708002626 Backrest. Package XXC Gulfstream Blue ModelsBackrest. Package XXC Gulfstream Blue Models
-
20a708002629 Backrest. Package XMR Carbon Black ModelsBackrest. Package XMR Carbon Black Models
-
20a1708000675 Backrest Cover. Package DPSBackrest Cover. Package DPS
-
20a1708000675 Backrest Cover. Package XCBackrest Cover. Package XC
-
20a1708002248 Backrest Cover Black. Package XCDPSBackrest Cover Black. Package XCDPS
-
20a1708002622 Cover. Package XMR Deep Black ModelsCover. Package XMR Deep Black Models
-
20a1708002622 Cover. Package XXC Can-Am Red ModelsCover. Package XXC Can-Am Red Models
-
20a1708002627 Cover. Package XXC Gulfstream Blue ModelsCover. Package XXC Gulfstream Blue Models
-
20a1708002630 Cover. Package XMR Carbon Black ModelsCover. Package XMR Carbon Black Models
-
20b703500943 Cushion Ass'y. Package DPSCushion Ass'y. Package DPS
-
20b703500943 Cushion Ass'y. Package XCCushion Ass'y. Package XC
-
20b708002247 Cushion Ass'y Black. Package XCDPSCushion Ass'y Black. Package XCDPS
-
20b708002267 Cushion Assembly Can-Am Red. Package XMR Deep Black ModelsCushion Assembly Can-Am Red. Package XMR Deep Black Models
-
20b708002267 Cushion Assembly Can-Am Red. Package XXC Can-Am Red ModelsCushion Assembly Can-Am Red. Package XXC Can-Am Red Models
-
20b708002273 Cushion Ass'y Gulfstream Blue. Package XXC Gulfstream Blue ModelsCushion Ass'y Gulfstream Blue. Package XXC Gulfstream Blue Models
-
20b708002631 Cushion. Package XMR Carbon Black ModelsCushion. Package XMR Carbon Black Models
-
20b1708001103 Seat Cover. Package DPSSeat Cover. Package DPS
-
20b1708001103 Seat Cover. Package XCSeat Cover. Package XC
-
20b1708002249 Cushion Cover Black. Package XCDPSCushion Cover Black. Package XCDPS
-
20b1708002268 Seat Cover Can-Am Red. Package XMR Deep Black ModelsSeat Cover Can-Am Red. Package XMR Deep Black Models
-
20b1708002268 Seat Cover Can-Am Red. Package XXC Can-Am Red ModelsSeat Cover Can-Am Red. Package XXC Can-Am Red Models
-
20b1708002274 Seat Cover Gulfstream Blue. Package XXC Gulfstream Blue ModelsSeat Cover Gulfstream Blue. Package XXC Gulfstream Blue Models
-
20b1708002632 Cover. Package XMR Carbon Black ModelsCover. Package XMR Carbon Black Models
-
20c708001357 Passenger Seat FramePassenger Seat Frame
-
20d708001355 Seat LatchSeat Latch
-
20e708001671 Rubber BumperRubber Bumper
-
20f708000921 SpringSpring
-
20g205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
20h207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
20j232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
20k207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
20m250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
20n708001074 Head RestHead Rest
-
20p708001245 Seat SupportSeat Support
-
20q250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
30708002061 Driver Buckle SideDriver Buckle Side
-
35293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
40708002062 Passenger Buckle SidePassenger Buckle Side
-
50708002644 Safety BeltSafety Belt
-
55250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
56250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
70250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
75708002303 Retaining Rod RHRetaining Rod RH
-
80708002302 Retaining Rod LHRetaining Rod LH
-
81250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
1000250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
1010708000890 Safety Belt ScrewSafety Belt Screw
-
1020708000891 Position WasherPosition Washer
-
1030250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
1040233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
1050250000672 Hex. Flange Screw M6Hex. Flange Screw M6
