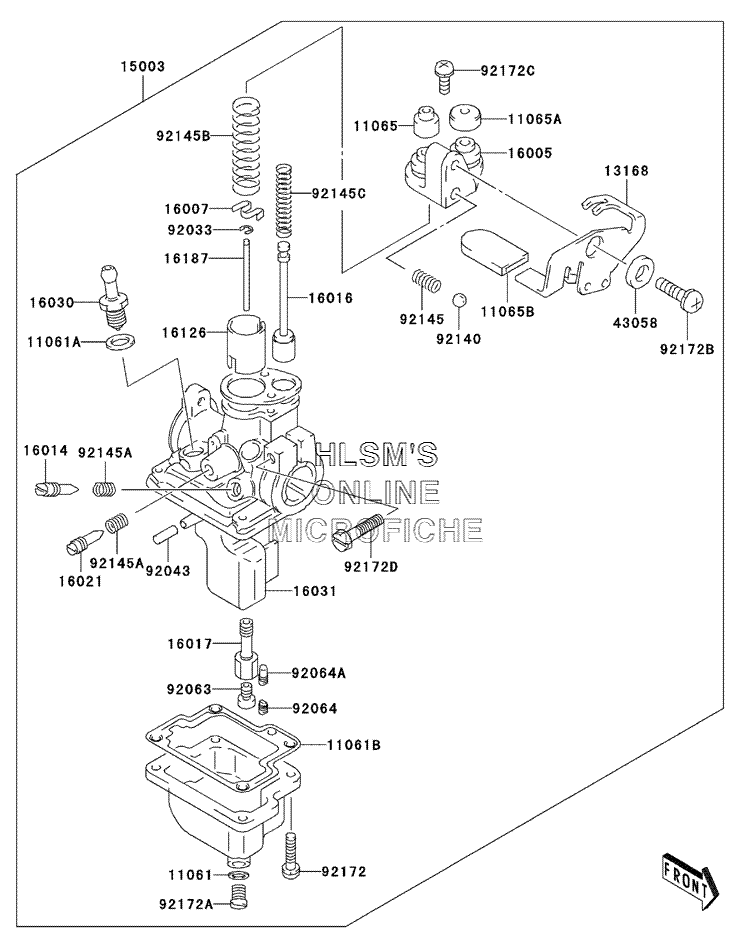

CARBURETOR для Kawasaki KDX 50 - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S048 GASKETGASKET
-
11061A11061-S049 GASKETGASKET
-
11061B11061-S080 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
1106511065-S020 CAPCAP
-
11065A11065-S021 CAP, STARTERCAP, STARTER
-
11065B11065-S043 CAP, LEVERCAP, LEVER
-
1316813168-S006 LEVER, STARTERLEVER, STARTER
-
1500315003-S009 CARBURETOR, ASSY.CARBURETOR, ASSY.
-
1600516005-S009 TOP, CHAMBERTOP, CHAMBER
-
1600716007-S007 SEAT, SPRINGSEAT, SPRING
-
1601416014-S004 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-S004 PLUNGERPLUNGER
-
1601716017-S006 JET, NEEDLE, E, 6JET, NEEDLE, E, 6
-
1602116021-S003 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1603016030-S007 VALVE, FLOATVALVE, FLOAT
-
1603116031-S004 FLOATFLOAT
-
1612616126-S011 VALVE, CA3.0VALVE, CA3.0
-
1618716187-S008 NEEDLE, JET, 3D23, 3NEEDLE, JET, 3D23, 3
-
4305843058-S004 RINGRING
-
9203392033-S025 RING, SNAP, NEEDLERING, SNAP, NEEDLE
-
9204392043-S027 PINPIN
-
9206392063-S009 JET, MAIN, #56.3JET, MAIN, #56.3
-
9206492064-S004 JET, PILOT, #0.38JET, PILOT, #0.38
-
92064A92064-S005 JET, PILOT, #15JET, PILOT, #15
-
9214092140-S002 BALLBALL
-
9214592145-S012 SPRING, STARTER SHAFTSPRING, STARTER SHAFT
-
92145A92145-S060 SPRINGSPRING
-
92145B92145-S112 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
92145C92145-S113 SPRINGSPRING
-
9217292172-S121 SCREWSCREW
-
92172A92172-S124 SCREWSCREW
-
92172B92172-S126 SCREWSCREW
-
92172C92172-S157 SCREWSCREW
-
92172D92172-S246 SCREWSCREW
