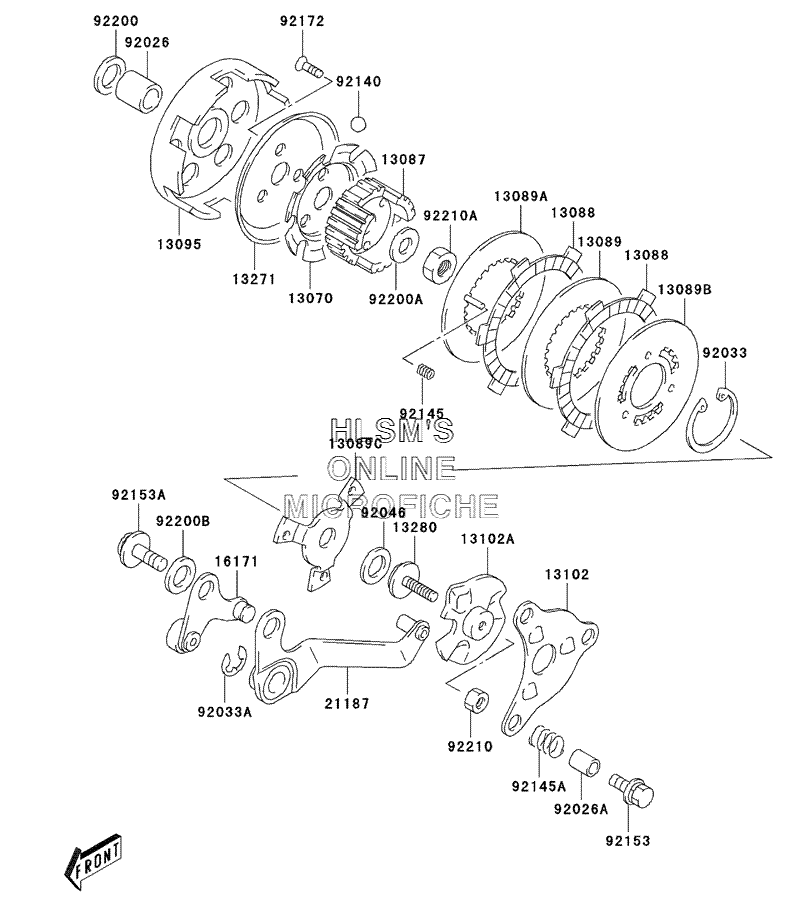

CLUTCH для Kawasaki KDX 50 - 2004 года выпуска
-
№АртикулНазвание
-
1307013070-S014 GUIDE, CLUTCH BALLGUIDE, CLUTCH BALL
-
1308713087-S004 HUB, CLUTCHHUB, CLUTCH
-
1308813088-S005 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-S004 PLATE, CLUTCHPLATE, CLUTCH
-
13089A13089-S005 PLATE, CLUTCH, CLUTCH INNERPLATE, CLUTCH, CLUTCH INNER
-
13089B13089-S006 PLATE, CLUTCH, OUTERPLATE, CLUTCH, OUTER
-
13089C13089-S007 PLATE, CLUTCH, CLUTCH PRESSUREPLATE, CLUTCH, CLUTCH PRESSURE
-
1309513095-S007 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310213102-S004 RELEASE, COMP, CLUTCHRELEASE, COMP, CLUTCH
-
13102A13102-S005 RELEASE, COMP, CLUTCHRELEASE, COMP, CLUTCH
-
1327113271-S055 PLATE, CLUTCH BALLPLATE, CLUTCH BALL
-
1328013280-S029 HOLDER, CLUTCH PUSHHOLDER, CLUTCH PUSH
-
1617116171-S001 LINK, RELEASE ARMLINK, RELEASE ARM
-
2118721187-S006 ARM, ASSY., CLUTCH RELEASE PLATEARM, ASSY., CLUTCH RELEASE PLATE
-
9202692026-S056 SPACER, DRIVEN GEARSPACER, DRIVEN GEAR
-
92026A92026-S112 SPACER, RELEASE PLATE SPRINGSPACER, RELEASE PLATE SPRING
-
9203392033-S043 RING, SNAP, CLUTCH SLEEVE HUBRING, SNAP, CLUTCH SLEEVE HUB
-
92033A92033-S044 RING, SNAP, RELEASE PLATE ARMRING, SNAP, RELEASE PLATE ARM
-
9204692046-S022 BEARING, NEEDLEBEARING, NEEDLE
-
9214092140-S003 BALL, OIL CHECK VALVEBALL, OIL CHECK VALVE
-
9214592145-S114 SPRINGSPRING
-
92145A92145-S115 SPRING, CLUTCH RELEASE PLATESPRING, CLUTCH RELEASE PLATE
-
9215392153-S013 BOLTBOLT
-
92153A92153-S316 BOLT, 8X17BOLT, 8X17
-
9217292172-S012 SCREWSCREW
-
9220092200-S085 WASHER, DRIVEN GEARWASHER, DRIVEN GEAR
-
92200A92200-S087 WASHER, CLUTCHWASHER, CLUTCH
-
92200B92200-S165 WASHER, 8X16X1.0WASHER, 8X16X1.0
-
9221092210-S001 NUTNUT
-
92210A92210-S116 NUTNUT
