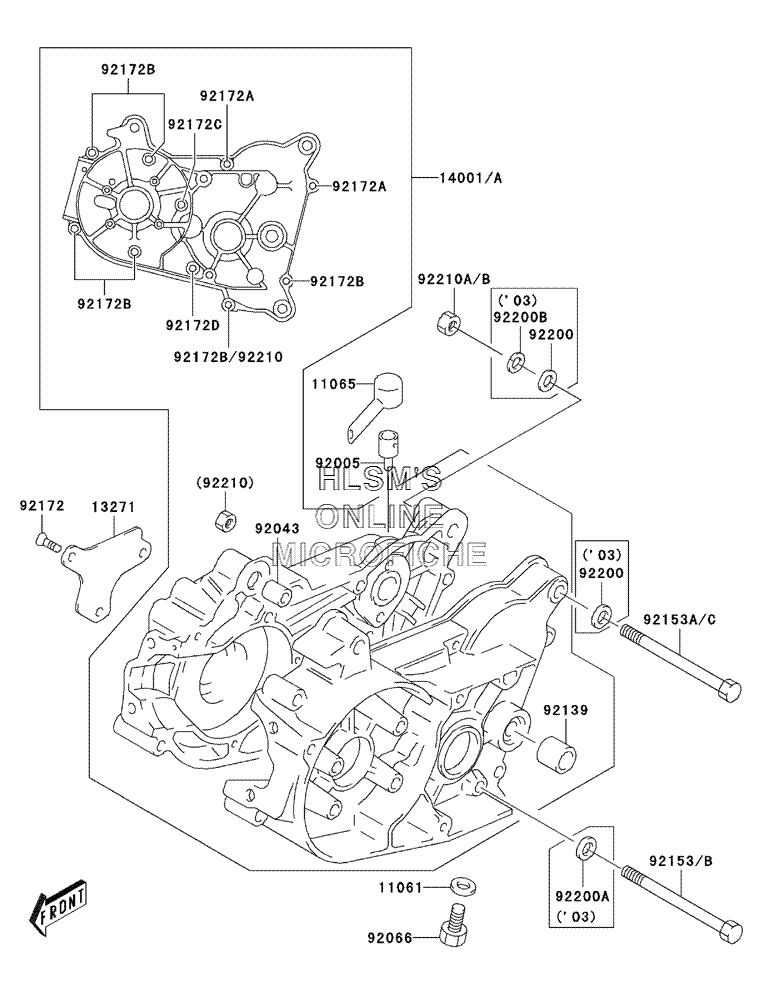

CRANKCASE для Kawasaki KDX 50 - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S021 GASKET, 10X14X3.6GASKET, 10X14X3.6
-
1106511065-S041 CAP, BREATHER PLUGCAP, BREATHER PLUG
-
1327113271-S025 PLATE, OIL RESERVOIRPLATE, OIL RESERVOIR
-
14001A14001-S009 SET, CRANKCASESET, CRANKCASE
-
9200592005-S005 FITTING, BREATHERFITTING, BREATHER
-
9204392043-S024 PIN, CRANKCASEPIN, CRANKCASE
-
9206692066-S036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
9213992139-S009 BUSHING, COUNTER SHAFTBUSHING, COUNTER SHAFT
-
92153B92153-S400 BOLTBOLT
-
92153C92153-S401 BOLTBOLT
-
9217292172-S098 SCREWSCREW
-
92172A92172-S117 SCREW, CRANKCASESCREW, CRANKCASE
-
92172B92172-S118 SCREW, CRANKCASESCREW, CRANKCASE
-
92172C92172-S119 SCREW, CRANKCASESCREW, CRANKCASE
-
92172D92172-S120 SCREW, CRANKCASESCREW, CRANKCASE
-
9221092210-S001 NUTNUT
-
92210B92210-S094 NUTNUT
