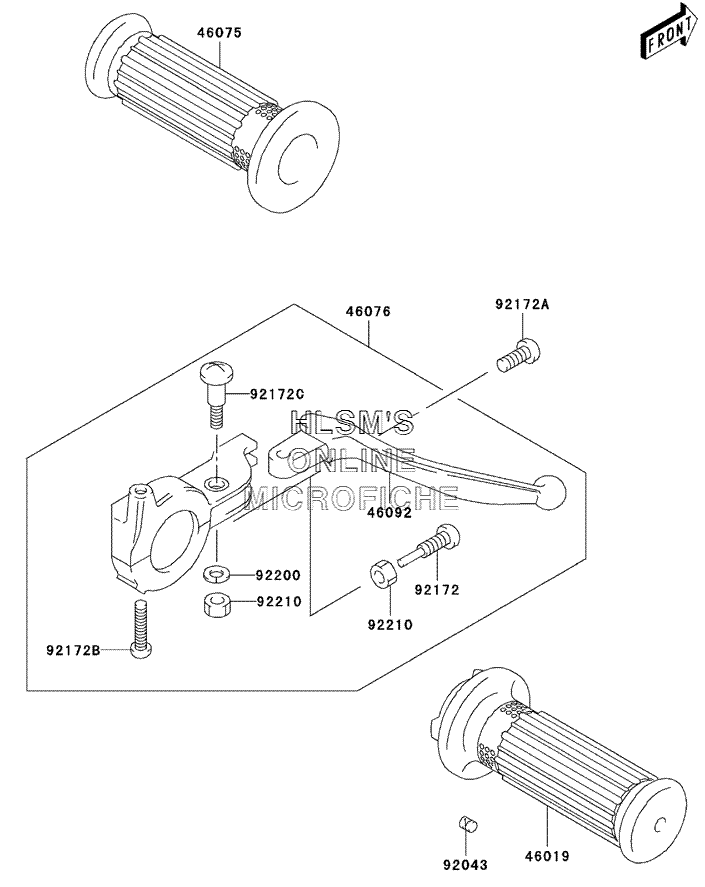

HANDLEBAR LEVER(S) для Kawasaki KDX 50 - 2004 года выпуска
-
№АртикулНазвание
-
4601946019-S004 GRIP, ASSY., THROTTLEGRIP, ASSY., THROTTLE
-
4607546075-S007 GRIP (LEFT)GRIP (LEFT)
-
4607646076-S008 LEVER, ASSY., GRIPLEVER, ASSY., GRIP
-
4609246092-S012 LEVER, GRIPLEVER, GRIP
-
9204392043-S045 PIN, THROTTLE CABLE ENDPIN, THROTTLE CABLE END
-
9217292172-S184 SCREWSCREW
-
92172A92172-S186 SCREW, 5X6SCREW, 5X6
-
92172B92172-S190 SCREWSCREW
-
92172C92172-S191 SCREWSCREW
-
9220092200-S168 WASHER, BRAKE LEVERWASHER, BRAKE LEVER
-
9221092210-S065 NUTNUT
