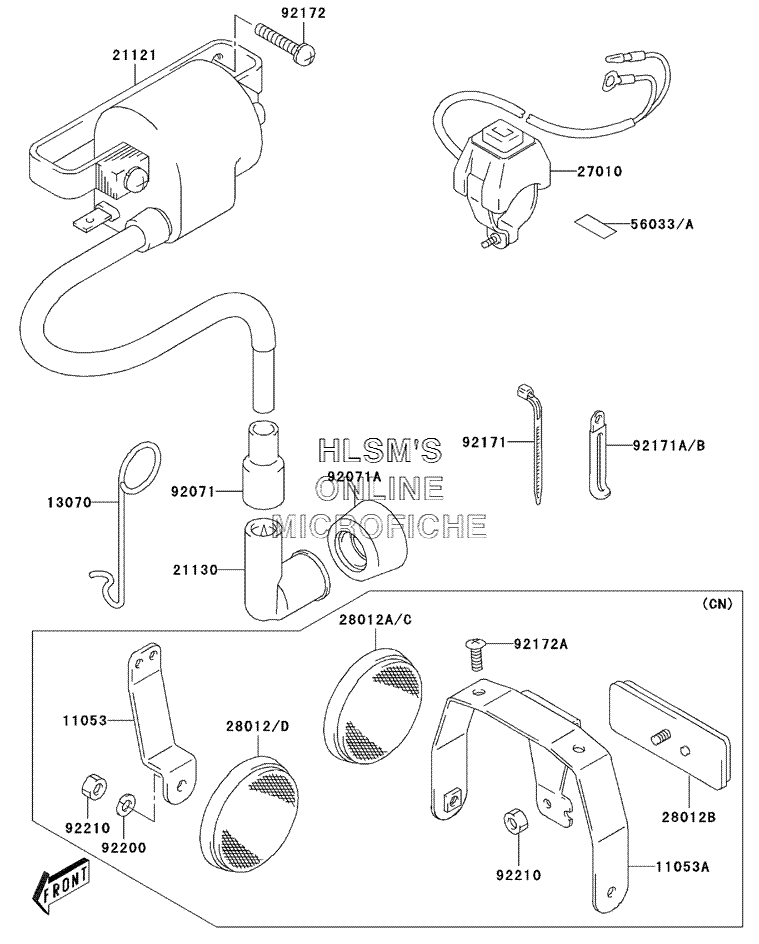

IGNITION SYSTEM для Kawasaki KDX 50 - 2004 года выпуска
-
№АртикулНазвание
-
1105311053-S027 BRACKET, REAR (CANADA ONLY)BRACKET, REAR (CANADA ONLY)
-
11053A11053-S028 BRACKET, REAR (CANADA ONLY)BRACKET, REAR (CANADA ONLY)
-
1307013070-S015 GUIDE, HIGHTENSION CORDGUIDE, HIGHTENSION CORD
-
2112121121-S004 COIL, IGNITIONCOIL, IGNITION
-
2113021130-S007 CAP, SPARK PLUGCAP, SPARK PLUG
-
2701027010-S027 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
2801228012-S001 REFLECTOR, REFLEX, FRONT (CANADA ONLY)REFLECTOR, REFLEX, FRONT (CANADA ONLY)
-
28012B28012-S003 REFLECTOR, REFLEX, REAR (CANADA ONLY)REFLECTOR, REFLEX, REAR (CANADA ONLY)
-
28012C28012-S004 REFLECTOR, REFLEX, REAR (CANADA ONLY)REFLECTOR, REFLEX, REAR (CANADA ONLY)
-
5603356033-S014 LABEL, MANUAL, ENGINE STOP (US ONLY)LABEL, MANUAL, ENGINE STOP (US ONLY)
-
56033A56033-S016 LABEL, MANUAL, ENGINE STOP (CANADA ONLY)LABEL, MANUAL, ENGINE STOP (CANADA ONLY)
-
9207192071-S004 GROMMET, HIGHTENSIONGROMMET, HIGHTENSION
-
92071A92071-S008 GROMMET, SPARK PLUGGROMMET, SPARK PLUG
-
9217192171-S016 CLAMP, L=165CLAMP, L=165
-
92171B92171-S132 CLAMP, L=45CLAMP, L=45
-
9217292172-S187 SCREW, IGNITION COILSCREW, IGNITION COIL
-
92172A92172-S193 SCREW (CANADA ONLY)SCREW (CANADA ONLY)
-
9220092200-S168 WASHER, BRAKE LEVER (CANADA ONLY)WASHER, BRAKE LEVER (CANADA ONLY)
-
9221092210-S065 NUT (CANADA ONLY)NUT (CANADA ONLY)
