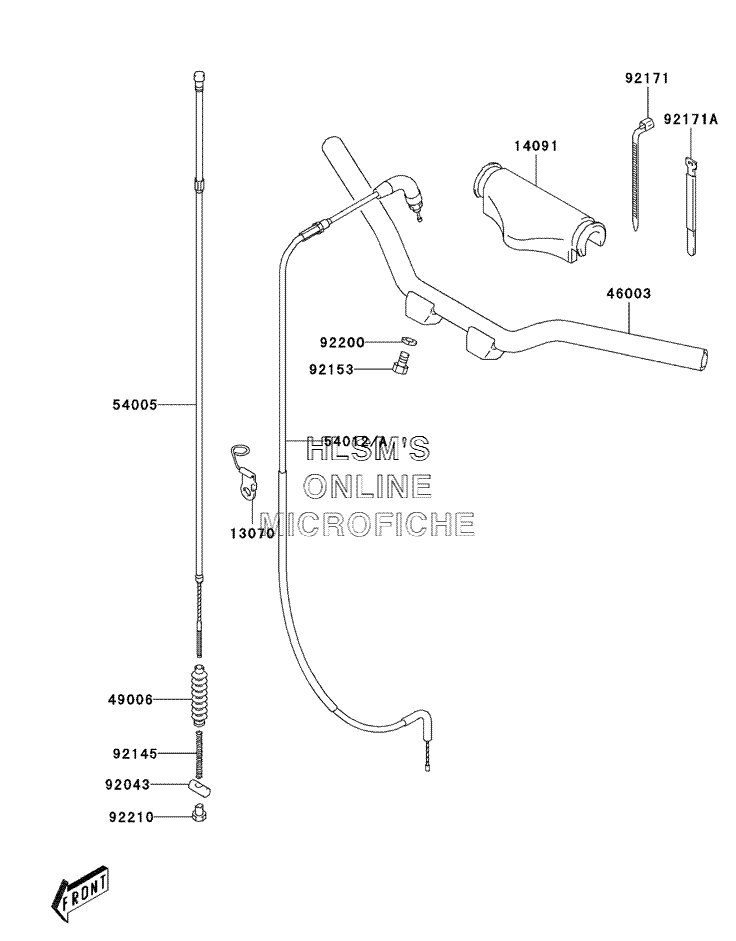

HANDLEBAR для Kawasaki KDX 50 - 2004 года выпуска
-
№АртикулНазвание
-
1307013070-S017 GUIDE, CABLEGUIDE, CABLE
-
1409114091-S099 COVER, HANDLECOVER, HANDLE
-
4600346003-S008-504 HANDLE (BLACK)HANDLE (BLACK)
-
4900649006-S027 BOOT, FRONT BRAKE CABLEBOOT, FRONT BRAKE CABLE
-
5400554005-S012 CABLE, BRAKECABLE, BRAKE
-
54012A54012-S012 CABLE, THROTTLECABLE, THROTTLE
-
9204392043-S006 PINPIN
-
9214592145-S121 SPRING, FRONT BRAKE CABLESPRING, FRONT BRAKE CABLE
-
9215392153-S321 BOLTBOLT
-
9217192171-S014 CLAMP, L=125CLAMP, L=125
-
92171A92171-S106 CLAMP, L=140CLAMP, L=140
-
9220092200-S167 WASHERWASHER
-
9221092210-S014 NUTNUT
