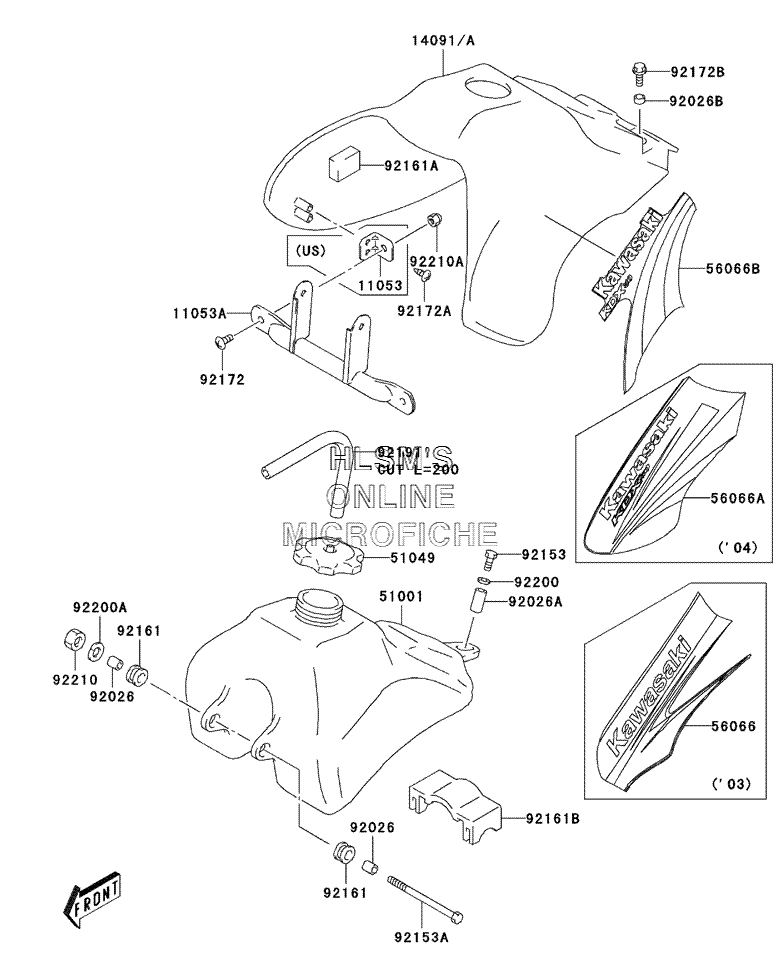

FUEL TANK для Kawasaki KDX 50 - 2004 года выпуска
-
№АртикулНазвание
-
1105311053-S025 BRACKET, FUEL TANK COVER (US ONLY)BRACKET, FUEL TANK COVER (US ONLY)
-
11053A11053-S026 BRACKET, FUEL TANK COVERBRACKET, FUEL TANK COVER
-
1409114091-S093-535 COVER, FUEL TANK (L.GREEN)COVER, FUEL TANK (L.GREEN)
-
5100151001-S009 TANK, COMP, FUELTANK, COMP, FUEL
-
5104951049-S005 CAP, TANKCAP, TANK
-
56066A56066-S028-553 PATTERN SET, TANK (WHITE/GOLD/BLACK/GREEN)PATTERN SET, TANK (WHITE/GOLD/BLACK/GREEN)
-
9202692026-S058 SPACER, FUEL TANKSPACER, FUEL TANK
-
92026A92026-S113 SPACER, FUEL TANK, REARSPACER, FUEL TANK, REAR
-
92026B92026-S114 SPACER, FUEL TANK COVER, REARSPACER, FUEL TANK COVER, REAR
-
9215392153-S126 BOLTBOLT
-
92153A92153-S319 BOLT, FUEL TANKBOLT, FUEL TANK
-
9216192161-S067 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92161A92161-S110 DAMPER, FUEL TANK COVERDAMPER, FUEL TANK COVER
-
92161B92161-S112 DAMPERDAMPER
-
9217292172-S017 SCREWSCREW
-
92172A92172-S188 SCREW, FUEL TANKSCREW, FUEL TANK
-
92172B92172-S189 SCREW, FUEL TANKSCREW, FUEL TANK
-
9219192191-S028 TUBE, FUEL TANK BREATHERTUBE, FUEL TANK BREATHER
-
9220092200-S004 WASHER, 6.5X18X1WASHER, 6.5X18X1
-
92200A92200-S102 WASHERWASHER
-
9221092210-S001 NUTNUT
-
92210A92210-S039 NUTNUT
