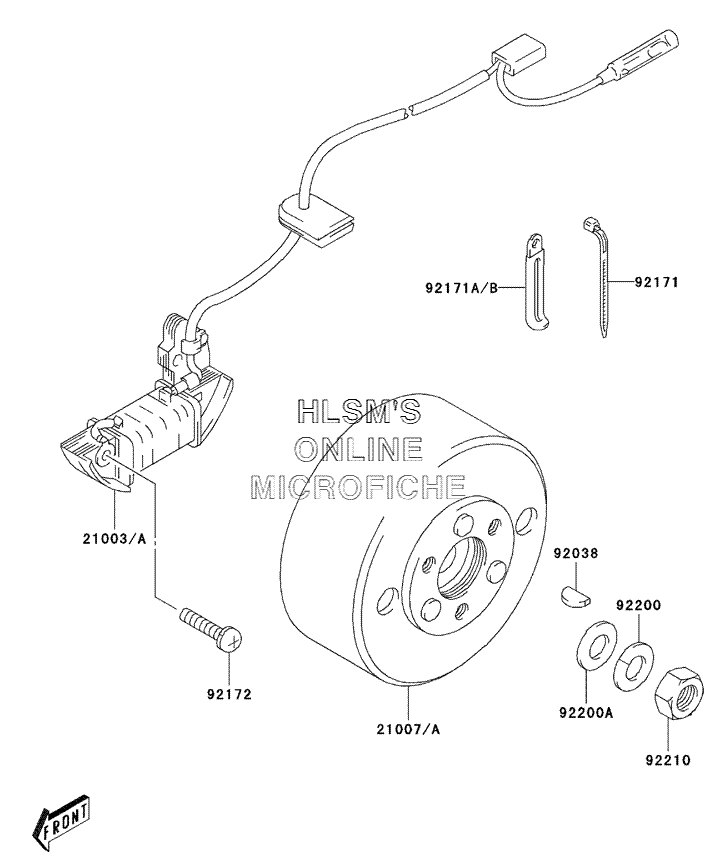

GENERATOR для Kawasaki KDX 50 - 2004 года выпуска
-
№АртикулНазвание
-
21003A21003-S008 STATORSTATOR
-
21007A21007-S010 ROTORROTOR
-
9203892038-S001 KEY, MAGNETO ROTORKEY, MAGNETO ROTOR
-
9217192171-S016 CLAMP, L=165CLAMP, L=165
-
92171B92171-S132 CLAMP, L=45CLAMP, L=45
-
9217292172-S130 SCREW, MAGNETO COILSCREW, MAGNETO COIL
-
9220092200-S091 WASHER, MAGNETO LOCKWASHER, MAGNETO LOCK
-
92200A92200-S092 WASHER, MAGNETOWASHER, MAGNETO
-
9221092210-S002 NUTNUT
