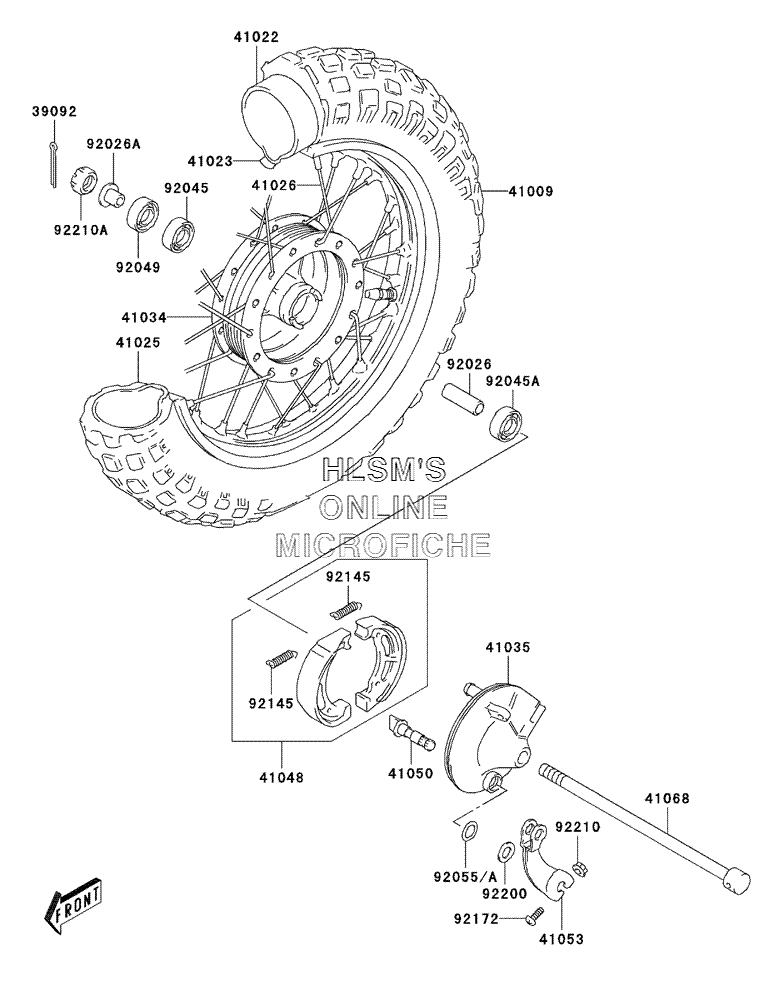

FRONT HUB для Kawasaki KDX 50 - 2004 года выпуска
-
№АртикулНазвание
-
3909239092-S005 PIN, HAIR, COTTERPIN, HAIR, COTTER
-
4100941009-S014 TIRE, 2.50, 10TIRE, 2.50, 10
-
4102241022-S005 TUBE, TIRETUBE, TIRE
-
4102341023-S005 BAND, RIMBAND, RIM
-
4102541025-S010 RIM, 1.40X10RIM, 1.40X10
-
4102641026-S005 SPOKE, ASSY.SPOKE, ASSY.
-
4103441034-S007 DRUM, ASSY., FRONT WHEELDRUM, ASSY., FRONT WHEEL
-
4103541035-S004 PANEL, ASSY., BRAKEPANEL, ASSY., BRAKE
-
4104841048-S008 SHOE, BRAKESHOE, BRAKE
-
4105041050-S007 CAM, BRAKECAM, BRAKE
-
4105341053-S009 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
4106841068-S010 AXLEAXLE
-
9202692026-S115 SPACER, FRONT HUB BEARINGSPACER, FRONT HUB BEARING
-
92026A92026-S116 SPACERSPACER
-
9204592045-S055 BEARING, BALL, FRONT WHEEL HUBBEARING, BALL, FRONT WHEEL HUB
-
92045A92045-S056 BEARING, BALL, FRONT WHEEL HUBBEARING, BALL, FRONT WHEEL HUB
-
9204992049-S055 SEAL, OIL, WHEEL HUBSEAL, OIL, WHEEL HUB
-
92055A92055-S091 O-RINGO-RING
-
9214592145-S122 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
9217292172-S192 SCREW, FRONT BRAKESCREW, FRONT BRAKE
-
9220092200-S177 WASHER, 10.5X18X1WASHER, 10.5X18X1
-
9221092210-S067 NUTNUT
-
92210A92210-S119 NUT, FRONT AXLENUT, FRONT AXLE
