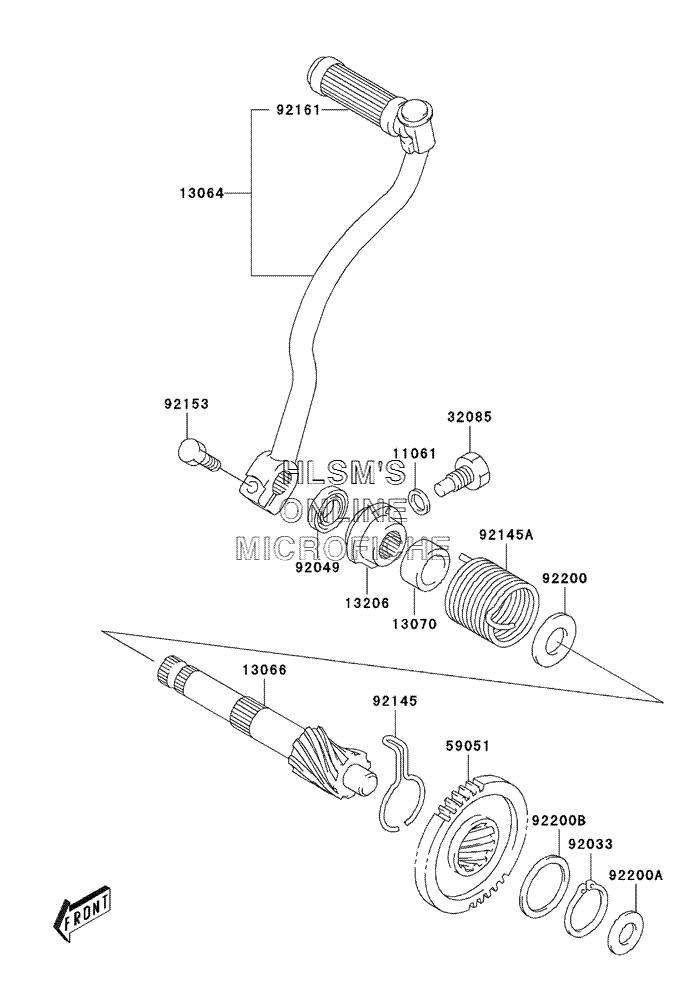

KICKSTARTER MECHANISM для Kawasaki KDX 50 - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S021 GASKET, 10X14X3.6GASKET, 10X14X3.6
-
1306413064-S003 LEVER, ASSY., KICKLEVER, ASSY., KICK
-
1306613066-S002 SHAFT, KICKSHAFT, KICK
-
1307013070-S016 GUIDE, KICK RETURN SPRINGGUIDE, KICK RETURN SPRING
-
1320613206-S002 GUIDE, KICKGUIDE, KICK
-
3208532085-S014 STOPPER, KICK STARTERSTOPPER, KICK STARTER
-
5905159051-S006 GEAR, SPURGEAR, SPUR
-
9203392033-S045 RING, SNAPRING, SNAP
-
9204992049-S056 SEAL, OIL, STARTER SHAFTSEAL, OIL, STARTER SHAFT
-
9214592145-S110 SPRINGSPRING
-
92145A92145-S117 SPRING, KICK STARTERSPRING, KICK STARTER
-
9215392153-S127 BOLTBOLT
-
9216192161-S109 DAMPER, KICK STARTER PEDALDAMPER, KICK STARTER PEDAL
-
9220092200-S073 WASHER, 16X30X1WASHER, 16X30X1
-
92200A92200-S170 WASHER, GEAR SHIFT SHAFTWASHER, GEAR SHIFT SHAFT
-
92200B92200-S172 WASHER, 25X32X1WASHER, 25X32X1
