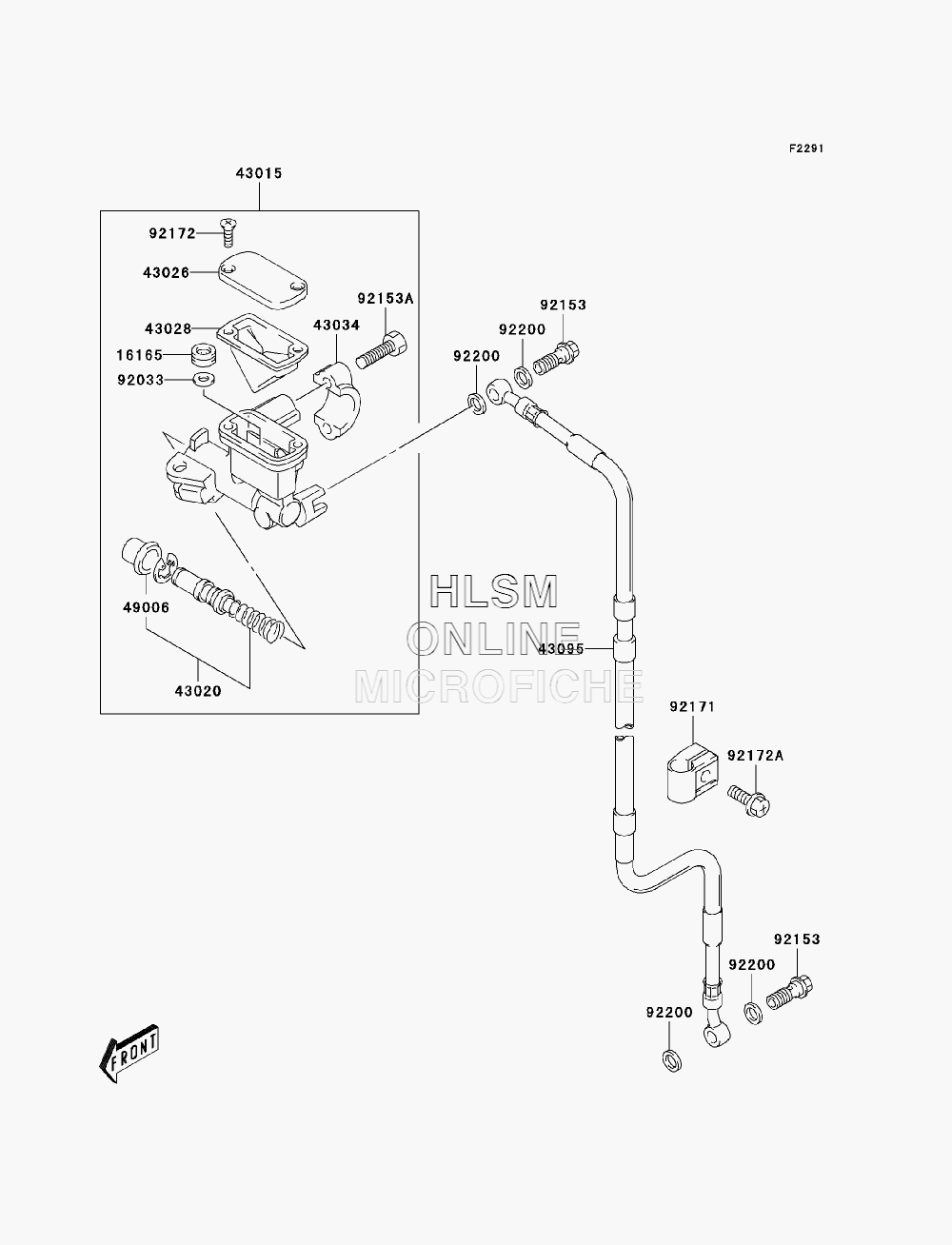

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KLX 400R (KLX400-B2) - 2004 года выпуска
-
№АртикулНазвание
-
1616516165-S011 SEPARATORSEPARATOR
-
4301543015-S012 CYLINDER-ASSY-MASTERCYLINDER-ASSY-MASTER
-
4302043020-S008 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-S009 CAP-BRAKECAP-BRAKE
-
4302843028-S014 DIAPHRAGMDIAPHRAGM
-
4303443034-S003 HOLDER-BRAKEHOLDER-BRAKE
-
4309543095-S015 HOSE-BRAKEHOSE-BRAKE
-
4900649006-S034 BOOTBOOT
-
9203392033-S047 RING-SNAPRING-SNAP
-
9215392153-S053 BOLTBOLT
-
92153A92153-S172 BOLTBOLT
-
9217192171-S057 CLAMP, FRONT BRAKE HOSECLAMP, FRONT BRAKE HOSE
-
9217292172-S054 SCREW, RESERVOIR CAPSCREW, RESERVOIR CAP
-
92172A92172-S142 SCREW, COOLING FAN COVERSCREW, COOLING FAN COVER
-
9220092200-S014 WASHER, 10X15X1.5WASHER, 10X15X1.5
