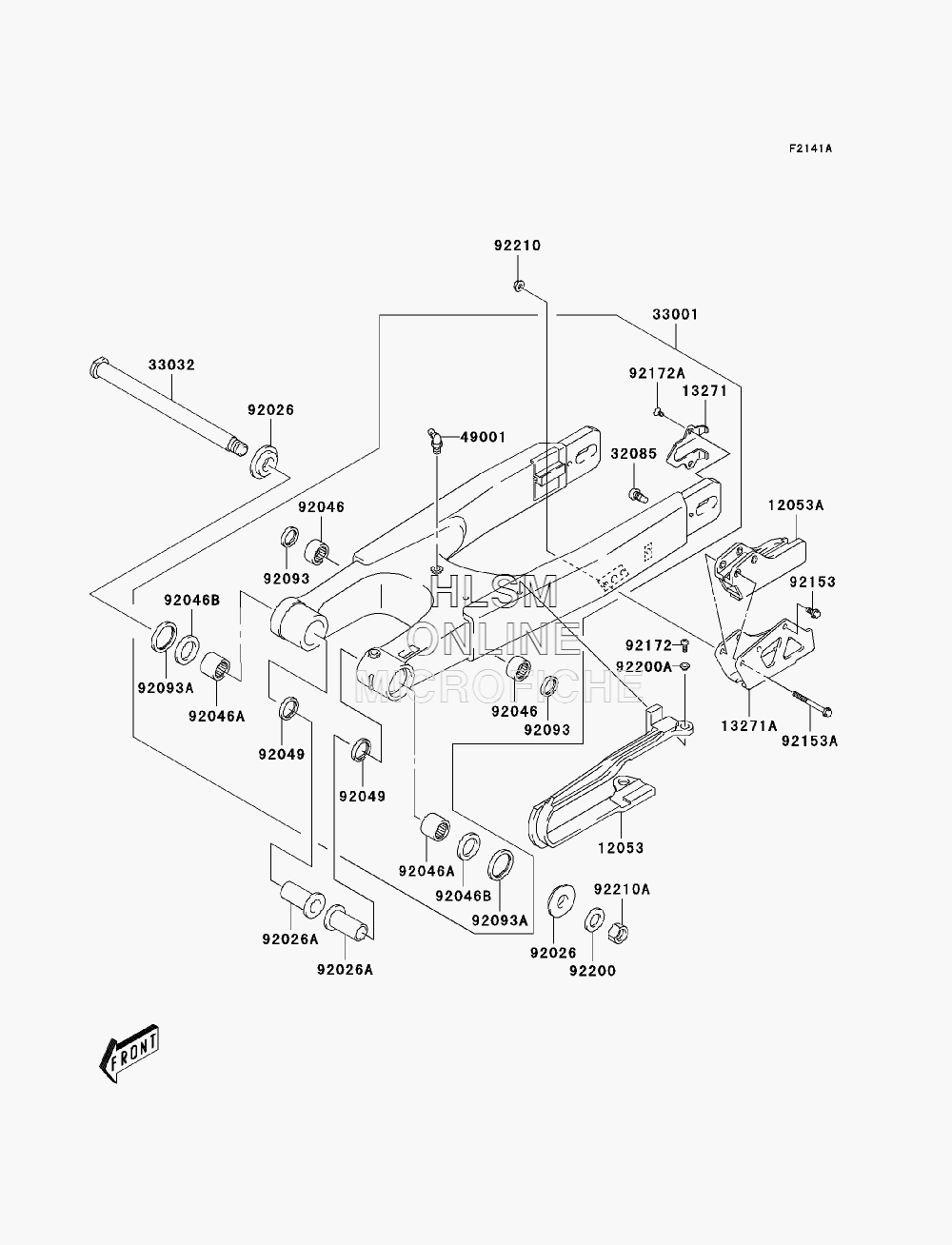

SUSPENSION - SWINGARM для Kawasaki KLX 400R (KLX400-B2) - 2004 года выпуска
-
№АртикулНазвание
-
1205312053-S020 GUIDE-CHAINGUIDE-CHAIN
-
12053A12053-S021 GUIDE-CHAINGUIDE-CHAIN
-
1327113271-S060 PLATEPLATE
-
13271A13271-S063 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
3208532085-S016 STOPPER, CHAIN ADJUSTERSTOPPER, CHAIN ADJUSTER
-
3300133001-S012 ARM-COMP-SWINGARM-COMP-SWING
-
3303233032-S005 SHAFT-SWINGARMSHAFT-SWINGARM
-
4900149001-S003 NIPPLE-GREASENIPPLE-GREASE
-
9202692026-S121 SPACERSPACER
-
92026A92026-S130 SPACERSPACER
-
9204692046-S018 BEARING-NEEDLEBEARING-NEEDLE
-
92046A92046-S019 BEARING-NEEDLE, SWINGARMBEARING-NEEDLE, SWINGARM
-
92046B92046-S023 BEARING-NEEDLE, 22X35X2BEARING-NEEDLE, 22X35X2
-
9204992049-S053 SEAL-OIL, SWINGARMSEAL-OIL, SWINGARM
-
9209392093-S041 SEALSEAL
-
92093A92093-S045 SEAL, 29.2X37X4SEAL, 29.2X37X4
-
9215392153-S144 BOLTBOLT
-
92153A92153-S335 BOLTBOLT
-
9217292172-S110 SCREWSCREW
-
92172A92172-S209 SCREW, 5X8SCREW, 5X8
-
9220092200-S030 WASHERWASHER
-
92200A92200-S200 WASHERWASHER
-
9221092210-S054 NUTNUT
-
92210A92210-S133 NUTNUT
