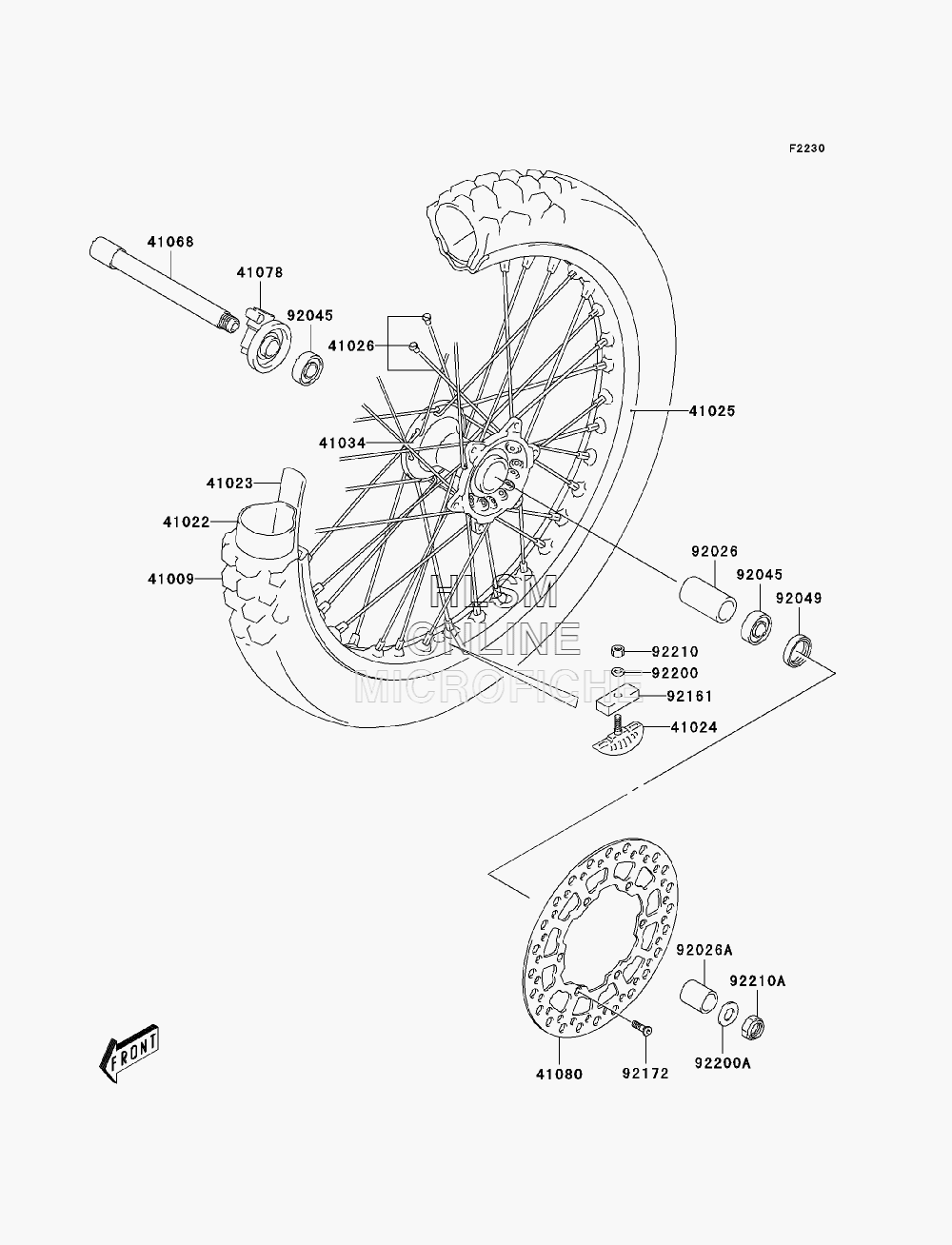

FRONT HUB для Kawasaki KLX 400R (KLX400-B2) - 2004 года выпуска
-
№АртикулНазвание
-
4100941009-S017 TIRE, 80/100-21 51P(D)TIRE, 80/100-21 51P(D)
-
4102241022-S008 TUBE-TIRETUBE-TIRE
-
4102341023-S008 BAND-RIMBAND-RIM
-
4102441024-S002 STOPPER-RIMSTOPPER-RIM
-
4102541025-S013 RIM, 1.60X21RIM, 1.60X21
-
4102641026-S008 SPOKE-ASSYSPOKE-ASSY
-
4103441034-S009 DRUM-ASSYDRUM-ASSY
-
4106841068-S012 AXLE, FRONTAXLE, FRONT
-
4107841078-S002 CASE-ASSY-METER GEARCASE-ASSY-METER GEAR
-
4108041080-S009 DISCDISC
-
9202692026-S128 SPACER, 20.5X27.3X70SPACER, 20.5X27.3X70
-
92026A92026-S129 SPACERSPACER
-
9204592045-S061 BEARING-BALLBEARING-BALL
-
9204992049-S059 SEAL-OIL, 25X37X6SEAL-OIL, 25X37X6
-
9216192161-S144 DAMPERDAMPER
-
9217292172-S210 SCREW, 6X17.5SCREW, 6X17.5
-
9220092200-S028 WASHERWASHER
-
92200A92200-S199 WASHERWASHER
-
9221092210-S051 NUTNUT
-
92210A92210-S132 NUTNUT
