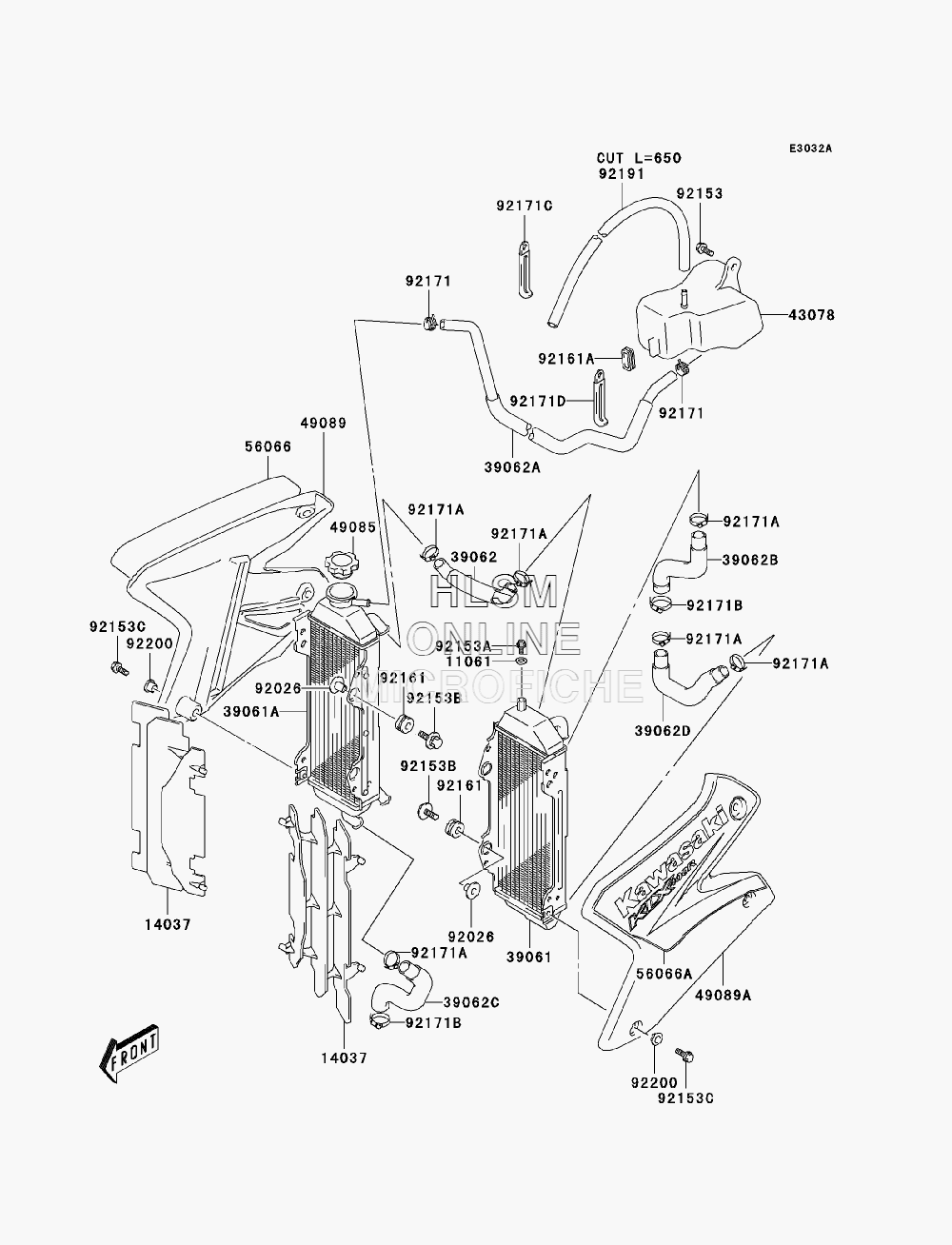

RADIATOR для Kawasaki KLX 400R (KLX400-B2) - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S002 GASKET, 6.4X11.5X0.8GASKET, 6.4X11.5X0.8
-
1403714037-S001 SCREENSCREEN
-
3906139061-S006 RADIATOR-ASSY, LEFT HANDRADIATOR-ASSY, LEFT HAND
-
39061A39061-S007 RADIATOR-ASSY, RIGHT HANDRADIATOR-ASSY, RIGHT HAND
-
3906239062-S022 HOSE-COOLING, JOINTHOSE-COOLING, JOINT
-
39062A39062-S023 HOSE-COOLING, RESERVOIR TANKHOSE-COOLING, RESERVOIR TANK
-
39062B39062-S024 HOSE-COOLING, RADIATOR INLETHOSE-COOLING, RADIATOR INLET
-
39062C39062-S025 HOSE-COOLING, RADIATOR OUTLETHOSE-COOLING, RADIATOR OUTLET
-
39062D39062-S026 HOSE-COOLING, RADIATOR LOWERHOSE-COOLING, RADIATOR LOWER
-
4307843078-S006 RESERVOIRRESERVOIR
-
4908549085-S004 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
4908949089-S003-535 SHROUD-ENGINE, RIGHT HAND, (L.GREEN)SHROUD-ENGINE, RIGHT HAND, (L.GREEN)
-
49089A49089-S004-535 SHROUD-ENGINE, LEFT HAND, (L.GREEN)SHROUD-ENGINE, LEFT HAND, (L.GREEN)
-
5606656066-S024-570 PATTERN, RIGHT HAND, (WHITE/BLACK/GOLD/GREEN/RED)PATTERN, RIGHT HAND, (WHITE/BLACK/GOLD/GREEN/RED)
-
56066A56066-S025-570 PATTERN, LEFT HAND, (WHITE/BLACK/GOLD/GREEN/RED)PATTERN, LEFT HAND, (WHITE/BLACK/GOLD/GREEN/RED)
-
9202692026-S123 SPACERSPACER
-
9215392153-S011 BOLTBOLT
-
92153A92153-S055 BOLT, AIR VENTBOLT, AIR VENT
-
92153B92153-S105 BOLT, 6X25BOLT, 6X25
-
92153C92153-S144 BOLTBOLT
-
9216192161-S114 DAMPERDAMPER
-
92161A92161-S115 DAMPER, RESERVOIR TANKDAMPER, RESERVOIR TANK
-
9217192171-S002 CLAMPCLAMP
-
92171A92171-S008 CLAMPCLAMP
-
92171B92171-S088 CLAMP, RADIATOR HOSECLAMP, RADIATOR HOSE
-
92171C92171-S116 CLAMP, RESERVOIR HOSECLAMP, RESERVOIR HOSE
-
92171D92171-S132 CLAMPCLAMP
-
9219192191-S088-500 TUBE, (M.R.ORANGE)TUBE, (M.R.ORANGE)
-
9220092200-S078 WASHERWASHER
