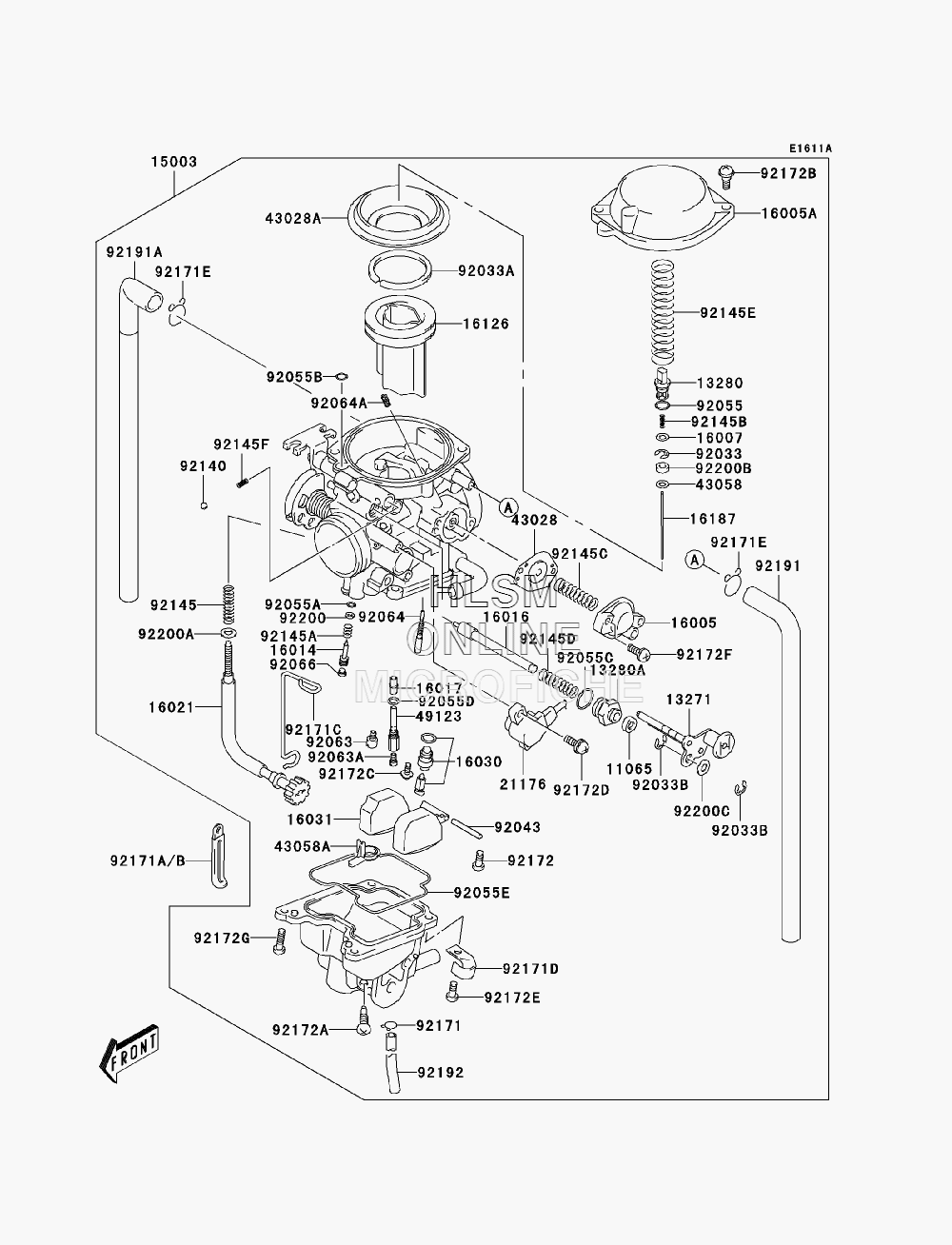

CARBURETOR (CALIF. ONLY) для Kawasaki KLX 400R (KLX400-B2) - 2004 года выпуска
-
№АртикулНазвание
-
1106511065-S031 CAPCAP
-
1327113271-S056 PLATEPLATE
-
1328013280-S002 HOLDERHOLDER
-
13280A13280-S021 HOLDERHOLDER
-
1500315003-S014 CARBURETOR-ASSYCARBURETOR-ASSY
-
1600516005-S004 TOP-CHAMBERTOP-CHAMBER
-
16005A16005-S006 TOP-CHAMBER, DIAPHRAGMTOP-CHAMBER, DIAPHRAGM
-
1600716007-S005 SEAT-SPRINGSEAT-SPRING
-
1601416014-S009 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-S008 PLUNGERPLUNGER
-
1601716017-S008 JET-NEEDLEJET-NEEDLE
-
1602116021-S006 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-S008 VALVE-FLOATVALVE-FLOAT
-
1603116031-S006 FLOATFLOAT
-
1612616126-S010 VALVEVALVE
-
1618716187-S011 NEEDLE-JETNEEDLE-JET
-
2117621176-S001 SENSORSENSOR
-
4302843028-S008 DIAPHRAGMDIAPHRAGM
-
43028A43028-S011 DIAPHRAGMDIAPHRAGM
-
4305843058-S001 RINGRING
-
43058A43058-S007 RINGRING
-
4912349123-S006 HOLDER-MAIN JETHOLDER-MAIN JET
-
9203392033-S008 RING-SNAP, MULTIPLE JETRING-SNAP, MULTIPLE JET
-
92033A92033-S041 RING-SNAPRING-SNAP
-
92033B92033-S046 RING-SNAPRING-SNAP
-
9204392043-S034 PINPIN
-
9205592055-S003 RING-O, ID:4.8RING-O, ID:4.8
-
92055A92055-S013 RING-ORING-O
-
92055B92055-S044 RING-ORING-O
-
92055C92055-S048 RING-ORING-O
-
92055D92055-S049 RING-ORING-O
-
92055E92055-S058 RING-ORING-O
-
9206392063-S011 JET-MAIN, #62.5JET-MAIN, #62.5
-
92063A92063-S016 JET-MAINJET-MAIN
-
9206492064-S008 JET-PILOT, #22.5JET-PILOT, #22.5
-
92064A92064-S012 JET-PILOTJET-PILOT
-
9206692066-S027 PLUGPLUG
-
9214092140-S005 BALLBALL
-
9214592145-S009 SPRING, THROTTLE SCREWSPRING, THROTTLE SCREW
-
92145A92145-S010 SPRING, THROTTLE SCREWSPRING, THROTTLE SCREW
-
92145B92145-S097 SPRINGSPRING
-
92145C92145-S098 SPRINGSPRING
-
92145D92145-S113 SPRINGSPRING
-
92145E92145-S125 SPRINGSPRING
-
92145F92145-S127 SPRINGSPRING
-
9217192171-S001 CLAMPCLAMP
-
92171A92171-S012 CLAMP, CARB OVERFLOW HOSECLAMP, CARB OVERFLOW HOSE
-
92171B92171-S081 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
92171C92171-S110 CLAMPCLAMP
-
92171D92171-S111 CLAMPCLAMP
-
92171E92171-S130 CLAMPCLAMP
-
9217292172-S002 SCREWSCREW
-
92172A92172-S046 SCREW, DRAINSCREW, DRAIN
-
92172B92172-S047 SCREWSCREW
-
92172C92172-S048 SCREWSCREW
-
92172D92172-S049 SCREWSCREW
-
92172E92172-S057 SCREWSCREW
-
92172F92172-S139 SCREWSCREW
-
92172G92172-S145 SCREWSCREW
-
9219192191-S069 TUBE, AIR VENTTUBE, AIR VENT
-
92191A92191-S079 TUBETUBE
-
9219292192-S020 TUBETUBE
-
9220092200-S019 WASHERWASHER
-
92200A92200-S021 WASHERWASHER
-
92200B92200-S083 WASHERWASHER
-
92200C92200-S181 WASHERWASHER
