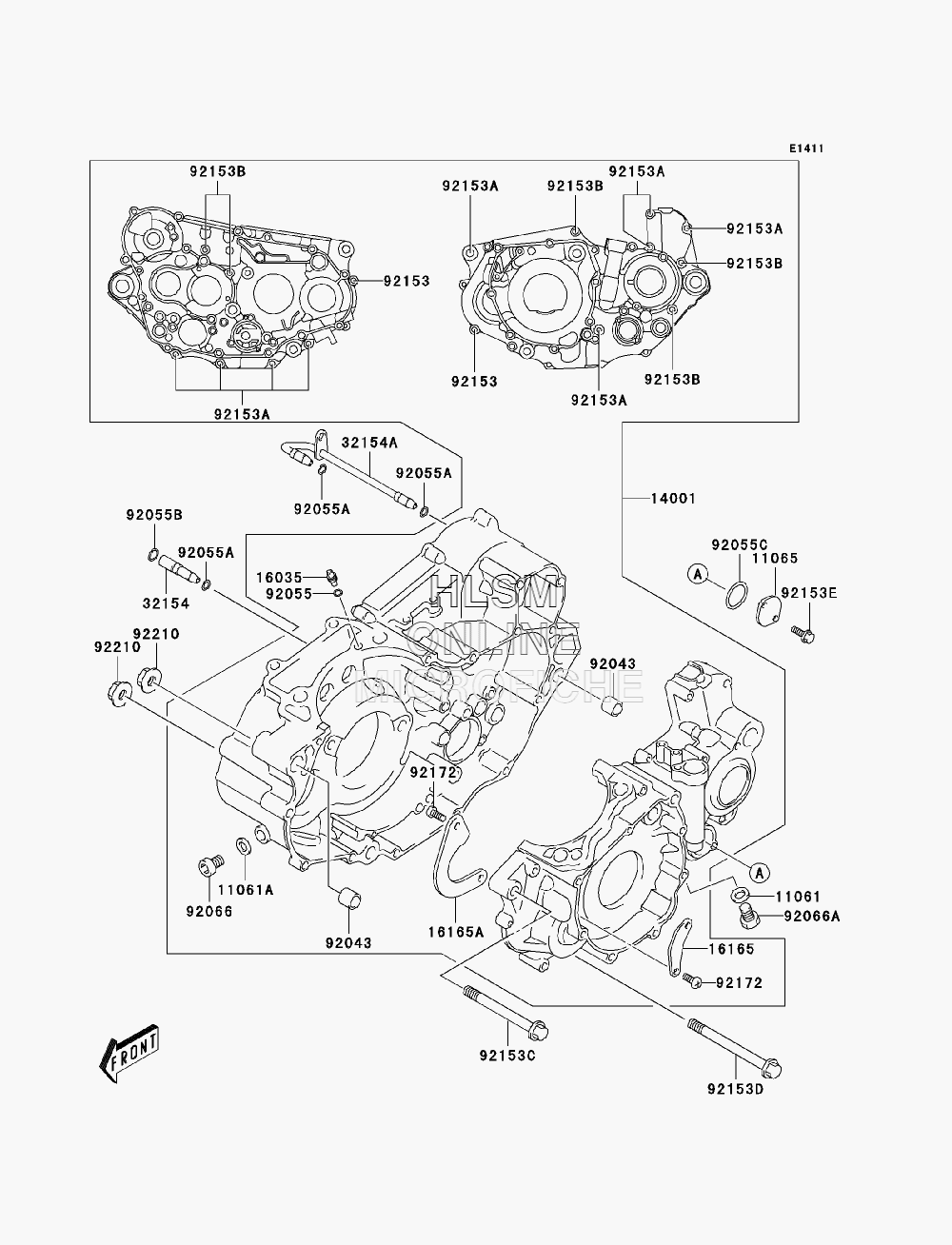

CRANKCASE для Kawasaki KLX 400R (KLX400-B2) - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S005 GASKET, 12X16X2GASKET, 12X16X2
-
11061A11061-S021 GASKET, 10X14X3.6GASKET, 10X14X3.6
-
1106511065-S053 CAP, NEUTRALCAP, NEUTRAL
-
1400114001-S008 SET-CRANKCASESET-CRANKCASE
-
1603516035-S004 JET-AIRJET-AIR
-
1616516165-S007 SEPARATOR, CRANKCASE OILSEPARATOR, CRANKCASE OIL
-
16165A16165-S008 SEPARATOR, CRANKCASE OILSEPARATOR, CRANKCASE OIL
-
3215432154-S005 PIPEPIPE
-
32154A32154-S007 PIPE, OILPIPE, OIL
-
9204392043-S003 PINPIN
-
9205592055-S002 RING-O, ID:4.0)RING-O, ID:4.0)
-
92055A92055-S003 RING-O, ID:4.8RING-O, ID:4.8
-
92055B92055-S053 RING-O, 6.8X1.9RING-O, 6.8X1.9
-
92055C92055-S055 RING-O, 26.2X2.4RING-O, 26.2X2.4
-
9206692066-S009 PLUGPLUG
-
92066A92066-S032 PLUG, OIL DRAINPLUG, OIL DRAIN
-
9215392153-S006 BOLTBOLT
-
92153A92153-S128 BOLTBOLT
-
92153B92153-S247 BOLTBOLT
-
92153C92153-S269 BOLT, 10X100BOLT, 10X100
-
92153D92153-S334 BOLT, 10X115BOLT, 10X115
-
92153E92153-S343 BOLTBOLT
-
9217292172-S033 SCREW, 6X12SCREW, 6X12
-
9221092210-S015 NUTNUT
