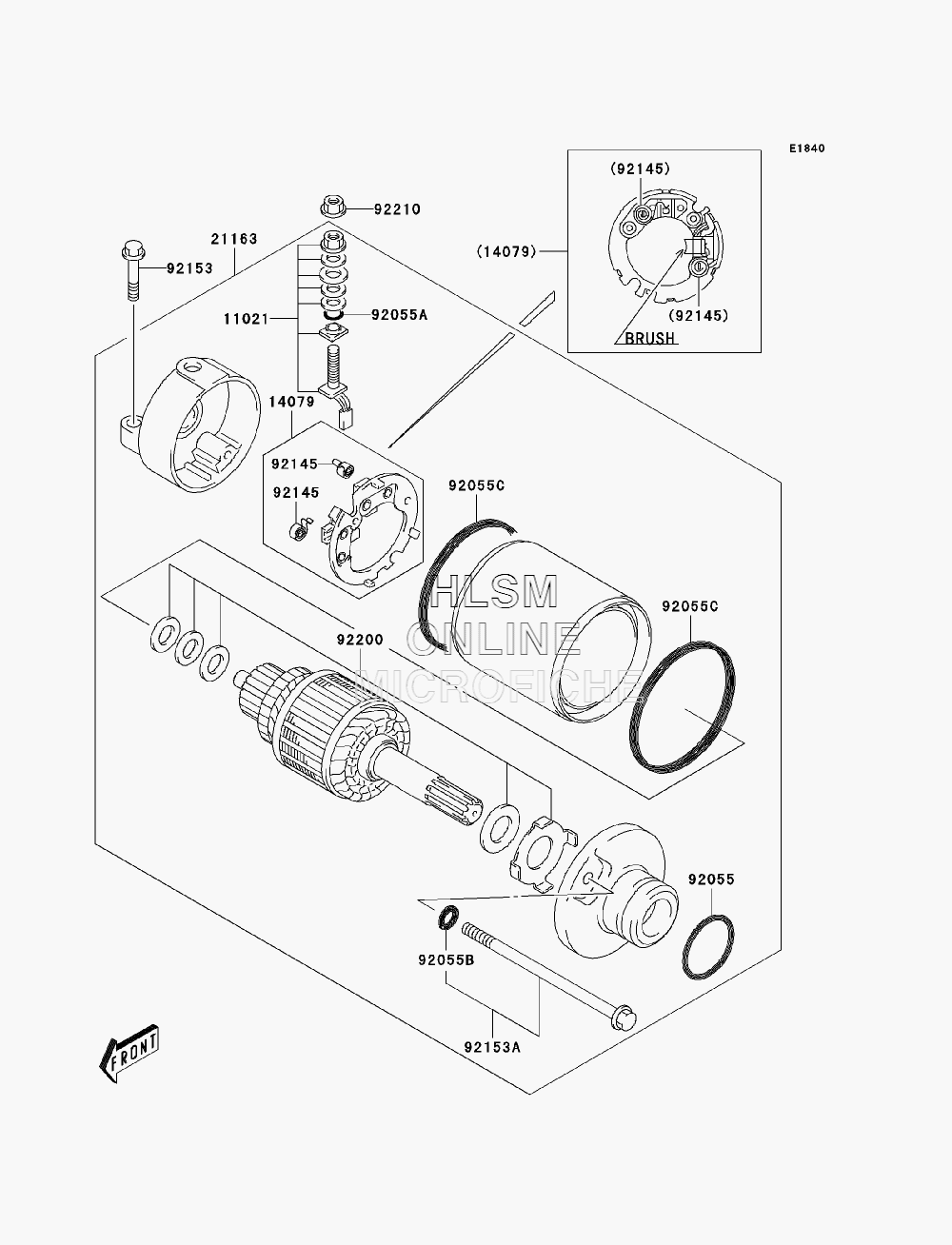

STARTER MOTOR для Kawasaki KLX 400R (KLX400-B2) - 2004 года выпуска
-
№АртикулНазвание
-
1102111021-S002 BRUSH, TERMINAL SETBRUSH, TERMINAL SET
-
1407914079-S002 HOLDER-ASSYHOLDER-ASSY
-
2116321163-S004 STARTER-ELECTRICSTARTER-ELECTRIC
-
9205592055-S008 RING-O, D:3, ID:24.5RING-O, D:3, ID:24.5
-
92055A92055-S067 RING-ORING-O
-
92055B92055-S068 RING-ORING-O
-
92055C92055-S069 RING-ORING-O
-
9214592145-S103 SPRING, BRUSHSPRING, BRUSH
-
9215392153-S003 BOLTBOLT
-
92153A92153-S293 BOLTBOLT
-
9220092200-S154 WASHER, SETWASHER, SET
-
9221092210-S099 NUT, STARTING MOTORNUT, STARTING MOTOR
