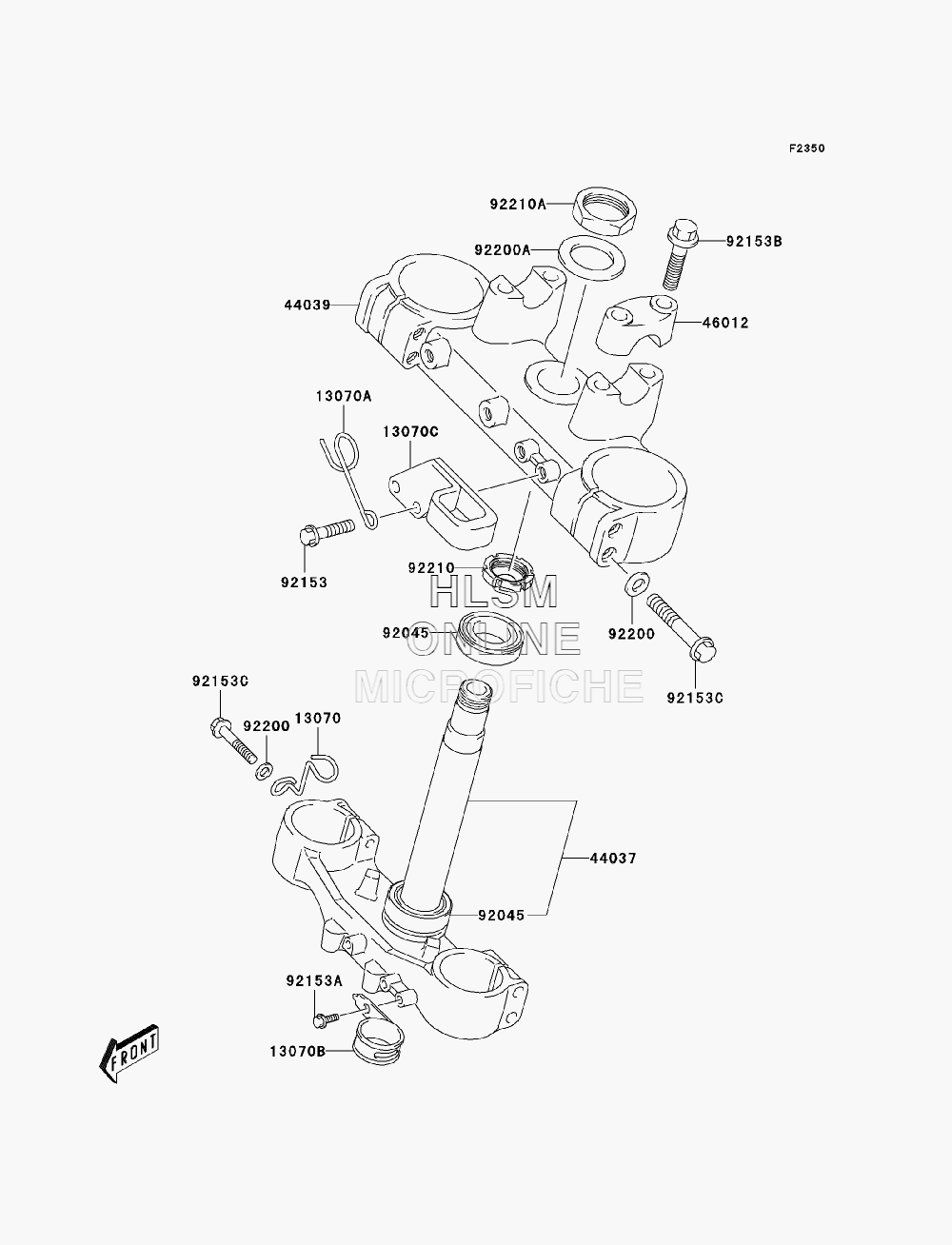

UNDER BRACKET для Kawasaki KLX 400R (KLX400-B2) - 2004 года выпуска
-
№АртикулНазвание
-
1307013070-S023 GUIDE, SPEEDOMETER CABLEGUIDE, SPEEDOMETER CABLE
-
13070A13070-S026 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
13070B13070-S028 GUIDE, CABLEGUIDE, CABLE
-
13070C13070-S029 GUIDE, HOSEGUIDE, HOSE
-
4403744037-S006 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
4403944039-S005 HOLDER-FORK UPPERHOLDER-FORK UPPER
-
4601246012-S004 HOLDER-HANDLEHOLDER-HANDLE
-
9204592045-S058 BEARING-BALL, 30X52X16BEARING-BALL, 30X52X16
-
9215392153-S061 BOLTBOLT
-
92153A92153-S331 BOLT, 6X10BOLT, 6X10
-
92153B92153-S351 BOLT, 8X35BOLT, 8X35
-
92153C92153-S352 BOLTBOLT
-
9220092200-S179 WASHERWASHER
-
92200A92200-S198 WASHERWASHER
-
9221092210-S131 NUT, STEERINGNUT, STEERING
-
92210A92210-S141 NUTNUT
Все узлы модели:
- AIR CLEANER
- BALANCER SHAFT
- BATTERY
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL
- CAM CHAIN/TENSIONER
- CARBURETOR (CALIF. ONLY)
- CARBURETOR (EXCEPT CALIF.)
- CLUTCH
- COLOR INFO
- CRANKCASE
- CRANKSHAFT - PISTON(S)
- CYLINDER
- CYLINDER HEAD
- CYLINDER HEAD COVER
- ENGINE COVER
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FRONT FORK
- FRONT HUB
- FUEL TANK
- GASKET KIT
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HANDLEBAR LEVER(S)
- HEADLIGHT(S)
- IGNITION SWITCH
- IGNITION SYSTEM
- KICK STARTER SET (OPTION)
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL HOSE
- OIL PUMP/OIL FILTER
- RADIATOR
- REAR HUB
- REFLECTORS (CANADA ONLY)
- SEAT
- SIDE COVERS
- STAND(S)
- STARTER CLUTCH
- STARTER MOTOR
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TRANSMISSION
- • UNDER BRACKET
- VALVE(S) W/ CAMSHAFT(S)
- WATER PUMP
