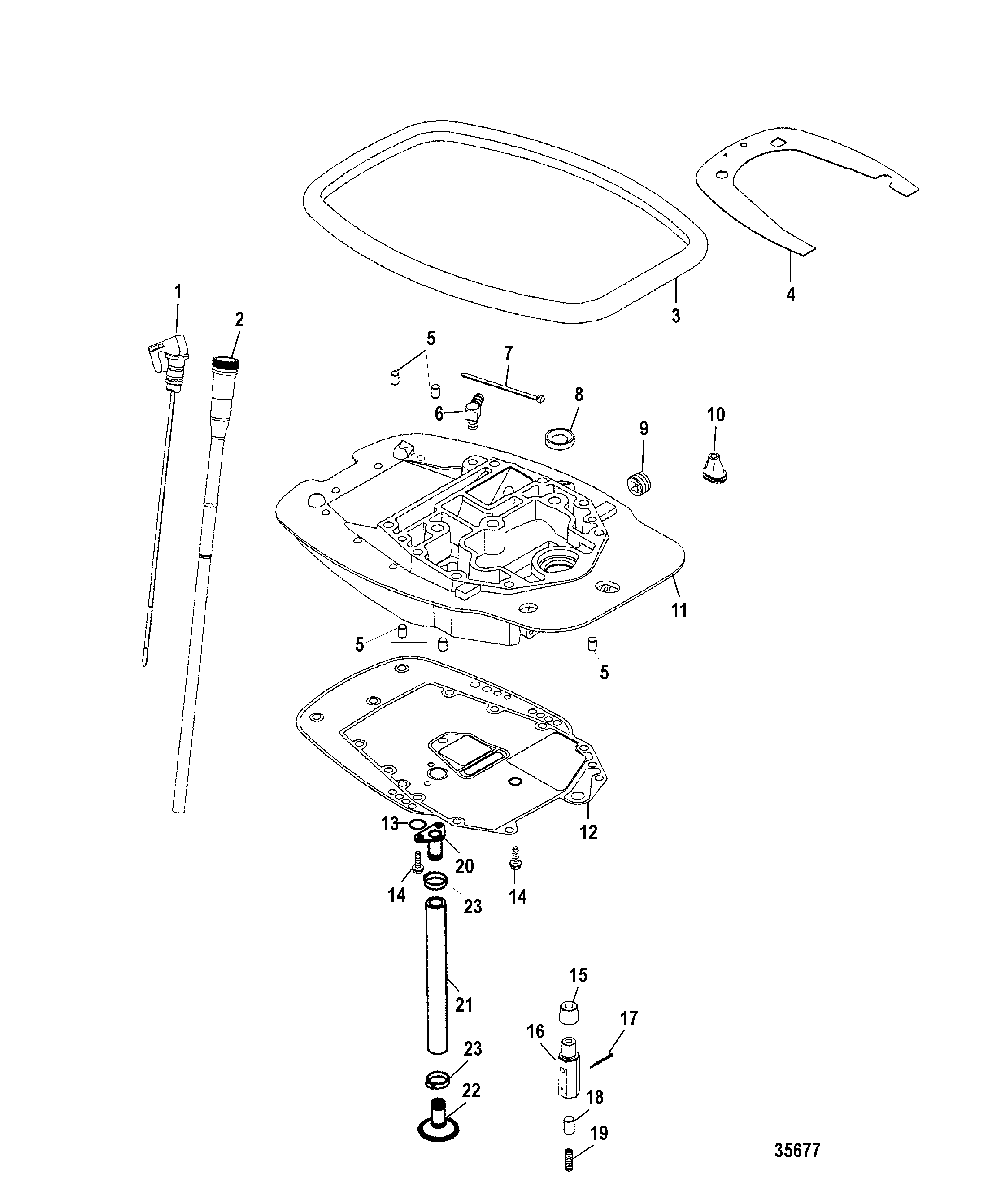

Adaptor Plate для Mariner - 25 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1825990 DIPSTICKDIPSTICK
-
2825989003 DIPSTICK TUBEDIPSTICK TUBE
-
38238052 SEAL, Lower CowlSEAL, Lower Cowl
-
48289151 HEAT SHIELDHEAT SHIELD
-
517-23784 PIN, DowelPIN, Dowel
-
622-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
826-828932 SEAL, OilSEAL, Oil
-
922-384073 PLUG, PipePLUG, Pipe
-
1025-822408001 GROMMETGROMMET
-
11825228A25 ADAPTOR PLATEADAPTOR PLATE
-
1227-892320001 GASKETGASKET
-
1325-845746 O-RINGO-RING
-
1410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
15856592 DEFLECTOR, OilDEFLECTOR, Oil
-
16881872A1 BODY, Oil Pressure ReliefBODY, Oil Pressure Relief
-
1718-45882 COTTER PINCOTTER PIN
-
188252151 PLUNGERPLUNGER
-
1924-825216 SPRINGSPRING
-
20893765 PLATE, Oil Pickup-TopPLATE, Oil Pickup-Top
-
2132-854793 HOSE, Oil PickupHOSE, Oil Pickup
-
22893700 BAFFLEBAFFLE
-
2354-855228 CLAMPCLAMP
