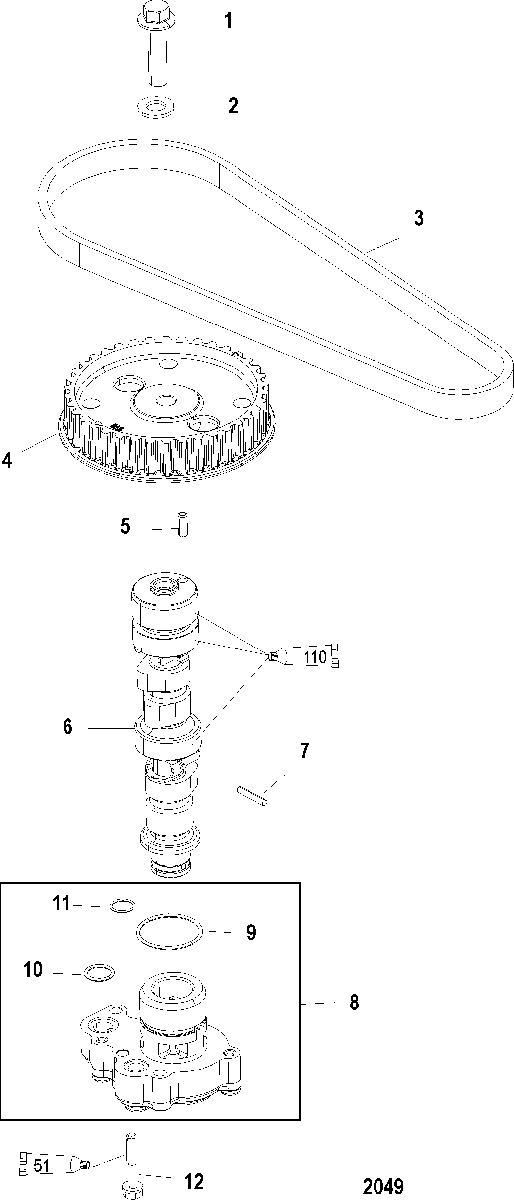

Camshaft/Oil Pump для Mariner - 25 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
110-82761140 SCREW, (M10 x 40)SCREW, (M10 x 40)
-
212-4002319 WASHERWASHER
-
357-8M0065179 BELTBELT
-
48331043 GEAR, DrivenGEAR, Driven
-
517-825956 PIN, DowelPIN, Dowel
-
62419-830275T1 CAMSHAFT
(ELECTRIC)CAMSHAFT
(ELECTRIC) -
6406-853894A2 CAMSHAFT
(MANUAL)CAMSHAFT
(MANUAL) -
717-826149 PINPIN
-
8852388T1 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
925-826152 O-RINGO-RING
-
1025-826154 O-RINGO-RING
-
1125-826153 O-RINGO-RING
-
1210-88348935 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
-27-830270A02 GASKET SETGASKET SET
-
-830271T3 CYLINDER HEAD
(ELECTRIC)CYLINDER HEAD
(ELECTRIC) -
-830271T4 CYLINDER HEAD
(MANUAL)CYLINDER HEAD
(MANUAL)
