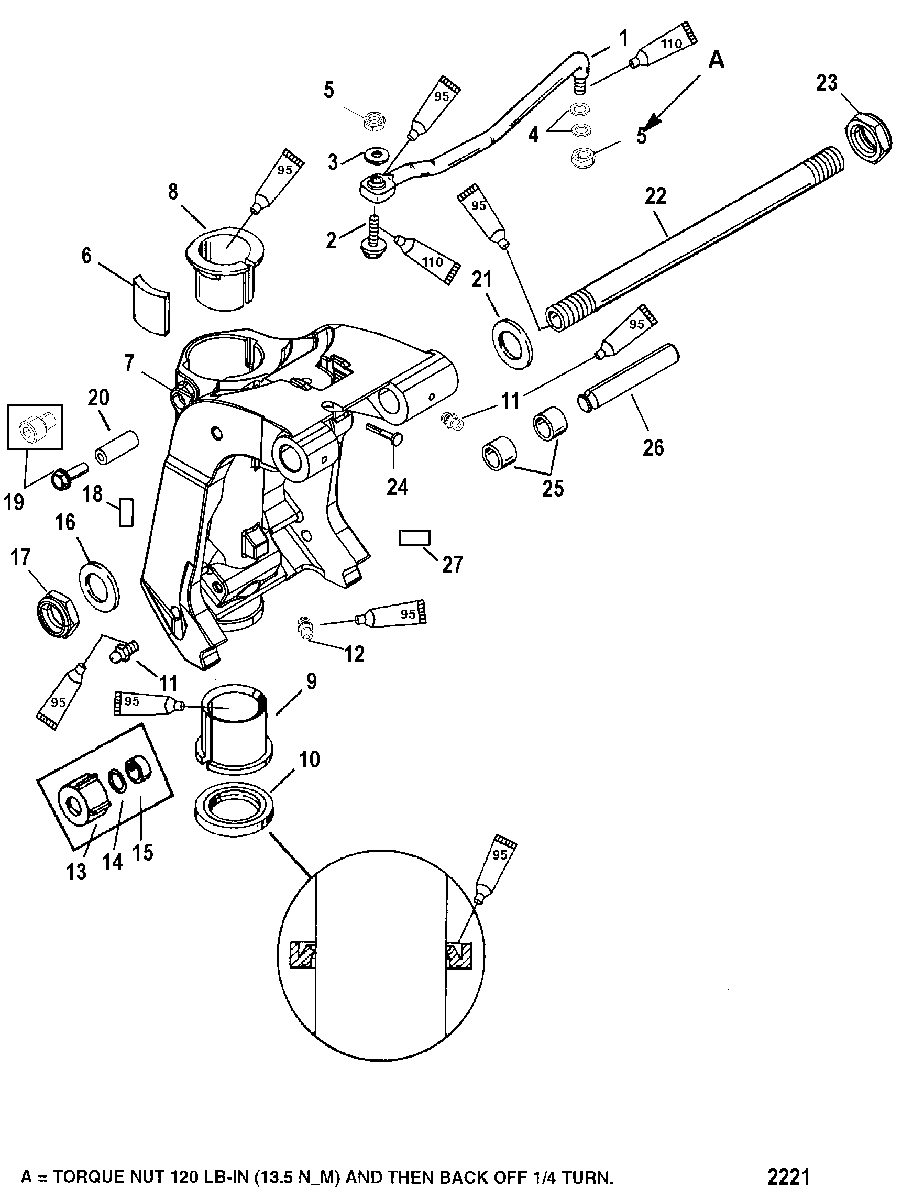

Swivel Bracket для Mariner - 25 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
119608A14 LINK ROD
NON HANDLELINK ROD
NON HANDLE -
210-823919 SCREW, (.375-24 x 1.500)
NON HANDLESCREW, (.375-24 x 1.500)
NON HANDLE -
312-8M0109680 WASHER, (.390 x .546 x .12)
NON HANDLEWASHER, (.390 x .546 x .12)
NON HANDLE -
412-37828 WASHER, (.390 x .625 x .062) Stainless Steel
NON HANDLEWASHER, (.390 x .625 x .062) Stainless Steel
NON HANDLE -
511-8M0042636 NUT, (.375-24)
NON HANDLENUT, (.375-24)
NON HANDLE -
6822397 PUCK
(ELECTRIC)PUCK
(ELECTRIC) -
73410-827402T5 SWIVEL BRACKET ASSEMBLY
(BLACK)SWIVEL BRACKET ASSEMBLY
(BLACK) -
73410-827402T5 SWIVEL BRACKET ASSEMBLY
(GRAY)SWIVEL BRACKET ASSEMBLY
(GRAY) -
823-8217711 BUSHINGBUSHING
-
923-821777 BUSHING (LOWER)BUSHING (LOWER)
-
1026-822404 SEALSEAL
-
1122-74036 FITTING, GreaseFITTING, Grease
-
1222-74036 FITTING, Grease
(HANDLE)FITTING, Grease
(HANDLE) -
1319624A1 SEAL KIT
NON HANDLESEAL KIT
NON HANDLE -
1425-29619 O-RING, (.583 x .103)
NON HANDLEO-RING, (.583 x .103)
NON HANDLE -
1523-78861 SPACER
NON HANDLESPACER
NON HANDLE -
1612-19619 WASHERWASHER
-
1711-826164 NUT, (.875-14)NUT, (.875-14)
-
18NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
1910-4008910 SCREW, (M8 x 10) Stainless Steel
MANUAL HANDLESCREW, (M8 x 10) Stainless Steel
MANUAL HANDLE -
1910-40011149 SCREW, (M8 x 25) Stainless Steel
ELECTRICSCREW, (M8 x 25) Stainless Steel
ELECTRIC -
208282451 SEAL
ELECTRICSEAL
ELECTRIC -
2112-19619 WASHERWASHER
-
228M0041938 TILT TUBETILT TUBE
-
2311-826164 NUT, (.875-14)NUT, (.875-14)
-
2417-821539 PIN, TrilobePIN, Trilobe
-
2523-823507 BUSHINGBUSHING
-
2617-822480 PIN, Pivot (UPPER)PIN, Pivot (UPPER)
-
2737-8237011 DECAL, Co-PilotDECAL, Co-Pilot
