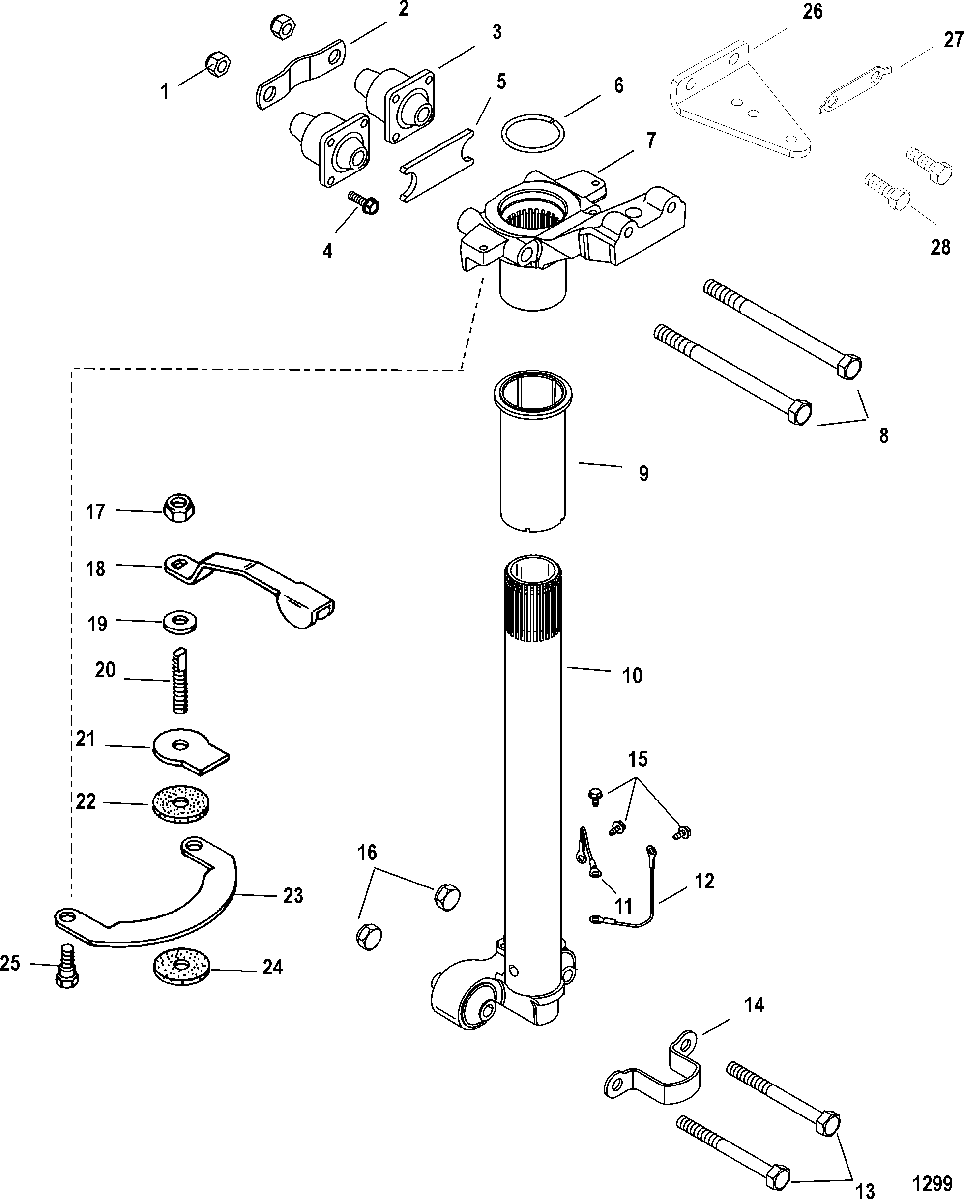

Steering Arm для Mariner - 25 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
111-896963 NUT, (M12)NUT, (M12)
-
2893773002 STRAPSTRAP
-
3826267T3 MOUNTMOUNT
-
410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
5826658 BUMPERBUMPER
-
653-89531 RING, RetainingRING, Retaining
-
78M0118183 ARM, Steering
(BLACK)ARM, Steering
(BLACK) -
78M0118183 ARM, Steering
(GRAY)ARM, Steering
(GRAY) -
810-898835001 BOLT, (M12 x 154)BOLT, (M12 x 154)
-
923-8279973 SPACER
(SHORT)SPACER
(SHORT) -
923-8279971 SPACER
(LONG)SPACER
(LONG) -
10850175A1 SWIVEL TUBE
(SHORT)SWIVEL TUBE
(SHORT) -
10826233T3 SWIVEL TUBE
(LONG)SWIVEL TUBE
(LONG) -
1184-88238T01 CABLE ASSEMBLYCABLE ASSEMBLY
-
1288238A13 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1310-823567105 SCREW, (M10 x 105) Hex Flange - Stainless SteelSCREW, (M10 x 105) Hex Flange - Stainless Steel
-
14893703 BRACKETBRACKET
-
1510-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
1611-40140 NUT, (M10)NUT, (M10)
-
1711-8M0042636 NUT, (.375-24)
HANDLENUT, (.375-24)
HANDLE -
18823792 LEVER
HANDLELEVER
HANDLE -
1912-29330 WASHER
HANDLEWASHER
HANDLE -
20821961 ROD (THREADED)
HANDLEROD (THREADED)
HANDLE -
21821957 BRAKE PLATE
HANDLEBRAKE PLATE
HANDLE -
228165621 DISC
HANDLEDISC
HANDLE -
238M0007471 PLATE
HANDLEPLATE
HANDLE -
248165621 DISC
HANDLEDISC
HANDLE -
2510-768042 SHOULDER SCREW, Hex
HANDLESHOULDER SCREW, Hex
HANDLE -
26893696 BRACKET
ELECTRICBRACKET
ELECTRIC -
2714-8M0009820 TAB WASHER
ELECTRICTAB WASHER
ELECTRIC -
2810-4000377 SCREW, (M10 x 30)
ELECTRICSCREW, (M10 x 30)
ELECTRIC
