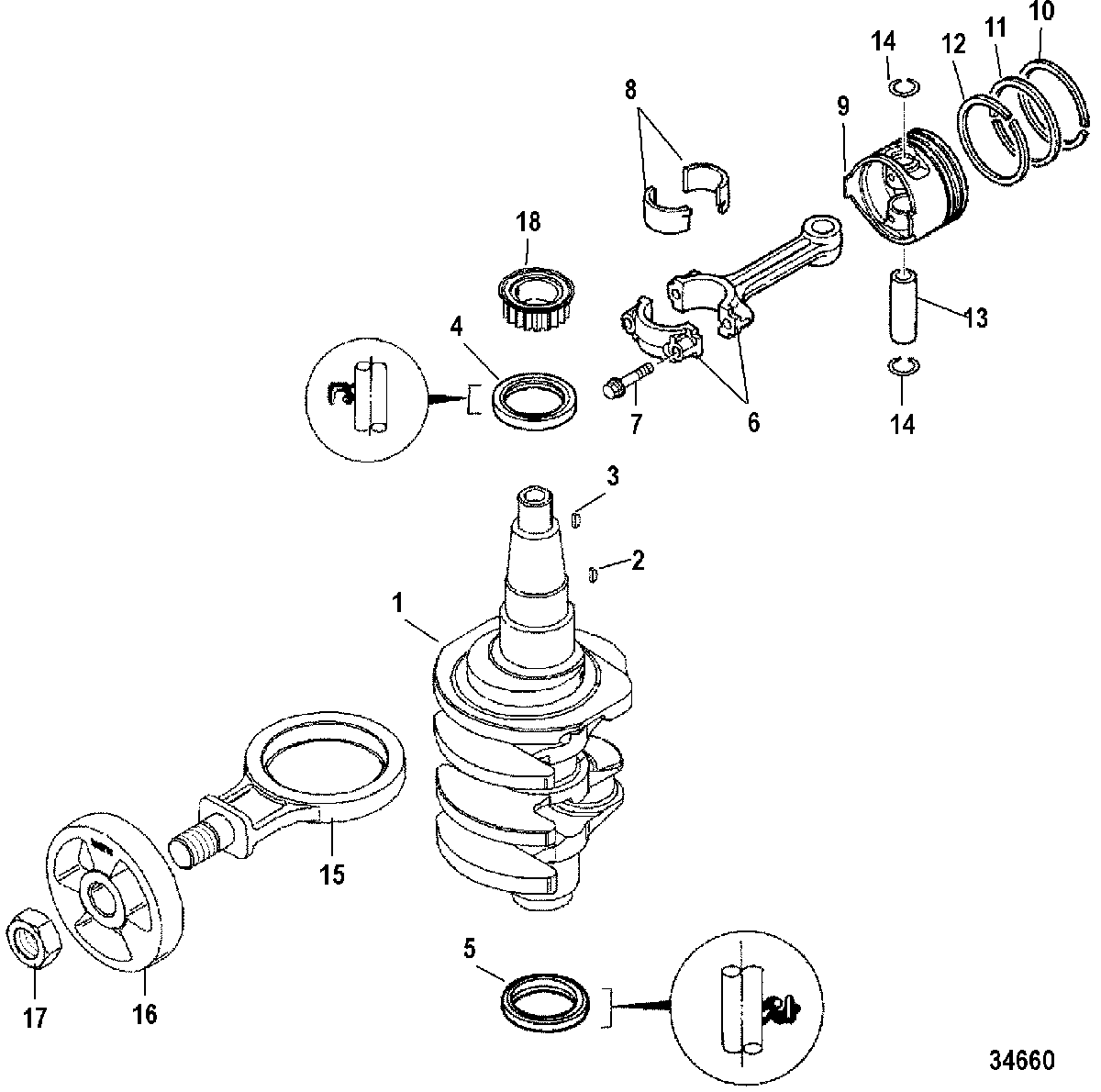

Crankshaft, Pistons and Connecting Rods для Mariner - 25 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
12400-8M0084517 CRANKSHAFTCRANKSHAFT
-
228-893761 KEYKEY
-
328-91800 KEY, WoodruffKEY, Woodruff
-
426-893949 SEALSEAL
-
526-893948 SEALSEAL
-
6600-893530T01 CONNECTING RODCONNECTING ROD
-
710-8M0049884 BOLTBOLT
-
823-893630 BEARING, BrownBEARING, Brown
-
823-893630001 BEARING, BlackBEARING, Black
-
823-893630002 BEARING, BlueBEARING, Blue
-
9700-893524T08 PISTON
(STANDARD)PISTON
(STANDARD) -
9700-8M0057775 PISTON
(.25 O/S) PISTON ONLYPISTON
(.25 O/S) PISTON ONLY -
9700-8M0057776 PISTON
(.50 O/S) PISTON ONLYPISTON
(.50 O/S) PISTON ONLY -
1039-893525A01 RING SET, Piston (TOP)
(STANDARD)RING SET, Piston (TOP)
(STANDARD) -
1039-893525A02 RING, Piston (TOP)
(.25MM O/S)RING, Piston (TOP)
(.25MM O/S) -
1039-893525A03 RING, Piston (TOP)
(.50MM O/S)RING, Piston (TOP)
(.50MM O/S) -
11NSS NOT SOLD SEPARATE, Piston Ring-Second
(STANDARD)NOT SOLD SEPARATE, Piston Ring-Second
(STANDARD) -
1139-893525A02 RING, Piston (2 ND.)
(.25MM O/S)RING, Piston (2 ND.)
(.25MM O/S) -
1139-893525A03 RING, Piston (2 ND.)
(.50MM O/S)RING, Piston (2 ND.)
(.50MM O/S) -
1239-893950 RING, OilRING, Oil
-
1341-893863 PIN, PistonPIN, Piston
-
1440-893529 RETAINERRETAINER
-
15652-831876A1 BALANCE RODBALANCE ROD
-
16701-831875T2 PISTONPISTON
-
1711-893789 NUTNUT
-
18833102T GEAR, DriveGEAR, Drive
-
-61-854236T00 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-830270A02 GASKET SETGASKET SET
