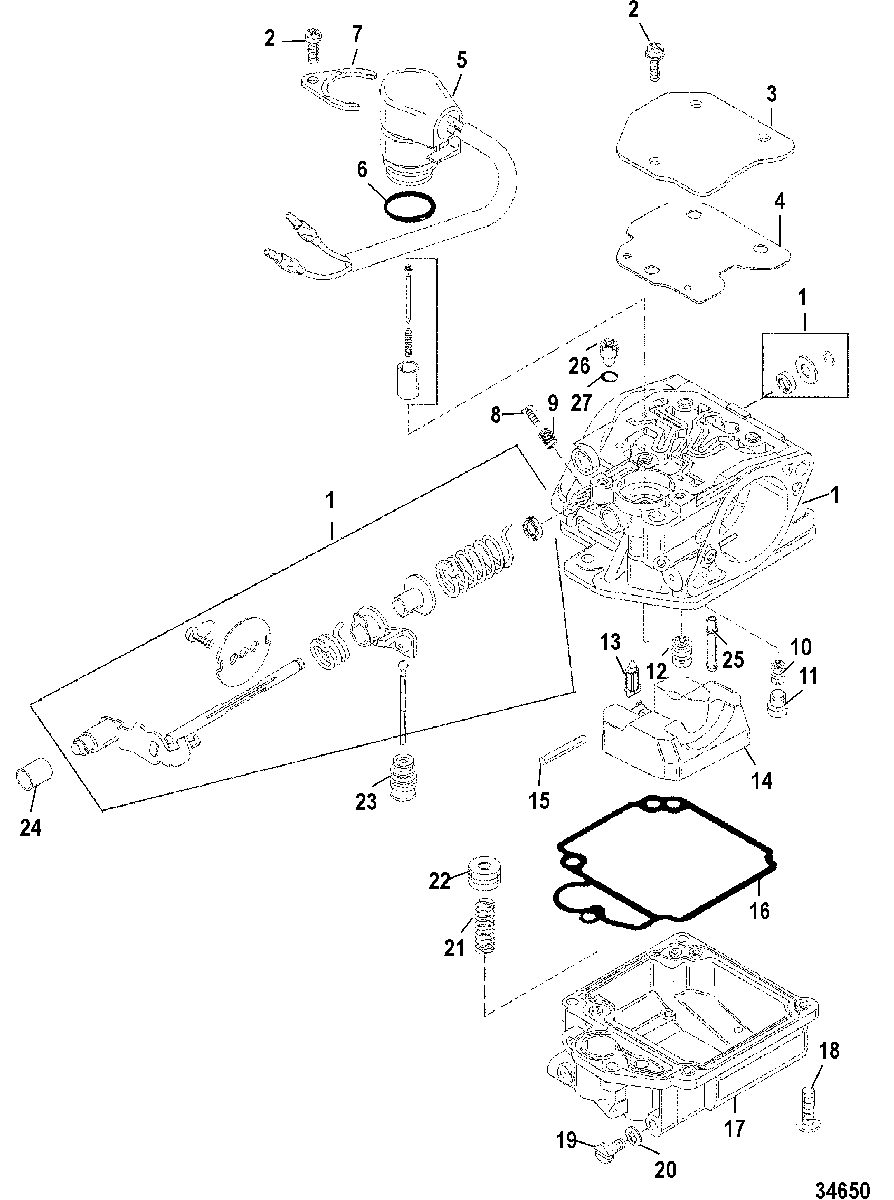

Carburetor для Mariner - 25 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
13329-883314T03 CARBURETORCARBURETOR
-
210-854246 SCREWSCREW
-
3854245 PLATEPLATE
-
4NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
5854254T ENRICHENERENRICHENER
-
6NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
7854255 PLATEPLATE
-
810-8542461 SCREWSCREW
-
924-854249 SPRINGSPRING
-
10855406 JET, Pilot (#50)JET, Pilot (#50)
-
1119-854248 PLUG, RubberPLUG, Rubber
-
128554061 JET, Main (#110)JET, Main (#110)
-
13854247 VALVE, FloatVALVE, Float
-
14854253 FLOATFLOAT
-
15NSS NOT SOLD SEPARATE, Float PinNOT SOLD SEPARATE, Float Pin
-
16NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
17854252 FLOAT BOWLFLOAT BOWL
-
1810-8542463 SCREWSCREW
-
1910-8542462 SCREW, DrainSCREW, Drain
-
20NSS NOT SOLD SEPARATE, WasherNOT SOLD SEPARATE, Washer
-
21NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
22854251 PLUNGERPLUNGER
-
23NSS NOT SOLD SEPARATE, Cap-RubberNOT SOLD SEPARATE, Cap-Rubber
-
2423-854244 COLLARCOLLAR
-
25854250 MAIN NOZZLEMAIN NOZZLE
-
268554062 JET (PO)JET (PO)
-
27NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
-854256 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
