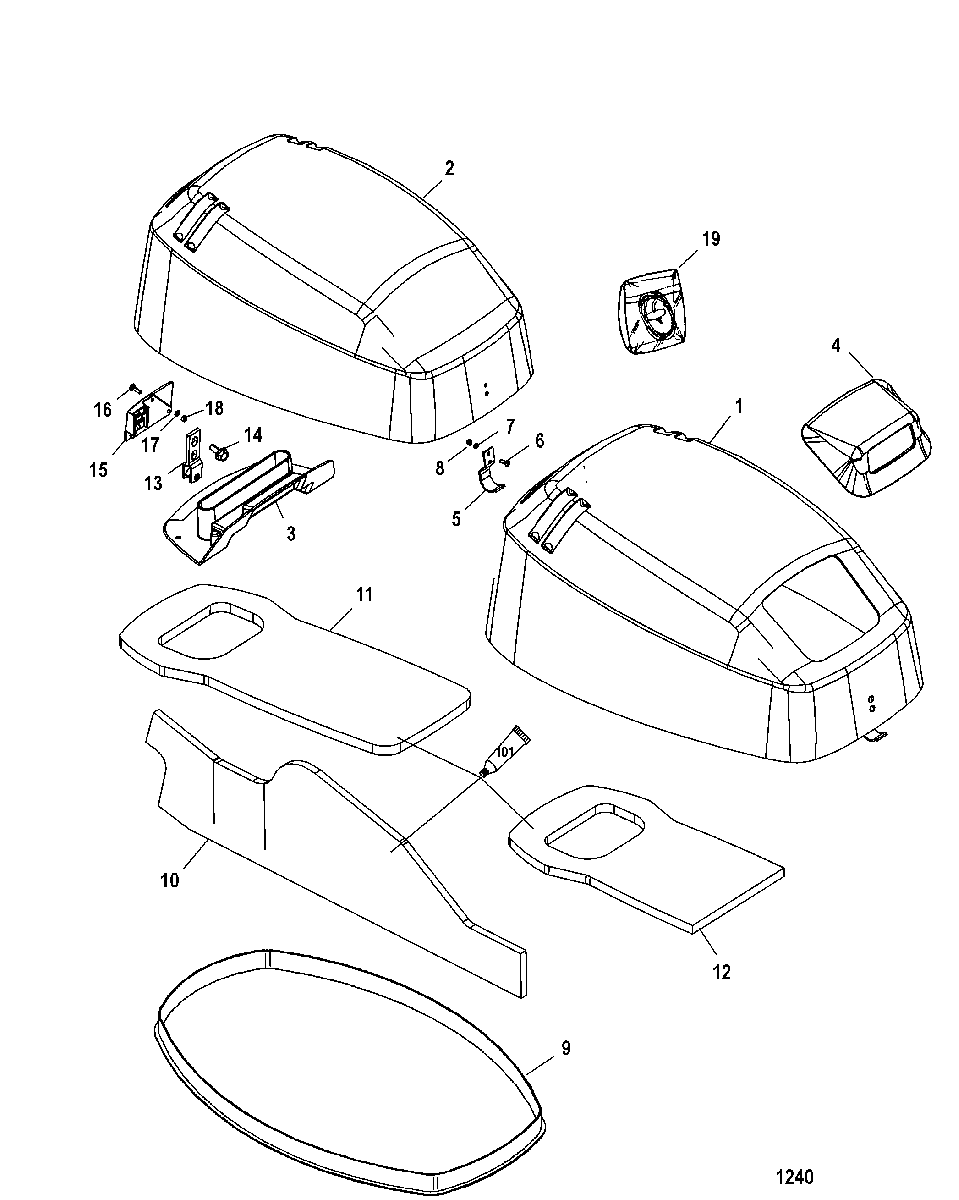

Top Cowl для Mariner - 25 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
14027-830562T6 TOP COWL ASSEMBLY
(SILVER) MANUALTOP COWL ASSEMBLY
(SILVER) MANUAL -
24027-830562T7 TOP COWL ASSEMBLY
(BLACK) ELECTRICTOP COWL ASSEMBLY
(BLACK) ELECTRIC -
24027-830562T8 TOP COWL ASSEMBLY
(SILVER) ELECTRICTOP COWL ASSEMBLY
(SILVER) ELECTRIC -
3NSS NOT SOLD SEPARATE, Induction InsertNOT SOLD SEPARATE, Induction Insert
-
4NSS NOT SOLD SEPARATE, Cowl Insert
(MANUAL)NOT SOLD SEPARATE, Cowl Insert
(MANUAL) -
5826291F1 LATCH
(BLACK)LATCH
(BLACK) -
5826291F1 LATCH
(SILVER)LATCH
(SILVER) -
610-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
811-8237515 NUT, (M4)NUT, (M4)
-
98M0043388 SEALSEAL
-
10852556A02 SOUND BLANKET KITSOUND BLANKET KIT
-
11NSS NOT SOLD SEPARATE, Sound Blanket-Top
(ELECTRIC)NOT SOLD SEPARATE, Sound Blanket-Top
(ELECTRIC) -
12NSS NOT SOLD SEPARATE, Sound Blanket-Top
(MANUAL)NOT SOLD SEPARATE, Sound Blanket-Top
(MANUAL) -
13893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
1410-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
158M0038412 BRACKETBRACKET
-
1610-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
1713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1811-8237515 NUT, (M4)NUT, (M4)
-
1947341A11 ROPE AND HANDLE KITROPE AND HANDLE KIT
