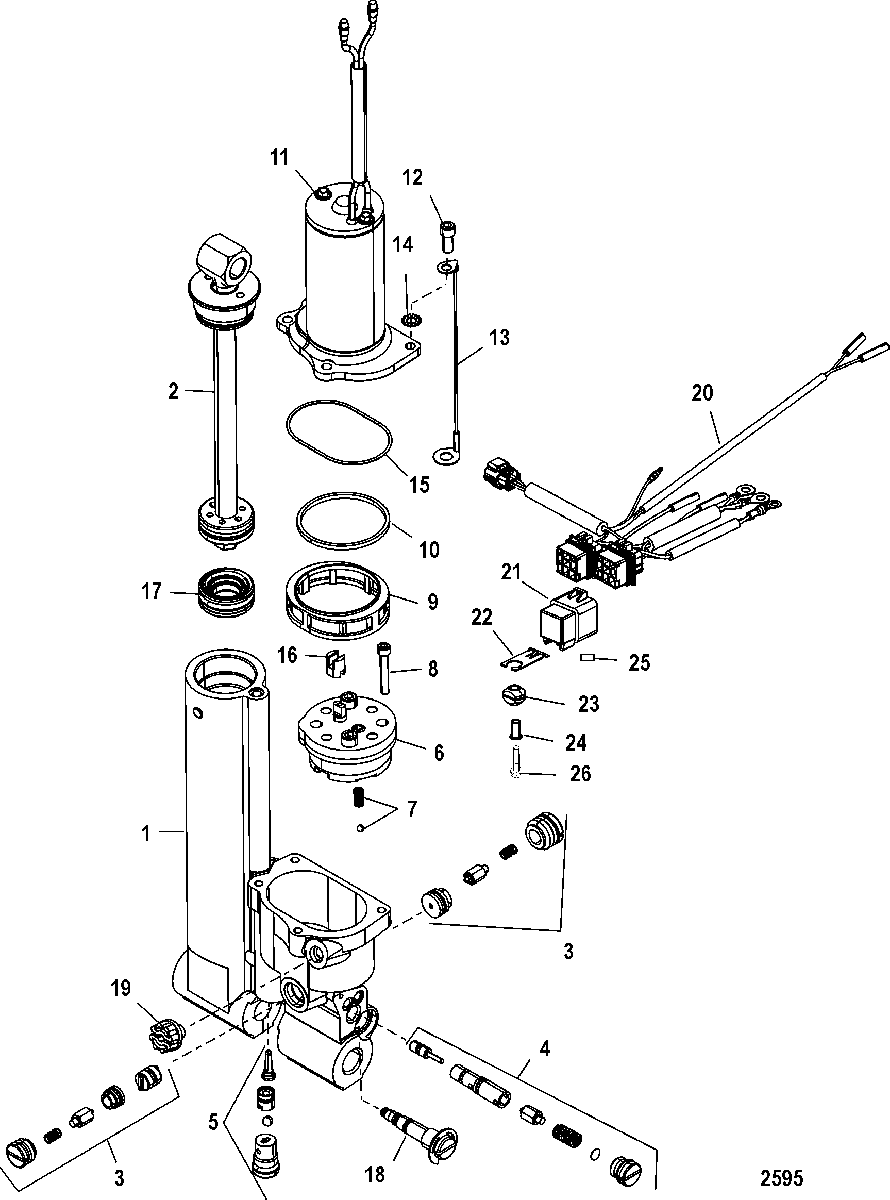

Power Trim для Mariner - 25 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1822344T14 POWER TRIMPOWER TRIM
-
-25-827668A1 O-RING KITO-RING KIT
-
2893931A01 SHOCK ROD ASSEMBLYSHOCK ROD ASSEMBLY
-
3827671A1 PILOT CHECK ASSEMBLYPILOT CHECK ASSEMBLY
-
4827672A1 TILT RELIEF VALVE ASSEMBLYTILT RELIEF VALVE ASSEMBLY
-
5827673A1 SEAT ASSEMBLY, SuctionSEAT ASSEMBLY, Suction
-
6827674A1 PUMP ASSEMBLYPUMP ASSEMBLY
-
7NSS NOT SOLD SEPARATE, Spring/down Relief BallNOT SOLD SEPARATE, Spring/down Relief Ball
-
8NSS NOT SOLD SEPARATE, Screw (10-32 x 1-1/4 Inches)NOT SOLD SEPARATE, Screw (10-32 x 1-1/4 Inches)
-
9NSS NOT SOLD SEPARATE, FilterNOT SOLD SEPARATE, Filter
-
10NSS NOT SOLD SEPARATE, Seal RingNOT SOLD SEPARATE, Seal Ring
-
11827675A1 MOTOR ASSEMBLYMOTOR ASSEMBLY
-
12NSS NOT SOLD SEPARATE, Screw (1/4-28 x 5/8 Inches)NOT SOLD SEPARATE, Screw (1/4-28 x 5/8 Inches)
-
1388238A15 CABLE ASSEMBLYCABLE ASSEMBLY
-
14NSS NOT SOLD SEPARATE, LockwasherNOT SOLD SEPARATE, Lockwasher
-
15NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
16NSS NOT SOLD SEPARATE, CouplerNOT SOLD SEPARATE, Coupler
-
17827676 PISTON, MemoryPISTON, Memory
-
18893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
1919-811613 PLUG ASSEMBLYPLUG ASSEMBLY
-
-84-826802A14 HARNESS/RELAY ASSEMBLY, TrimHARNESS/RELAY ASSEMBLY, Trim
-
2084-826802A9 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
21882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
22828102 BRACKETBRACKET
-
2325-818967 GROMMETGROMMET
-
2423-818968 BUSHINGBUSHING
-
25NSS NOT SOLD SEPARATE, Decal-Trim RelayNOT SOLD SEPARATE, Decal-Trim Relay
-
2610-8248326 SCREW, (M6 x 25)SCREW, (M6 x 25)
