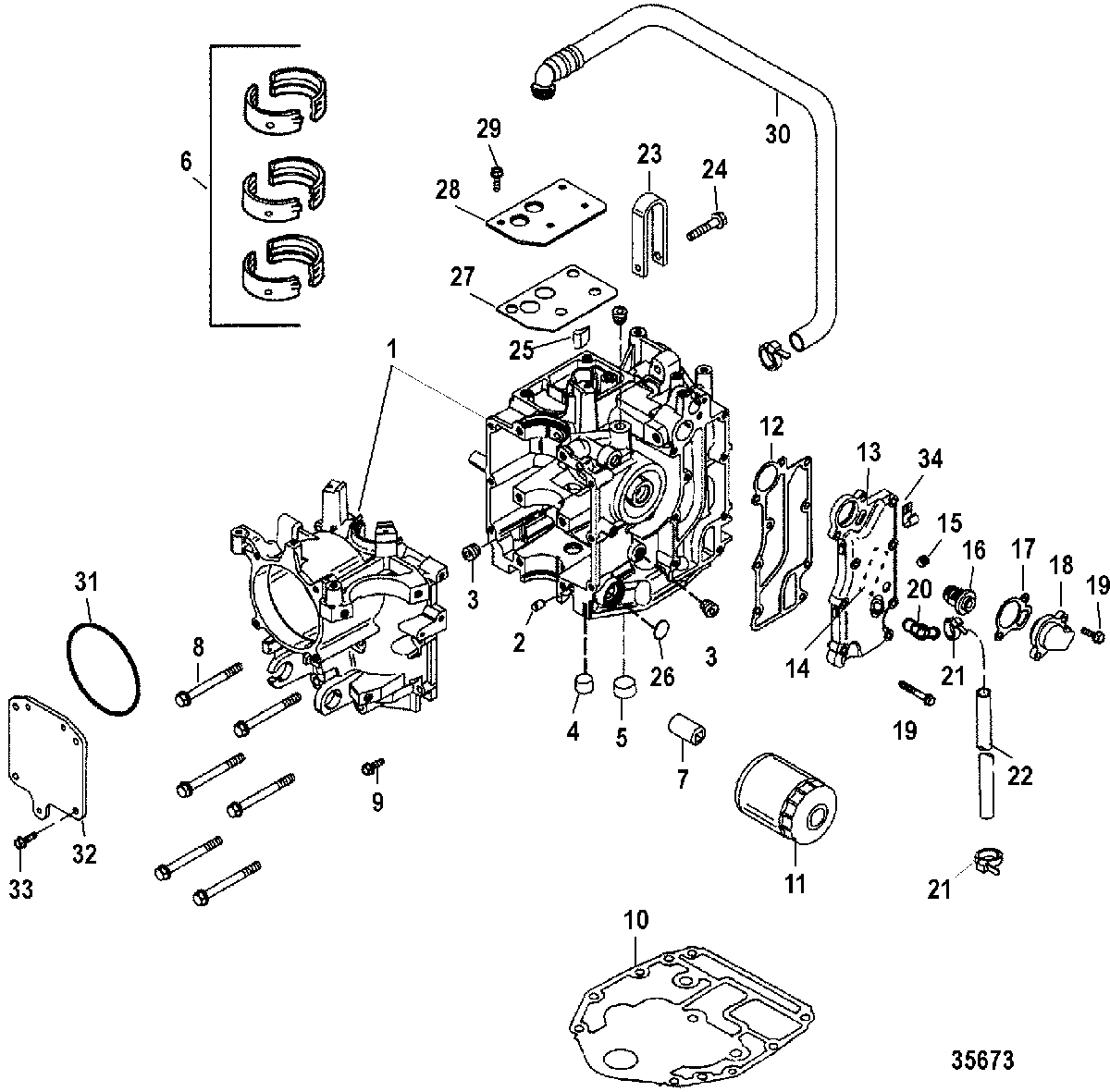

Cylinder Block для Mariner - 25 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
161-854236T00 CYLINDER BLOCKCYLINDER BLOCK
-
217-825010 PIN, DowelPIN, Dowel
-
322-479452 PLUGPLUG
-
422-384073 PLUG, Pipe (1/2-14)PLUG, Pipe (1/2-14)
-
522-416223 PIPE PLUG (3/4-14)PIPE PLUG (3/4-14)
-
623-893631 BEARING, BrownBEARING, Brown
-
623-893631001 BEARING, BlackBEARING, Black
-
623-893631002 BEARING, BlueBEARING, Blue
-
7822625 NIPPLE, (M20)NIPPLE, (M20)
-
810-82506182 SCREW, (M8 x 82)SCREW, (M8 x 82)
-
910-88348935 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
1027-8M0069692 GASKETGASKET
-
1135-8M0065103 FILTER, OilFILTER, Oil
-
1227-830298 GASKETGASKET
-
13830299T2 COVER, ExhaustCOVER, Exhaust
-
1437-855577A24 DECAL, EPA Label Information
(1998)DECAL, EPA Label Information
(1998) -
1522-479452 PLUGPLUG
-
16825212A1 THERMOSTATTHERMOSTAT
-
1727-824853 GASKETGASKET
-
188M0008243 COVERCOVER
-
1910-88348935 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2022-996642 ELBOWELBOW
-
2154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2232-8M0108349 TUBING, (28.00 Inches Bulk)TUBING, (28.00 Inches Bulk)
-
23893697 LIFTING EYELIFTING EYE
-
2410-82127335 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2535-8548091 FILTER, BreatherFILTER, Breather
-
26NSS NOT SOLD SEPARATE, Plug-Serial NumberNOT SOLD SEPARATE, Plug-Serial Number
-
27832734A2 GASKET, Breather CoverGASKET, Breather Cover
-
28832734A2 BREATHER COVERBREATHER COVER
-
2910-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
3032-77653A6 HOSEHOSE
-
3125-854722 O-RINGO-RING
-
328556692 COVERCOVER
-
3310-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
3454-65292 J CLIPJ CLIP
-
-61-854236T00 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-830270A02 GASKET SETGASKET SET
