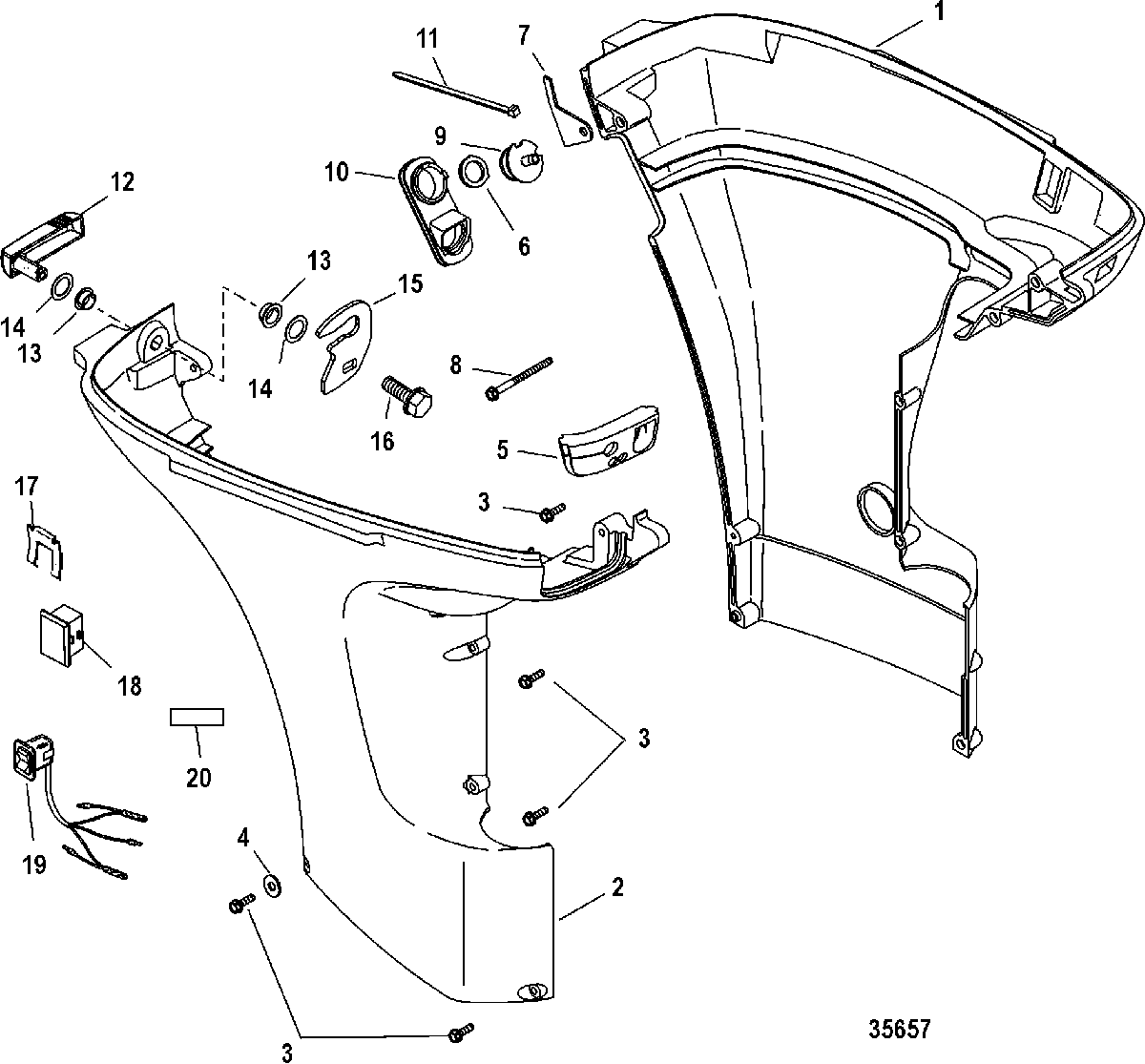

Bottom Cowl для Mariner - 25 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
14020-852554T1 BOTTOM COWL
(BLACK) SHORT-PORTBOTTOM COWL
(BLACK) SHORT-PORT -
14020-852554T2 BOTTOM COWL
(GRAY) SHORT-PORTBOTTOM COWL
(GRAY) SHORT-PORT -
14020-826277T1 BOTTOM COWL
(BLACK) LONG-PORTBOTTOM COWL
(BLACK) LONG-PORT -
14020-826277T1 BOTTOM COWL
(GRAY) LONG-PORTBOTTOM COWL
(GRAY) LONG-PORT -
24020-852555T5 BOTTOM COWL
(BLACK) SHORT-STBD.BOTTOM COWL
(BLACK) SHORT-STBD. -
24020-852555T2 BOTTOM COWL
(GRAY) SHORT-STBD.BOTTOM COWL
(GRAY) SHORT-STBD. -
24020-826278T7 BOTTOM COWL
(BLACK) LONG-STBD.BOTTOM COWL
(BLACK) LONG-STBD. -
24020-826278T7 BOTTOM COWL
(GRAY) LONG-STBD.BOTTOM COWL
(GRAY) LONG-STBD. -
310-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
5825238002 SEALSEAL
-
612-855576 WASHERWASHER
-
727-855627 GASKETGASKET
-
810-82684460 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
922-827948 FITTINGFITTING
-
10826273001 BOOTBOOT
-
1154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
12825782F1 LEVER, Cowl Latch
(BLACK)LEVER, Cowl Latch
(BLACK) -
12825782F1 LEVER, Cowl Latch
(GRAY)LEVER, Cowl Latch
(GRAY) -
1323-812707 BUSHINGBUSHING
-
1413-12134 WASHER, WaveWASHER, Wave
-
15893766 LATCH HOOKLATCH HOOK
-
1610-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1725-19564001 GROMMET
(NON POWER TRIM)GROMMET
(NON POWER TRIM) -
1725-19565002 GROMMET
(SPLIT - POWER TRIM)GROMMET
(SPLIT - POWER TRIM) -
18812830T01 PLUG
(NON POWER TRIM)PLUG
(NON POWER TRIM) -
198M0032848 RETAINER
(NON POWER TRIM)RETAINER
(NON POWER TRIM) -
2087-8M0042301 SWITCH
(POWER TRIM)SWITCH
(POWER TRIM)
