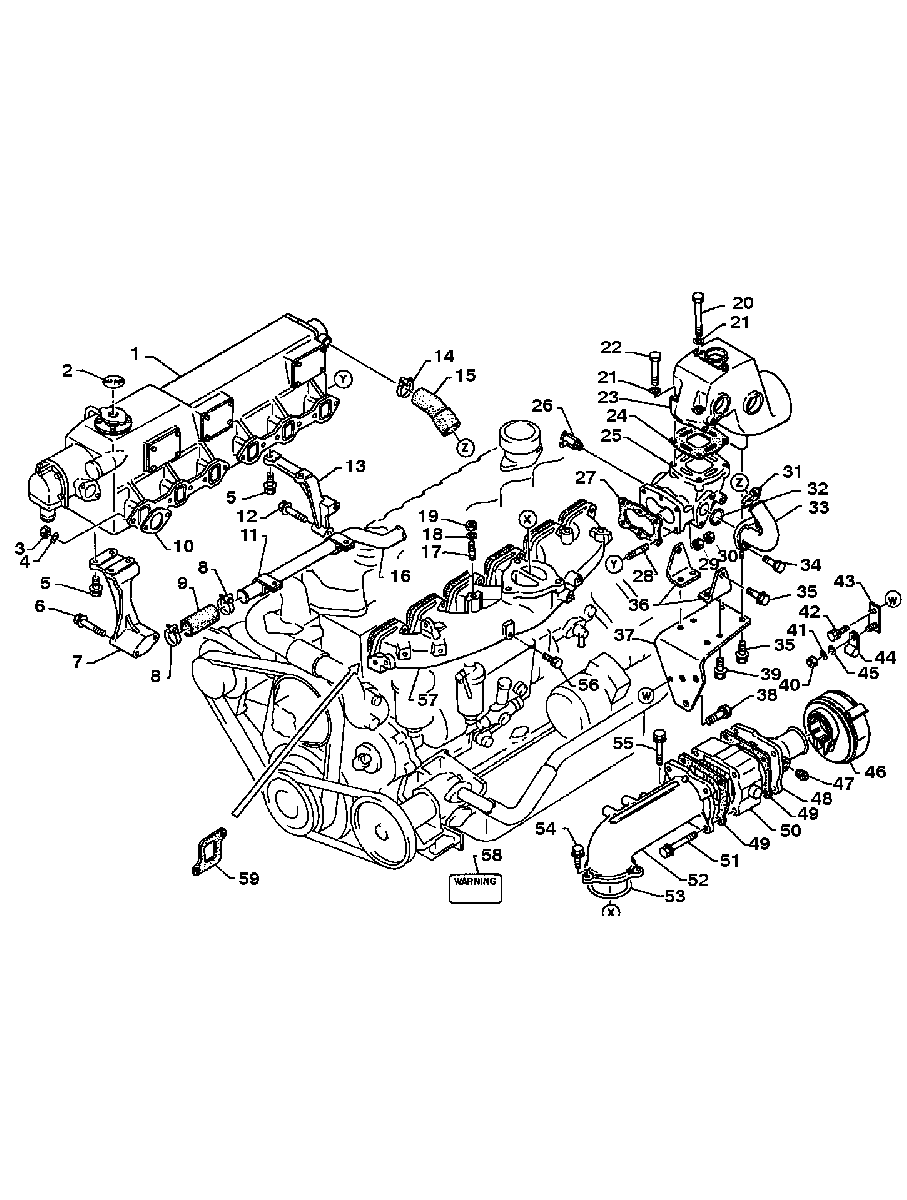

AIR INTAKE AND EXHAUST SYSTEM (175 H.P.) для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL
-
№АртикулНазвание
-
1831401110 MANIFOLD ASSEMBLY-Exhaust
SEE MANIFOLD ASSEMBLY-EXHAUSTMANIFOLD ASSEMBLY-Exhaust
SEE MANIFOLD ASSEMBLY-EXHAUST -
237-835614470 PLATE-CautionPLATE-Caution
-
3830910133 NUTNUT
-
412-836010180 WASHERWASHER
-
510-830110300 BOLTBOLT
-
610-831110952 BOLTBOLT
-
7831521160 BRACKET-Exhaust ManifoldBRACKET-Exhaust Manifold
-
854-836404220 CLAMPCLAMP
-
932-830234165 HOSE-WaterHOSE-Water
-
1027-831041100 GASKET ASSEMBLY-Exhaust ManifoldGASKET ASSEMBLY-Exhaust Manifold
-
1154-830119118 CLIPCLIP
-
1210-830110650 BOLTBOLT
-
13831521150 BRACKET-Exhaust ManifoldBRACKET-Exhaust Manifold
-
14836404420 CLAMPCLAMP
-
1532-830234326 HOSE-WaterHOSE-Water
-
1632-834999996 PIPE-CoolantPIPE-Coolant
-
17831008280 STUDSTUD
-
1813-838008200 LOCKWASHERLOCKWASHER
-
19830008070 NUTNUT
-
2010-832910195 BOLTBOLT
-
21838010250 LOCKWASHERLOCKWASHER
-
2210-832910187 BOLTBOLT
-
23830211111 PIPE ASSEMBLY-ExhaustPIPE ASSEMBLY-Exhaust
-
24831041141 GASKET ASSEMBLY-Exhaust ManifoldGASKET ASSEMBLY-Exhaust Manifold
-
25803982T PIPE ASSEMBLY-ExhaustPIPE ASSEMBLY-Exhaust
-
2622-830511100 COCK ASSEMBLY-CoolantCOCK ASSEMBLY-Coolant
-
2727-831041090 GASKET ASSEMBLY-Exhaust ManifoldGASKET ASSEMBLY-Exhaust Manifold
-
2816-836910103 STUDSTUD
-
2911-830910141 NUTNUT
-
3011-830910142 NUTNUT
-
31837805020 CLAMPCLAMP
-
3225-835135102 O RINGO RING
-
33836911160 PIPE-CoolantPIPE-Coolant
-
3410-831210351 BOLTBOLT
-
3510-831110301 BOLTBOLT
-
36834581760 BRACKET-Exhaust PipeBRACKET-Exhaust Pipe
-
37834094071 BRACKET ASSEMBLY-Exhaust PipeBRACKET ASSEMBLY-Exhaust Pipe
-
3810-830114300 BOLTBOLT
-
3910-839110202 BOLTBOLT
-
4011-830108070 NUTNUT
-
4113-838008200 LOCKWASHERLOCKWASHER
-
42839108161 BOLTBOLT
-
43839935260 HOLDER-ClipHOLDER-Clip
-
44839041140 CLIP ASSEMBLYCLIP ASSEMBLY
-
45836008220 WASHERWASHER
-
4635-837202770 CLEANER ASSEMBLY-Air
(SEE CLEANER ASSEMBLY - AIR (175 H.P.)CLEANER ASSEMBLY-Air
(SEE CLEANER ASSEMBLY - AIR (175 H.P.) -
4719-832017120 PLUGPLUG
-
48831132920 PIPE-IntakePIPE-Intake
-
4927-830115215 GASKETGASKET
-
50832011150 HEATER ASSEMBLY-Air IntakeHEATER ASSEMBLY-Air Intake
-
5110-831110801 BOLTBOLT
-
52831131311 PIPE-IntakePIPE-Intake
-
5325-834711050 GASKET-Cylinder LinerGASKET-Cylinder Liner
-
5410-831110301 BOLTBOLT
-
5510-831110702 BOLTBOLT
-
5610-839108202 BOLTBOLT
-
57831111274 MANIFOLD-IntakeMANIFOLD-Intake
-
5837-835796000 PLATE-CautionPLATE-Caution
-
5927-831712230 GASKET-Intake ManifoldGASKET-Intake Manifold
-
-FG1030 Gasket Set
Contents indicated by footnote 11.Gasket Set
Contents indicated by footnote 11.
