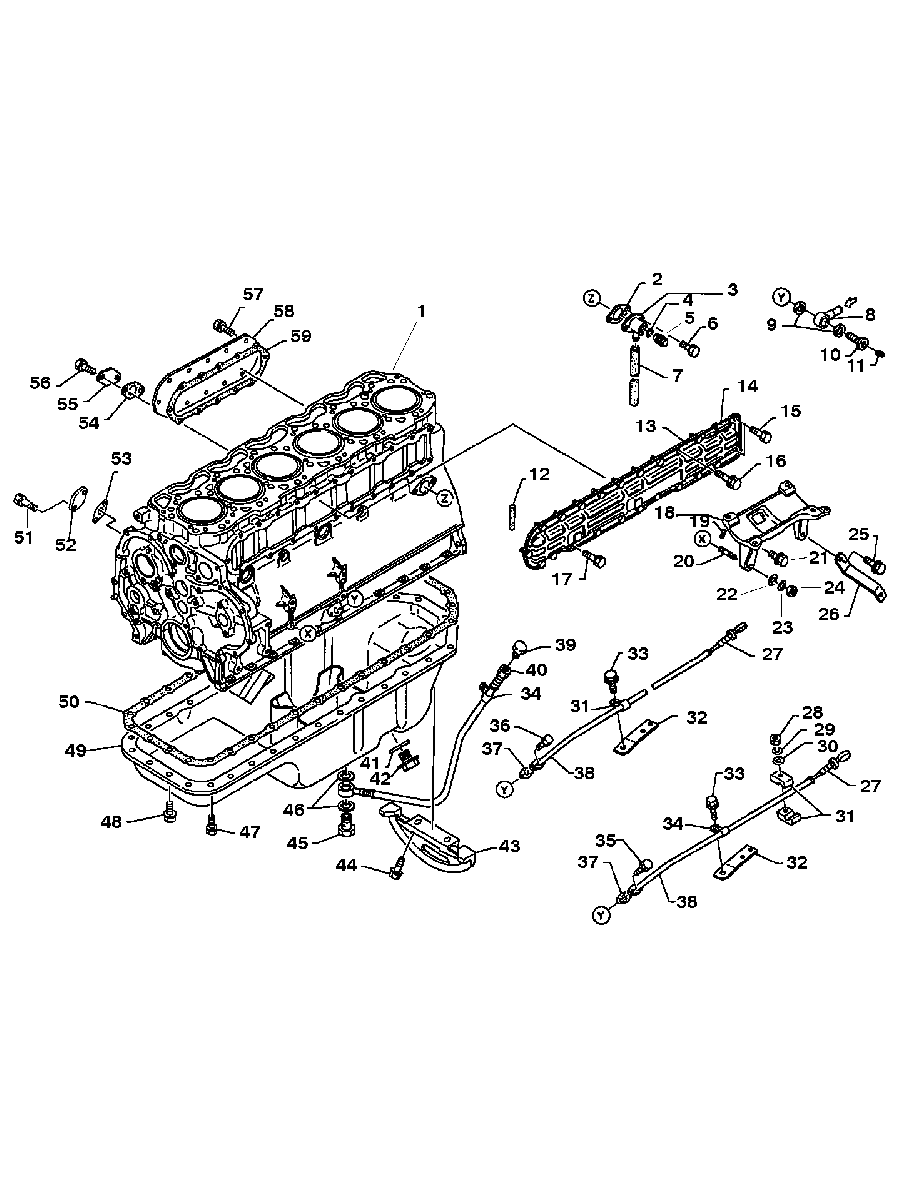

CYLINDER BLOCK COMPONENTS для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL
-
№АртикулНазвание
-
1834103900 BLOCK ASSEMBLY-Cylinder
(SEE BLOCK ASSEMBLY - CYLINDER)BLOCK ASSEMBLY-Cylinder
(SEE BLOCK ASSEMBLY - CYLINDER) -
2830115245 GASKETGASKET
-
3831801450 COCK ASSEMBLY-CoolantCOCK ASSEMBLY-Coolant
-
4834401325 O RINGO RING
-
5831811170 VALVE-Coolant CockVALVE-Coolant Cock
-
610-838108200 BOLTBOLT
-
7830234121 HOSE-WaterHOSE-Water
-
822-832681510 PIPE-Coolant By Pass (220 H.P.)
-PIPE-Coolant By Pass (220 H.P.)
- -
912-835422150 WASHER (220 H.P.)
-WASHER (220 H.P.)
- -
1010-830124295 BOLT (220 H.P.)
-BOLT (220 H.P.)
- -
1119-832910115 PLUG (220 H.P.)
-PLUG (220 H.P.)
- -
1227-832671010 GASKET-Water Gallery CoverGASKET-Water Gallery Cover
-
13832071040 COVER ASSEMBLY-Water Gallery (175 H.P.)COVER ASSEMBLY-Water Gallery (175 H.P.)
-
13832071040 COVER ASSEMBLY-Water Gallery (220 H.P.)
(SER. # 2371 AND BELOW)COVER ASSEMBLY-Water Gallery (220 H.P.)
(SER. # 2371 AND BELOW) -
13832071190 COVER ASSEMBLY-Water Gallery (220 H.P.)
(SERIAL # 2372 AND UP)COVER ASSEMBLY-Water Gallery (220 H.P.)
(SERIAL # 2372 AND UP) -
14832671030 GASKET-Water Gallery CoverGASKET-Water Gallery Cover
-
1510-838108250 BOLT (175 H.P.)BOLT (175 H.P.)
-
1510-838108250 BOLT (220 H.P.)BOLT (220 H.P.)
-
1610-839108252 BOLTBOLT
-
1710-838108200 BOLT (175 H.P.)BOLT (175 H.P.)
-
1710-838108200 BOLT (220 H.P.)BOLT (220 H.P.)
-
18834091010 BRACKET ASSEMBLY-Injector PumpBRACKET ASSEMBLY-Injector Pump
-
19830113120 HELISERTHELISERT
-
20834110300 STUDSTUD
-
2110-831110301 BOLTBOLT
-
2212-836010180 WASHERWASHER
-
23838010250 LOCKWASHERLOCKWASHER
-
24830010080 NUTNUT
-
25831110402 BOLTBOLT
-
26834922560 HOLDER-ClipHOLDER-Clip
-
27833013980 GAGE ASSEMBLY-Oil Level (175 H.P.)
(SERIAL # 2774 AND BELOW)GAGE ASSEMBLY-Oil Level (175 H.P.)
(SERIAL # 2774 AND BELOW) -
27833014120 GAGE ASSEMBLY-Oil Level (175 H.P.)
(SERIAL # 2775 AND UP)GAGE ASSEMBLY-Oil Level (175 H.P.)
(SERIAL # 2775 AND UP) -
27833013980 GAGE ASSEMBLY-Oil Level (220 H.P.)GAGE ASSEMBLY-Oil Level (220 H.P.)
-
2811-830108070 NUT (220 H.P.)
-NUT (220 H.P.)
- -
2913-838008200 LOCKWASHER (220 H.P.)
-LOCKWASHER (220 H.P.)
- -
3012-836008180 WASHER (220 H.P.)
-WASHER (220 H.P.)
- -
3154-839041300 CLIP ASSEMBLY (175 H.P.)
-CLIP ASSEMBLY (175 H.P.)
- -
3154-839042180 CLIP ASSEMBLY (220 H.P.)
-CLIP ASSEMBLY (220 H.P.)
- -
32834914480 BRACKET-PipeBRACKET-Pipe
-
3310-839108162 BOLTBOLT
-
34839041230 CLIP ASSEMBLY (175 H.P.)
-CLIP ASSEMBLY (175 H.P.)
- -
3454-839041300 CLIP ASSEMBLY (220 H.P.)
-CLIP ASSEMBLY (220 H.P.)
- -
3510-838206350 BOLT (220 H.P.)
-BOLT (220 H.P.)
- -
3610-838206350 BOLT-With Washer (175 H.P.)
(SERIAL # 3188 AND BELOW)BOLT-With Washer (175 H.P.)
(SERIAL # 3188 AND BELOW) -
36838206300 BOLT-With Washer(175 H.P.)
(SERIAL # 3189 AND UP)BOLT-With Washer(175 H.P.)
(SERIAL # 3189 AND UP)
