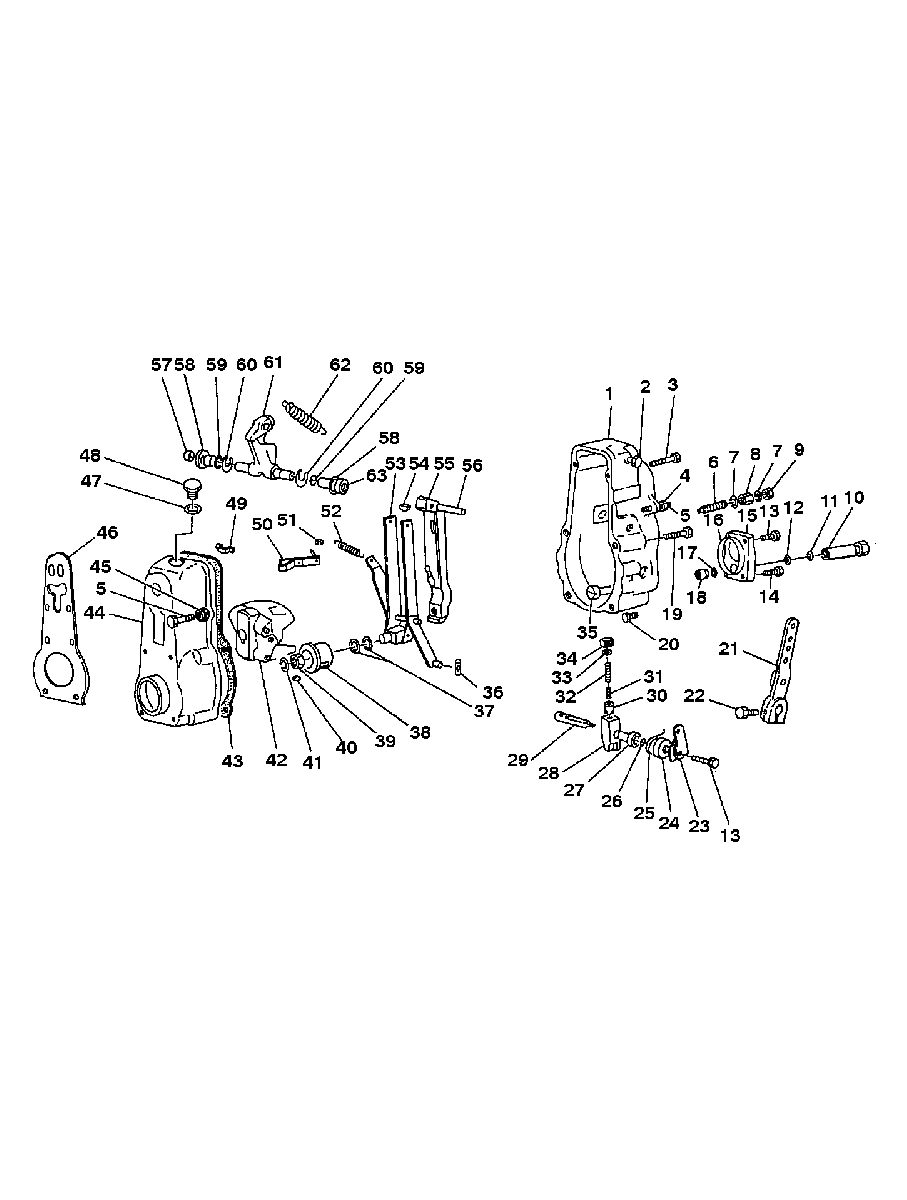

GOVERNOR ASSEMBLY (833301710) (220 H.P.) - PAGE 1/2 для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL
-
№АртикулНазвание
-
-833301710 GOVERNOR ASSEMBLYGOVERNOR ASSEMBLY
-
1833021420 COVER ASSEMBLY-GovernorCOVER ASSEMBLY-Governor
-
2838411560 PLUG-ScrewPLUG-Screw
-
3838151490 BOLTBOLT
-
4838251080 NUTNUT
-
5833951010 SCREW-StopperSCREW-Stopper
-
6834021330 SPRING-IdlingSPRING-Idling
-
7838431280 WASHERWASHER
-
8838251400 NUTNUT
-
9838252060 NUTNUT
-
10833421580 NUT-CapNUT-Cap
-
11835106118 O RINGO RING
-
12838471870 GASKETGASKET
-
13838151480 BOLTBOLT
-
14838151430 BOLTBOLT
-
15833861180 COVER-EndCOVER-End
-
16838171070 O RINGO RING
-
17838171080 O RINGO RING
-
18833321370 BUSHBUSH
-
19838151860 BOLTBOLT
-
20833931100 PLUG-Governor HousingPLUG-Governor Housing
-
21834999972 LEVER ASSEMBLY-Load ControlLEVER ASSEMBLY-Load Control
-
22838151200 BOLTBOLT
-
23833482010 LEVER-StopLEVER-Stop
-
24833511650 SEATSEAT
-
25837310103 SPRING-ReturnSPRING-Return
-
26838131240 O RINGO RING
-
27833221180 SPRINGSPRING
-
28830451030 LEVER ASSEMBLY-InnerLEVER ASSEMBLY-Inner
-
29833491120 LEVER-SlidingLEVER-Sliding
-
30837910128 PIN-StraightPIN-Straight
-
31833411610 SPRING-ReturnSPRING-Return
-
32833411620 SPRING-ReturnSPRING-Return
-
33833511320 SEATSEAT
-
34833511330 SEATSEAT
-
35833961320 SCREWSCREW
-
36833221620 BUSHBUSH
-
37838855120 SHIM (0.2)SHIM (0.2)
-
37838855130 SHIM (0.3)SHIM (0.3)
-
37838855140 SHIM (0.4)SHIM (0.4)
-
37838855150 SHIM (0.1)SHIM (0.1)
-
37838855160 SHIM (1.0)SHIM (1.0)
-
38833051080 SLEEVE ASSEMBLY-FlyweightSLEEVE ASSEMBLY-Flyweight
-
39833531070 NUTNUT
-
40838911040 KEYKEY
-
41838771220 WASHERWASHER
