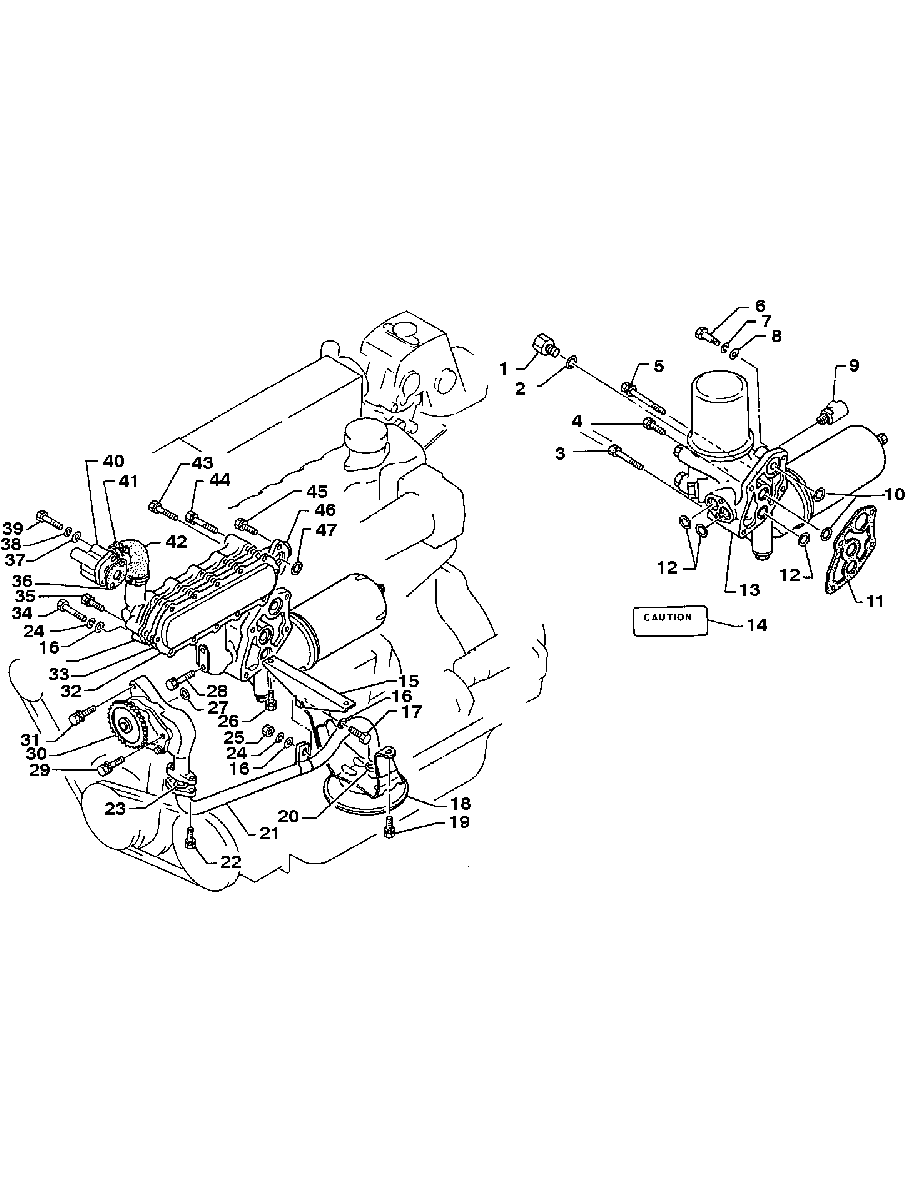

LUBRICATING SYSTEM (175 H.P.) для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL
-
№АртикулНазвание
-
1830124277 BOLTBOLT
-
212-835912111 WASHERWASHER
-
310-831110001 BOLTBOLT
-
410-831110352 BOLTBOLT
-
510-831910104 BOLTBOLT
-
6835910130 BOLTBOLT
-
7838012300 LOCKWASHERLOCKWASHER
-
8836012220 WASHERWASHER
-
922-830235125 CONNECTOR PIPECONNECTOR PIPE
-
10834402535 O RINGO RING
-
11836911190 GASKET-Oil FilterGASKET-Oil Filter
-
1225-834402135 O RINGO RING
-
13836002880 FILTER ASSEMBLY-Oil
(SEE FILTER ASSEMBLY - OIL)FILTER ASSEMBLY-Oil
(SEE FILTER ASSEMBLY - OIL) -
14835818181 PLATE-CautionPLATE-Caution
-
15830481160 BRACKET ASSEMBLY-Oil PipeBRACKET ASSEMBLY-Oil Pipe
-
1612-836010220 WASHERWASHER
-
1710-831110200 BOLTBOLT
-
18831041240 STRAINER ASSEMBLY-OilSTRAINER ASSEMBLY-Oil
-
1910-839108162 BOLTBOLT
-
2025-834402135 O RINGO RING
-
21834111370 PIPE-Oil Pump InletPIPE-Oil Pump Inlet
-
2210-838108250 BOLTBOLT
-
23834402535 O RINGO RING
-
24838010250 LOCKWASHERLOCKWASHER
-
25830010080 NUTNUT
-
26838908110 BOLTBOLT
-
2725-834402135 O RINGO RING
-
2810-839108552 BOLTBOLT
-
2910-831110651 BOLTBOLT
-
30831101382 PUMP ASSEMBLY-Oil
(SEE PUMP ASSEMBLY - OIL)PUMP ASSEMBLY-Oil
(SEE PUMP ASSEMBLY - OIL) -
3110-831110401 BOLTBOLT
-
32837151480 GASKET-Oil Cooler CaseGASKET-Oil Cooler Case
-
33837111210 CASE-Oil CoolerCASE-Oil Cooler
-
3410-835908103 BOLTBOLT
-
3510-839108452 BOLTBOLT
-
3627-836925101 GASKET-FlangeGASKET-Flange
-
3712-836008180 WASHERWASHER
-
3813-838008200 LOCKWASHERLOCKWASHER
-
3910-831008600 BOLTBOLT
-
40831341040 PIPE-Coolant Oil CoolerPIPE-Coolant Oil Cooler
-
41836404420 CLAMPCLAMP
-
4232-830234144 HOSE-WaterHOSE-Water
-
4310-839108652 BOLTBOLT
-
4410-839108802 BOLTBOLT
-
4510-839108202 BOLTBOLT
-
46837101020 COOLER ASSEMBLY-Oil
(SEE COOLER ASSEMBLY - OIL)COOLER ASSEMBLY-Oil
(SEE COOLER ASSEMBLY - OIL) -
47834402936 O RINGO RING
-
-FG1030 Gasket Set
Contents indicated by footnote 11.Gasket Set
Contents indicated by footnote 11.
