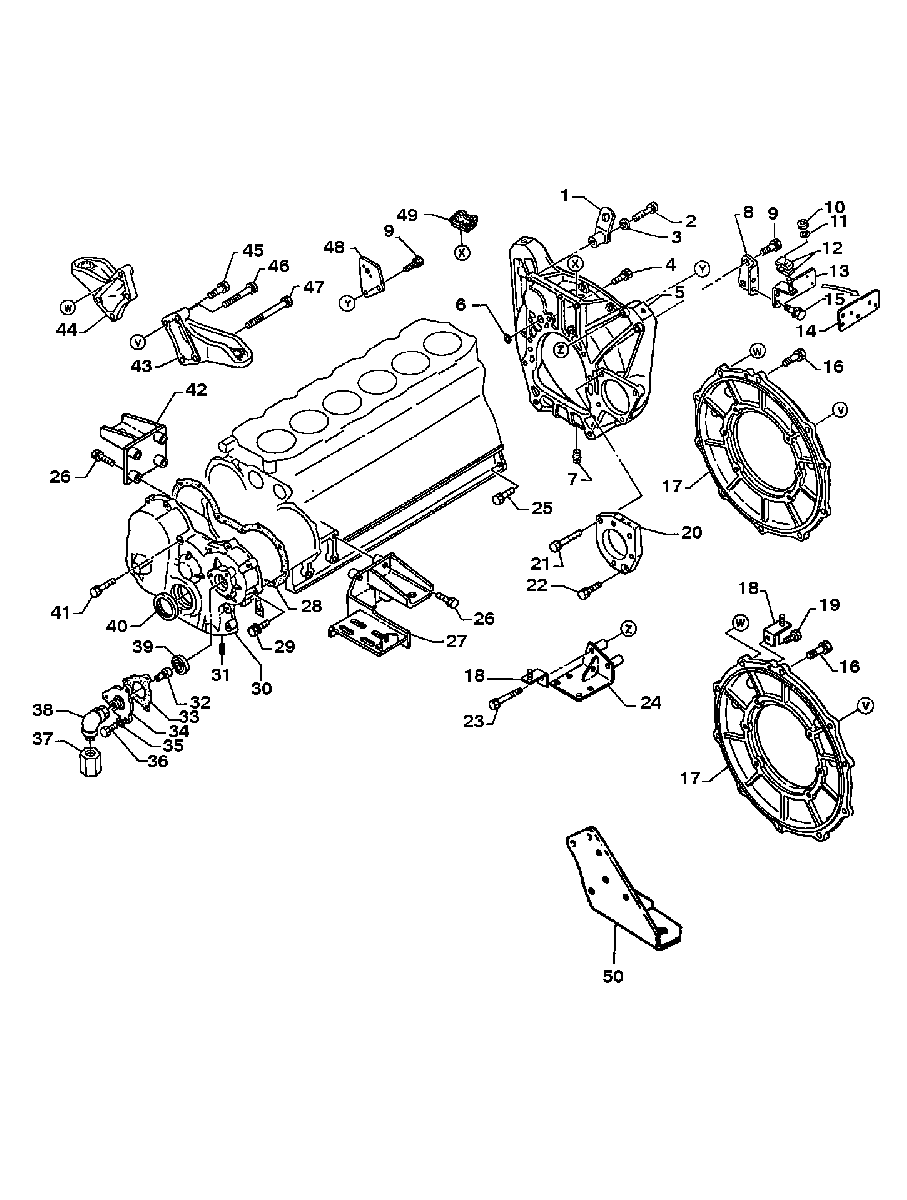

TIMING GEAR COVER AND FLYWHEEL HOUSING для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL
-
№АртикулНазвание
-
1832031020 HANGER ASSEMBLY-Engine (220 H.P.)HANGER ASSEMBLY-Engine (220 H.P.)
-
2830912123 BOLTBOLT
-
3830116279 SPACERSPACER
-
410-831110403 BOLTBOLT
-
5833511430 HOUSING-FlywheelHOUSING-Flywheel
-
625-835123107 O RINGO RING
-
719-832910115 PLUGPLUG
-
8836911200 BRACKET-Solenoid (175 H.P.)BRACKET-Solenoid (175 H.P.)
-
910-830114300 BOLT (175 H.P.)BOLT (175 H.P.)
-
10830008070 NUT (175 H.P.)
(SERIAL # 2774 AND BELOW)NUT (175 H.P.)
(SERIAL # 2774 AND BELOW) -
1113-838008200 LOCKWASHER (175 H.P.)
(SERIAL # 2774 AND BELOW)LOCKWASHER (175 H.P.)
(SERIAL # 2774 AND BELOW) -
1254-839042180 CLIP ASSEMBLY (175 H.P.)
(SERIAL # 2774 AND BELOW)CLIP ASSEMBLY (175 H.P.)
(SERIAL # 2774 AND BELOW) -
13836911221 BRACKET-Solenoid (175 H.P.)
(SERIAL # 2774 AND BELOW)BRACKET-Solenoid (175 H.P.)
(SERIAL # 2774 AND BELOW) -
14836911490 BRACKET-Solenoid (175 H.P.)
(SERIAL # 2775 AND UP)BRACKET-Solenoid (175 H.P.)
(SERIAL # 2775 AND UP) -
1510-839108201 BOLT (175 H.P.)BOLT (175 H.P.)
-
1610-831110401 BOLTBOLT
-
17833513481 HOUSING-FlywheelHOUSING-Flywheel
-
18839931640 HOLDER-Clip (220 H.P.)HOLDER-Clip (220 H.P.)
-
19831110252 BOLT (220 H.P.)BOLT (220 H.P.)
-
20830116335 SPACERSPACER
-
2110-830112400 BOLTBOLT
-
2210-830112250 BOLTBOLT
-
2310-831110602 BOLTBOLT
-
24836011121 BRACKET ASSEMBLY-SolenoidBRACKET ASSEMBLY-Solenoid
-
2510-830912116 BOLTBOLT
-
2610-831912438 BOLTBOLT
-
27833021283 BRACKET ASSEMBLY-Engine MountingBRACKET ASSEMBLY-Engine Mounting
Производитель Mercury-Mercruiser -
2827-833291990 GASKET-Timing Gear Case CoverGASKET-Timing Gear Case Cover
Производитель Mercury-Mercruiser -
2910-839108401 BOLT (175 H.P.)BOLT (175 H.P.)
-
2910-839108401 BOLT (220 H.P.)BOLT (220 H.P.)
-
30833201150 COVER ASSEMBLY-Timing Gear CaseCOVER ASSEMBLY-Timing Gear Case
-
31830113120 HELISERTHELISERT
-
32836191020 SHAFT-Tach DriveSHAFT-Tach Drive
-
3327-830115141 GASKETGASKET
-
34836451030 PLATE-SetPLATE-Set
-
3513-838008200 LOCKWASHERLOCKWASHER
-
36831108200 BOLTBOLT
-
37836941122 ADAPTER-Tach GenADAPTER-Tach Gen
-
3822-836401020 DRIVE ASSEMBLY-TachDRIVE ASSEMBLY-Tach
-
3926-832820111 SEAL-OilSEAL-Oil
-
4026-832865126 SEAL-OilSEAL-Oil
-
4110-839108601 BOLTBOLT
-
42833011351 BRACKET ASSEMBLY-Engine MountingBRACKET ASSEMBLY-Engine Mounting
Производитель Mercury-Mercruiser -
43833251500 BRACKET-Engine MountingBRACKET-Engine Mounting
-
44833211680 BRACKET-Engine MountingBRACKET-Engine Mounting
-
45831210401 BOLT-With WasherBOLT-With Washer
-
46831210851 BOLT-With WasherBOLT-With Washer
-
47831910119 BOLTBOLT
-
48839681350 BRACKET-Switch (175 H.P.)BRACKET-Switch (175 H.P.)
-
4925-833611170 COVER-Dust-Flywheel HousingCOVER-Dust-Flywheel Housing
-
50833031332 BRACKET-Engine Mount (RR)BRACKET-Engine Mount (RR)
-
50833041221 BRACKET-Engine Mount (LHR)BRACKET-Engine Mount (LHR)
-
-831002052 STARTER ASSEMBLYSTARTER ASSEMBLY
-
-831002052 STARTER ASSEMBLYSTARTER ASSEMBLY
-
42831391040 LEADWIRELEADWIRE
-
43832191120 WASHER-StartWASHER-Start
-
4411-832311040 NUT-StartNUT-Start
-
45831121720 BOLT-Housing SetBOLT-Housing Set
-
46832621100 HOLDERHOLDER
-
47832481280 PLATE-InslPLATE-Insl
-
48831591270 COVER-Magnet SwitchCOVER-Magnet Switch
-
49831010060 NUT-Lock
(FOR ?831001672! STARTER)NUT-Lock
(FOR ?831001672! STARTER) -
50832311030 NUT-StartNUT-Start
-
51838731380 WASHERWASHER
-
52835101174 O RINGO RING
-
53831201320 YOKE ASSEMBLY-StartYOKE ASSEMBLY-Start
-
54838731380 WASHERWASHER
-
55832411020 WASHER-Contact Plate LockWASHER-Contact Plate Lock
-
56831351210 BUSH-Terminal InslBUSH-Terminal Insl
-
57835105107 O RINGO RING
-
58831251150 BUSH-Center BearingBUSH-Center Bearing
-
59831121660 BOLT-Housing SetBOLT-Housing Set
-
60832631090 PIN-WeightPIN-Weight
-
61831121730 BOLT-Housing SetBOLT-Housing Set
-
62831211220 COIL-Start FieldCOIL-Start Field
-
63831351220 BUSH-Terminal InslBUSH-Terminal Insl
-
64835110126 O RINGO RING
-
65831251140 BUSH-Center BearingBUSH-Center Bearing
-
66832191200 WASHERWASHER
-
67831121740 BOLT-Housing SetBOLT-Housing Set
-
68831381240 PACKINGPACKING
-
69831121650 BOLT-Housing SetBOLT-Housing Set
-
70831391030 LEADWIRELEADWIRE
-
71831401240 HOLDER ASSEMBLY
(FOR ?831001671! STARTER)HOLDER ASSEMBLY
(FOR ?831001671! STARTER) -
71831401241 HOLDER ASSEMBLY
(FOR ?831001672! STARTER)HOLDER ASSEMBLY
(FOR ?831001672! STARTER) -
72831431120 SPRING-Start Brush
(FOR ?831001671! STARTER)SPRING-Start Brush
(FOR ?831001671! STARTER) -
7224-831431121 SPRING-Start Brush
(FOR ?831001672! STARTER)SPRING-Start Brush
(FOR ?831001672! STARTER) -
73831421240 BRUSH-Start
(FOR ?831001671! STARTER)BRUSH-Start
(FOR ?831001671! STARTER) -
73831421241 BRUSH-Start
(FOR ?831001672! STARTER)BRUSH-Start
(FOR ?831001672! STARTER) -
74834999962 PACKINGPACKING
-
75832191170 WASHER-StartWASHER-Start
-
76831111350 BOSH-Drive HousingBOSH-Drive Housing
-
77831371100 FELT-OilFELT-Oil
-
78831331340 FRAME-Commutator EndFRAME-Commutator End
-
79832411020 WASHER-Contact Plate LockWASHER-Contact Plate Lock
-
80838731380 WASHERWASHER
-
81831121660 BOLT-Housing SetBOLT-Housing Set
