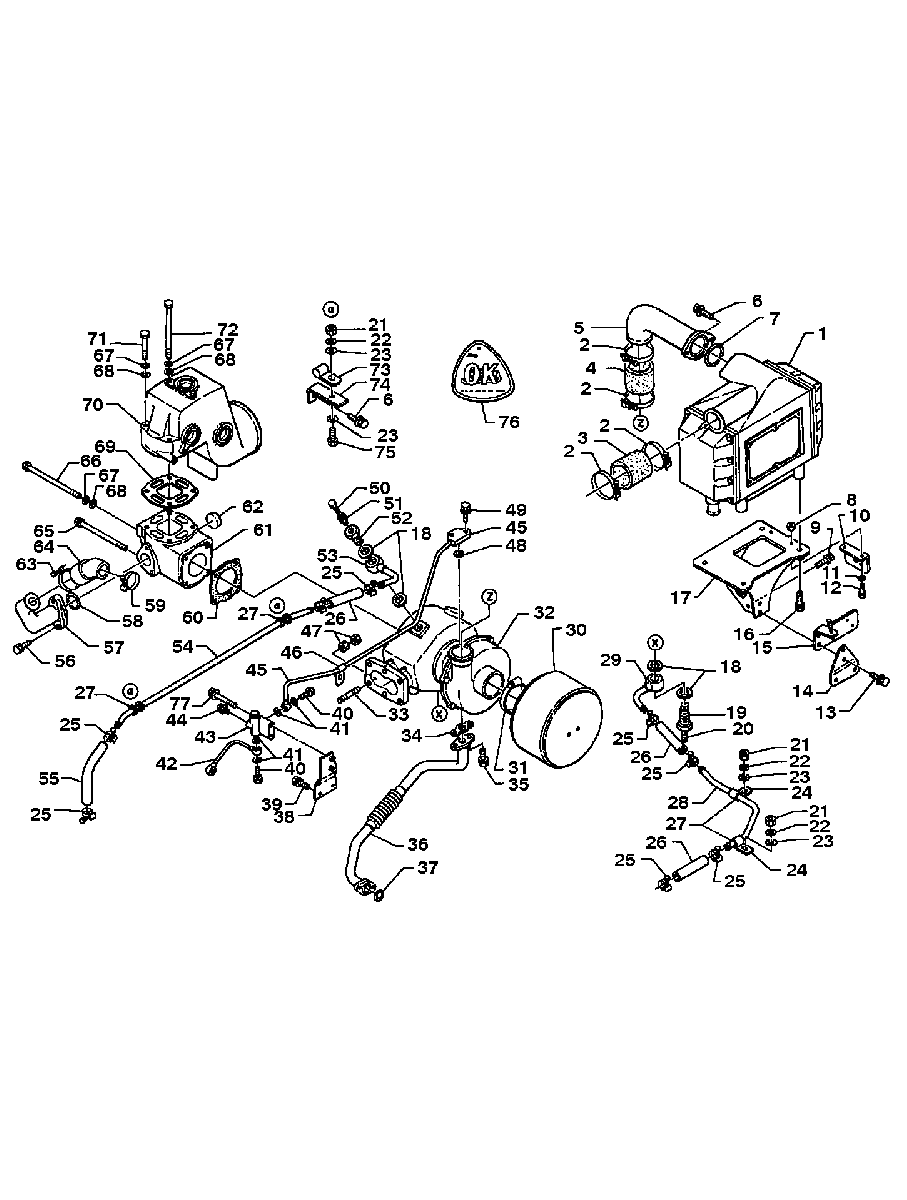

TURBOCHARGER-220 H.P. (DESIGN III) - PAGE 1/2 для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL
-
№АртикулНазвание
-
1833001201 INTERCOOLER ASSEMBLY
(SEE INTERCOOLER ASSY 833001201)INTERCOOLER ASSEMBLY
(SEE INTERCOOLER ASSY 833001201) -
2836975103 CLAMPCLAMP
-
332-830233363 HOSE-AirHOSE-Air
-
432-830233438 HOSE-AirHOSE-Air
-
5831133301 PIPE-IntakePIPE-Intake
-
610-839108252 BOLTBOLT
-
725-835160102 O RINGO RING
-
811-830006050 NUTNUT
-
910-830114300 BOLTBOLT
-
10839681360 BRACKET-SwitchBRACKET-Switch
-
11836006140 WASHERWASHER
-
12831006160 BOLTBOLT
-
13839108251 BOLTBOLT
-
14836911450 BRACKET-SolenoidBRACKET-Solenoid
-
15836911221 BRACKET-SolenoidBRACKET-Solenoid
-
1610-839108162 BOLTBOLT
-
17833021060 BRACKET ASSEMBLY-IntercoolerBRACKET ASSEMBLY-Intercooler
-
1812-835422150 WASHERWASHER
-
19830124317 BOLTBOLT
-
20832217120 PLUGPLUG
-
21830008070 NUTNUT
-
2213-838008200 LOCKWASHERLOCKWASHER
-
2312-836008180 WASHERWASHER
-
24839041970 CLIP ASSEMBLYCLIP ASSEMBLY
-
25837802420 CLAMPCLAMP
-
2632-830234114 HOSE-WaterHOSE-Water
-
27837916107 GROMMETGROMMET
-
2832-832681500 PIPE-Coolant By PassPIPE-Coolant By Pass
-
2932-832681520 PIPE-Coolant By PassPIPE-Coolant By Pass
-
30837204321 CLEANER ASSEMBLY-Air
(SEE CLEANER ASSY -AIR 220HP 837204321)CLEANER ASSEMBLY-Air
(SEE CLEANER ASSY -AIR 220HP 837204321) -
31837711360 CLAMP-Air CleanerCLAMP-Air Cleaner
-
32831001980 TURBOCHARGER ASSEMBLY
(SEE TURBOCHARGER ASSY 831001980)TURBOCHARGER ASSEMBLY
(SEE TURBOCHARGER ASSY 831001980) -
3316-836910106 STUDSTUD
-
3427-831351070 GASKET-Oil OutletGASKET-Oil Outlet
-
35838110250 BOLTBOLT
-
3632-831071271 PIPE ASSEMBLY-Oil OutletPIPE ASSEMBLY-Oil Outlet
-
3725-835131103 O RINGO RING
-
38831921041 BRACKET-Oil Pipe TurbochargerBRACKET-Oil Pipe Turbocharger
-
3910-838108200 BOLTBOLT
-
4010-831912179 BOLTBOLT
-
4112-835912111 WASHERWASHER
-
4232-831711080 PIPE-Oil InletPIPE-Oil Inlet
-
43836021070 VALVE ASSEMBLY-Oil PressureVALVE ASSEMBLY-Oil Pressure
-
44830912102 PLUGPLUG
-
4532-831711540 PIPE-Oil InletPIPE-Oil Inlet
-
46839041380 CLIP ASSEMBLYCLIP ASSEMBLY
-
-FG1030 Gasket Set
Contents indicated by footnote 11.Gasket Set
Contents indicated by footnote 11.
