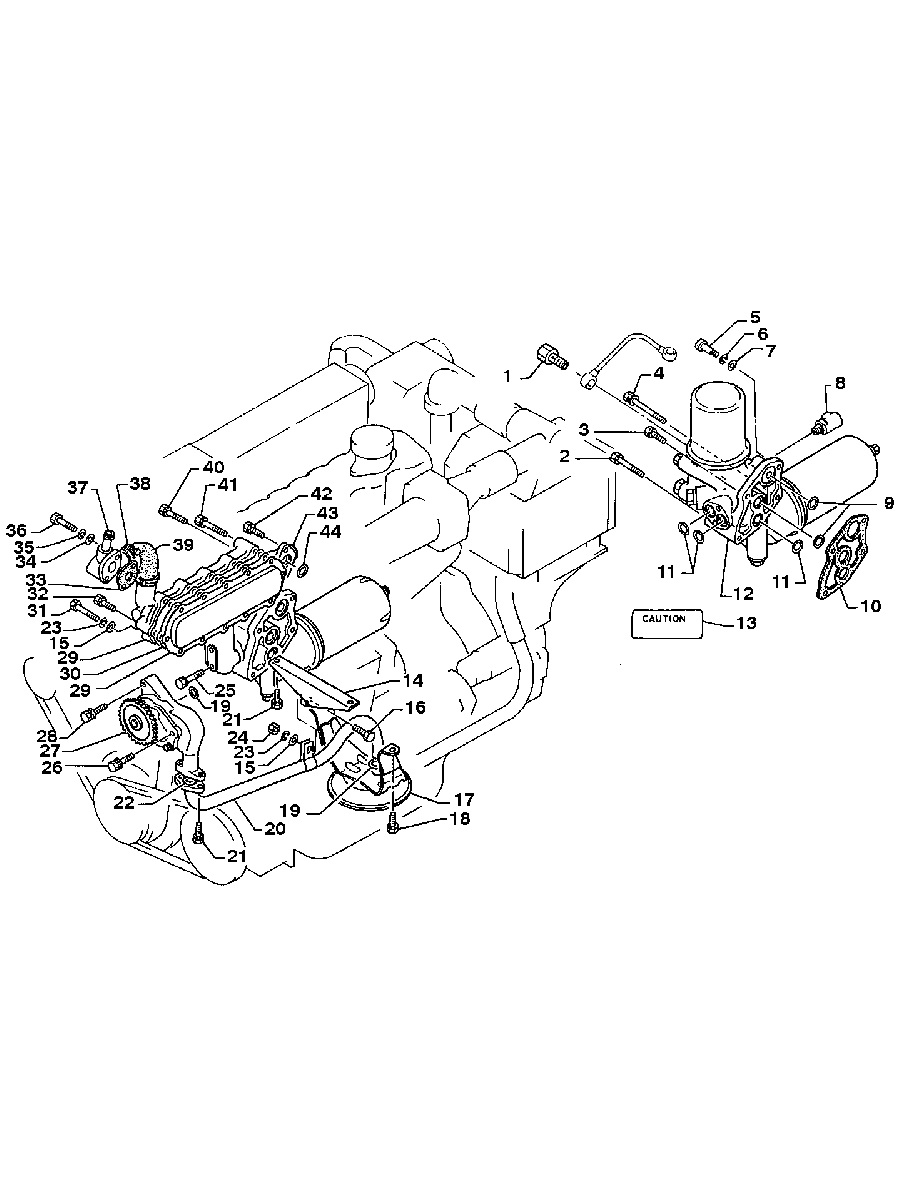

LUBRICATING SYSTEM (220 H.P.) для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL
-
№АртикулНазвание
-
1830124294 BOLTBOLT
-
210-831110001 BOLTBOLT
-
310-831110352 BOLTBOLT
-
410-831910104 BOLTBOLT
-
5835910130 BOLTBOLT
-
6838012300 LOCKWASHERLOCKWASHER
-
7836012220 WASHERWASHER
-
822-830235125 CONNECTOR PIPECONNECTOR PIPE
-
9834402531 O RINGO RING
-
10836911190 GASKET-Oil FilterGASKET-Oil Filter
-
1125-834402135 O RINGO RING
-
12836002880 FILTER ASSEMBLY-Oil
(SEE FILTER ASSEMBLY - OIL)FILTER ASSEMBLY-Oil
(SEE FILTER ASSEMBLY - OIL) -
13835818181 PLATE-CautionPLATE-Caution
-
14830481160 BRACKET ASSEMBLY-Oil PipeBRACKET ASSEMBLY-Oil Pipe
-
1512-836010220 WASHERWASHER
-
1610-831110200 BOLTBOLT
-
17831041240 STRAINER ASSEMBLY-OilSTRAINER ASSEMBLY-Oil
-
1810-839108162 BOLTBOLT
-
1925-834402135 O RINGO RING
-
20834111370 PIPE-Oil InletPIPE-Oil Inlet
-
2110-838108250 BOLTBOLT
-
22834402535 O RINGO RING
-
23838010250 LOCKWASHERLOCKWASHER
-
24830010080 NUTNUT
-
2510-839108552 BOLTBOLT
-
2610-831110651 BOLTBOLT
-
27831101382 PUMP ASSEMBLY-Oil
(SEE PUMP ASSEMBLY - OIL)PUMP ASSEMBLY-Oil
(SEE PUMP ASSEMBLY - OIL) -
2810-831110401 BOLTBOLT
-
29837151480 GASKET-Oil Cooler CaseGASKET-Oil Cooler Case
-
30837111210 CASE-Oil CoolerCASE-Oil Cooler
-
3110-835908103 BOLTBOLT
-
3210-839108452 BOLTBOLT
-
3327-836925101 GASKET-FlangeGASKET-Flange
-
3412-836008180 WASHERWASHER
-
3513-838008200 LOCKWASHERLOCKWASHER
-
3610-831008600 BOLTBOLT
-
37830872930 PIPE ASSEMBLY-Coolant By PassPIPE ASSEMBLY-Coolant By Pass
-
38836404420 CLAMPCLAMP
-
3932-830234144 HOSE-WaterHOSE-Water
-
4010-839108652 BOLTBOLT
-
4110-839108802 BOLTBOLT
-
4210-839108202 BOLTBOLT
-
43837101020 COOLER ASSEMBLY-Oil
(SEE COOLER ASSEMBLY - OIL)COOLER ASSEMBLY-Oil
(SEE COOLER ASSEMBLY - OIL) -
44834402936 O RINGO RING
