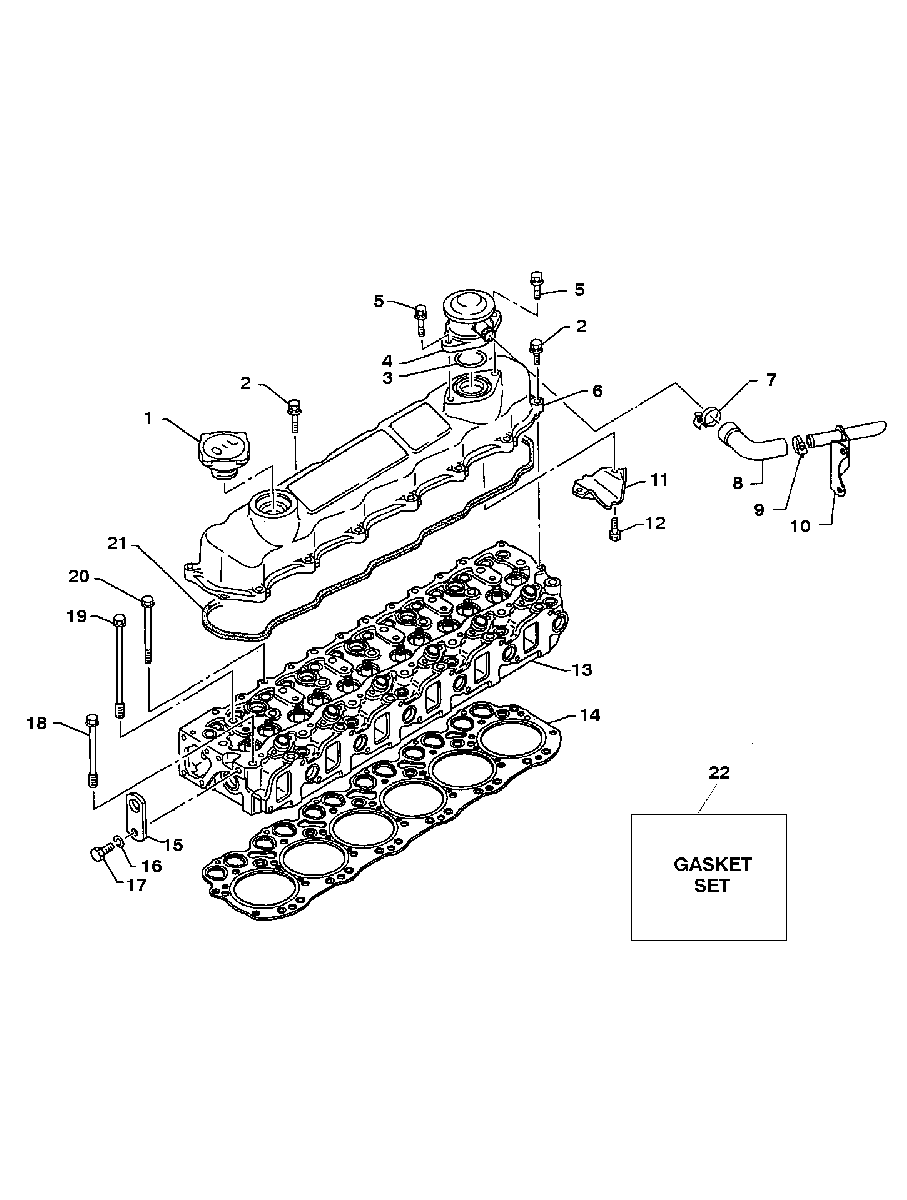

CYLINDER HEAD COMPONENTS для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL
-
№АртикулНазвание
-
136-831811140 CAP-Oil FillerCAP-Oil Filler
-
210-839108351 BOLTBOLT
-
325-835154102 O RINGO RING
-
4832101112 VENTILATOR ASSEMBLYVENTILATOR ASSEMBLY
-
510-831110251 BOLTBOLT
-
6832111990 COVER-Cylinder HeadCOVER-Cylinder Head
-
7836603610 CLAMP (175 H.P.)
-CLAMP (175 H.P.)
- -
8830236215 HOSE-Vent (175 H.P.)
-HOSE-Vent (175 H.P.)
- -
9836602810 CLAMP (175 H.P.)
-CLAMP (175 H.P.)
- -
10832011760 PIPE ASSEMBLY-Vent (175 H.P.)
-PIPE ASSEMBLY-Vent (175 H.P.)
- -
11832381020 PLATE-Vent BafflePLATE-Vent Baffle
-
1210-838106120 BOLTBOLT
-
13831101511 HEAD ASSEMBLY-Cylinder (175 H.P.)
(SEE HEAD ASSEMBLY- CYLINDER) (SERIAL # 2372 & BELOW)HEAD ASSEMBLY-Cylinder (175 H.P.)
(SEE HEAD ASSEMBLY- CYLINDER) (SERIAL # 2372 & BELOW) -
13831105340 HEAD ASSEMBLY-Cylinder (175 H.P.)
(SEE HEAD ASSEMBLY- CYLINDER) (SERIAL # 2373 THRU 2724)HEAD ASSEMBLY-Cylinder (175 H.P.)
(SEE HEAD ASSEMBLY- CYLINDER) (SERIAL # 2373 THRU 2724)Производитель Mercury-Mercruiser -
13831104021 HEAD ASSEMBLY-Cylinder (175 H.P.)
(SEE HEAD ASSEMBLY- CYLINDER) (SERIAL # 2725 & UP)HEAD ASSEMBLY-Cylinder (175 H.P.)
(SEE HEAD ASSEMBLY- CYLINDER) (SERIAL # 2725 & UP)Производитель Mercury-Mercruiser -
13831105340 HEAD ASSEMBLY-Cylinder (220 H.P.)
(SEE HEAD ASSEMBLY- CYLINDER)HEAD ASSEMBLY-Cylinder (220 H.P.)
(SEE HEAD ASSEMBLY- CYLINDER)Производитель Mercury-Mercruiser -
14831152420 GASKET-Cylinder HeadGASKET-Cylinder Head
Производитель Mercury-Mercruiser -
15832811031 HANGER-EngineHANGER-Engine
-
16838012300 LOCKWASHERLOCKWASHER
-
17832212251 BOLTBOLT
-
18831851760 BOLT-Cylinder Head (175 H.P.)BOLT-Cylinder Head (175 H.P.)
-
18831851760 BOLT-Cylinder Head (220 H.P.)BOLT-Cylinder Head (220 H.P.)
-
19831851770 BOLT-Cylinder HeadBOLT-Cylinder Head
Производитель Mercury-Mercruiser -
2010-831851160 BOLT-Cylinder HeadBOLT-Cylinder Head
-
21832131680 GASKET-Cylinder Head CoverGASKET-Cylinder Head Cover
-
22FG1030 GASKET SET
CONTENTS INDICATED BY FOOTNOTE 11.GASKET SET
CONTENTS INDICATED BY FOOTNOTE 11. -
-831041141 GASKETGASKET
-
-832131680 GASKETGASKET
-
-25-834711050 O RINGO RING
-
-833251111 GASKETGASKET
-
-833251330 GASKETGASKET
-
-27-831041090 GASKETGASKET
-
-27-831041100 GASKETGASKET
-
-27-831041111 GASKETGASKET
-
-27-831712230 GASKETGASKET
-
-12-838471110 WASHERWASHER
-
-27-831351051 GASKETGASKET
-
-27-831791090 GASKETGASKET
-
-12-835912111 WASHERWASHER
-
-12-835914104 WASHERWASHER
-
-25-835131103 O RINGO RING
-
-831152420 GASKETGASKET
Производитель Mercury-Mercruiser
