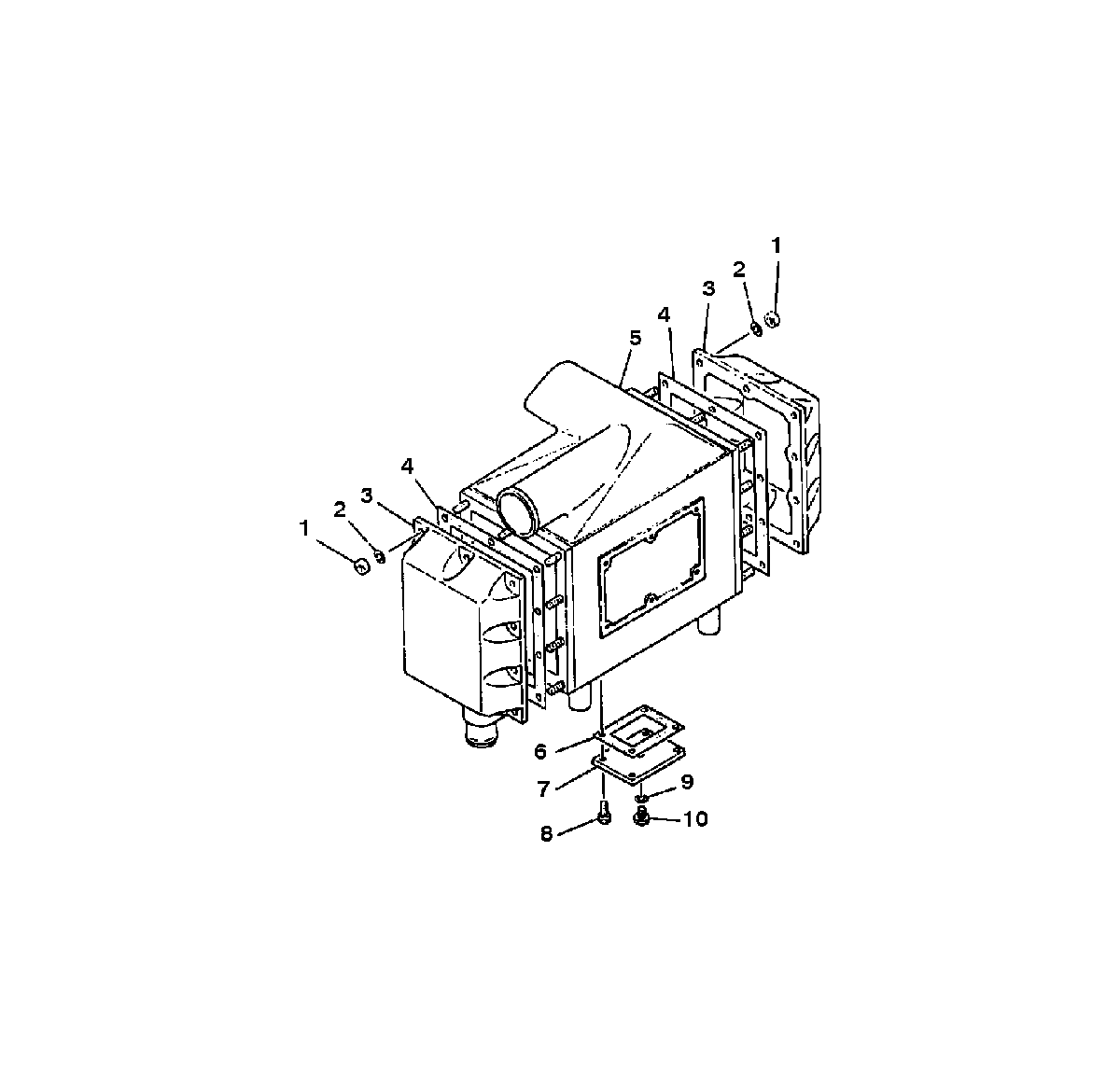

INTERCOOLER ASSEMBLY (833001201) для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL
-
№АртикулНазвание
-
-833001201 INTERCOOLER ASSEMBLYINTERCOOLER ASSEMBLY
-
111-830108070 NUTNUT
-
213-838008200 LOCKWASHERLOCKWASHER
-
3833051010 TANK ASSEMBLY-IntercoolerTANK ASSEMBLY-Intercooler
-
427-833141040 GASKET-Intercooler TankGASKET-Intercooler Tank
-
5833041051 CORE ASSEMBLY-IntercoolerCORE ASSEMBLY-Intercooler
-
627-833141050 GASKET-Intercooler PlateGASKET-Intercooler Plate
-
7833171020 PLATE-IntercoolerPLATE-Intercooler
-
8838106200 BOLTBOLT
-
912-835908104 WASHERWASHER
-
1019-834999994 PLUGPLUG
