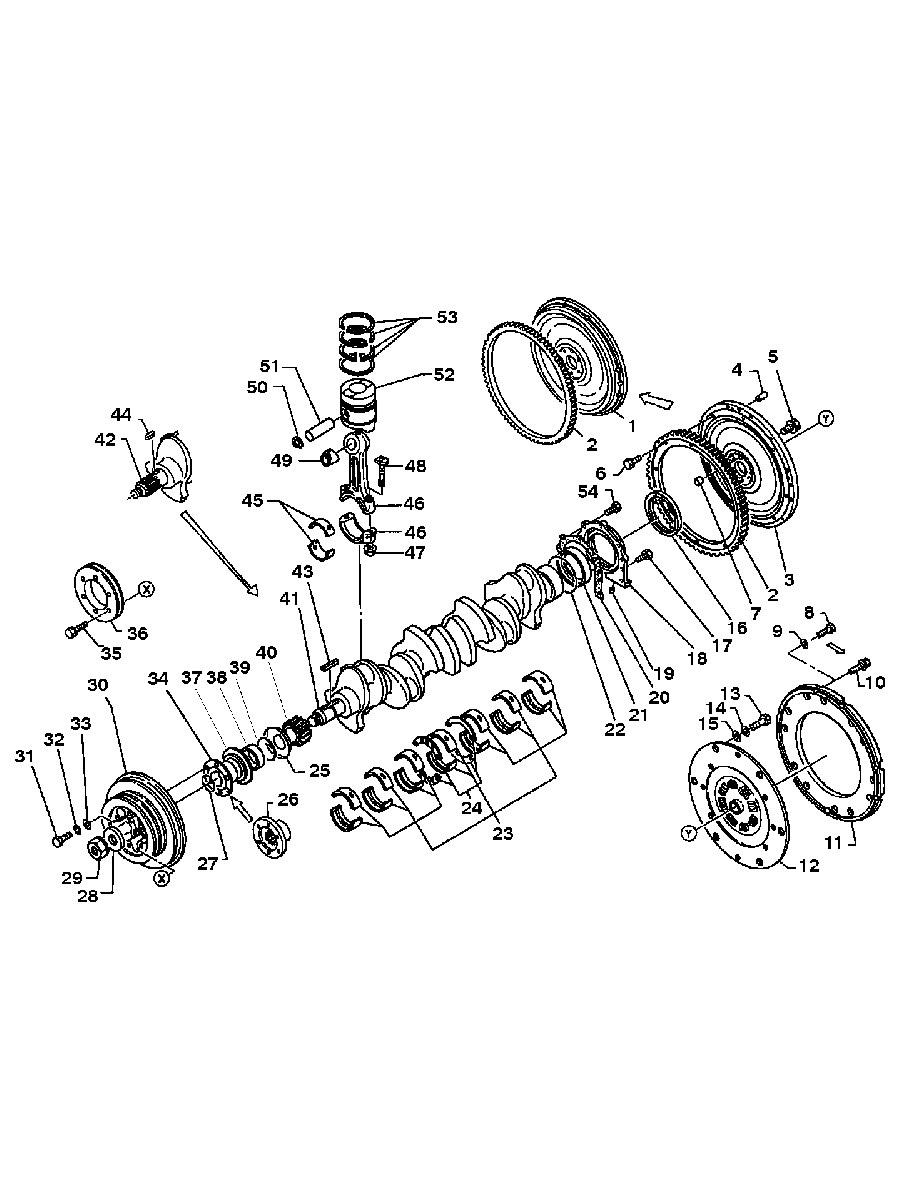

MAIN MOVING PARTS для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL
-
№АртикулНазвание
-
1834502211 FLYWHEEL ASSEMBLY (175 H.P.)
(SERIAL # 2885 AND UP)FLYWHEEL ASSEMBLY (175 H.P.)
(SERIAL # 2885 AND UP) -
1834502211 FLYWHEEL ASSEMBLY (220 H.P.)
(SERIAL # 2885 AND UP)FLYWHEEL ASSEMBLY (220 H.P.)
(SERIAL # 2885 AND UP) -
2834531401 GEAR-Flywheel Ring (114 Teeth)GEAR-Flywheel Ring (114 Teeth)
-
3834512832 FLYWHEEL (175 H.P.)
(SERIAL # 2884 AND BELOW)FLYWHEEL (175 H.P.)
(SERIAL # 2884 AND BELOW) -
3834512831 FLYWHEEL (220 H.P.)
(SERIAL # 2182 AND BELOW)FLYWHEEL (220 H.P.)
(SERIAL # 2182 AND BELOW) -
3834512832 FLYWHEEL (220 H.P.)
(SERIAL # 2183 THRU 2884)FLYWHEEL (220 H.P.)
(SERIAL # 2183 THRU 2884) -
4830410240 PIN-StraightPIN-Straight
-
510-834551100 BOLT-FlywheelBOLT-Flywheel
-
610-838908117 BOLTBOLT
-
723-830129119 COLLARCOLLAR
-
8830210300 BOLT With WasherBOLT With Washer
-
9838010250 LOCKWASHERLOCKWASHER
-
10830210300 BOLT With WasherBOLT With Washer
-
11830116343 SPACER (175 H.P.)SPACER (175 H.P.)
-
12817235 DISC ASSEMBLY-ClutchDISC ASSEMBLY-Clutch
-
1310-832910241 BOLTBOLT
-
14838010250 LOCKWASHERLOCKWASHER
-
1512-836010180 WASHERWASHER
-
1626-832801167 SEAL-OilSEAL-Oil
-
1710-839108351 BOLTBOLT
-
18833801040 RETAINER ASSEMBLY-Oil SealRETAINER ASSEMBLY-Oil Seal
-
19830113120 HELISERTHELISERT
-
2027-833831150 GASKET-Oil Seal RetainerGASKET-Oil Seal Retainer
-
21834371130 SLEEVESLEEVE
-
2225-835100104 O RINGO RING
-
23837011271 BEARING SET-Crankshaft (STANDARD)BEARING SET-Crankshaft (STANDARD)
-
2323-837031441 BEARING SET-Crankshaft (US 0.25)BEARING SET-Crankshaft (US 0.25)
-
23837041271 BEARING SET-Crankshaft (US 0.50)BEARING SET-Crankshaft (US 0.50)
-
23837051271 BEARING SET-Crankshaft (US 0.75)BEARING SET-Crankshaft (US 0.75)
-
23837061271 BEARING SET-Crankshaft (US 1.00)BEARING SET-Crankshaft (US 1.00)
-
2412-830111110 WASHER SET-Crankshaft Thrust (STANDARD)WASHER SET-Crankshaft Thrust (STANDARD)
-
2412-830121110 WASHER SET-Crankshaft Thrust (OVERSIZE 0.25)WASHER SET-Crankshaft Thrust (OVERSIZE 0.25)
-
25834351030 SLINGER-Crankshaft OilSLINGER-Crankshaft Oil
-
26834999986 CENTER-Crankshaft Pulley (220 H.P.)
(SERIAL # 2273 AND BELOW)CENTER-Crankshaft Pulley (220 H.P.)
(SERIAL # 2273 AND BELOW) -
2725-835139103 O RING (175 H.P.)O RING (175 H.P.)
-
2725-835136104 O RING (220 H.P.)
(SERIAL # 2273 AND BELOW)O RING (220 H.P.)
(SERIAL # 2273 AND BELOW) -
2725-835139103 O RING (220 H.P.)
(SERIAL # 2274 AND UP)O RING (220 H.P.)
(SERIAL # 2274 AND UP) -
2823-830116148 SPACERSPACER
-
2911-803121T1 NUTNUT
-
30834702610 PULLEY ASSEMBLY-Crankshaft (175 H.P.)PULLEY ASSEMBLY-Crankshaft (175 H.P.)
-
30834701650 PULLEY ASSEMBLY-Crankshaft (220 H.P.)
(SERIAL # 2273 AND BELOW)PULLEY ASSEMBLY-Crankshaft (220 H.P.)
(SERIAL # 2273 AND BELOW) -
30834702610 PULLEY ASSEMBLY-Crankshaft (220 H.P.)
(SERIAL # 2274 AND UP)PULLEY ASSEMBLY-Crankshaft (220 H.P.)
(SERIAL # 2274 AND UP) -
3110-831110300 BOLTBOLT
-
3213-839010300 LOCKWASHERLOCKWASHER
-
3312-836010220 WASHER-PlainWASHER-Plain
-
34834721061 CENTER-Crankshaft Pulley (220 H.P.)CENTER-Crankshaft Pulley (220 H.P.)
