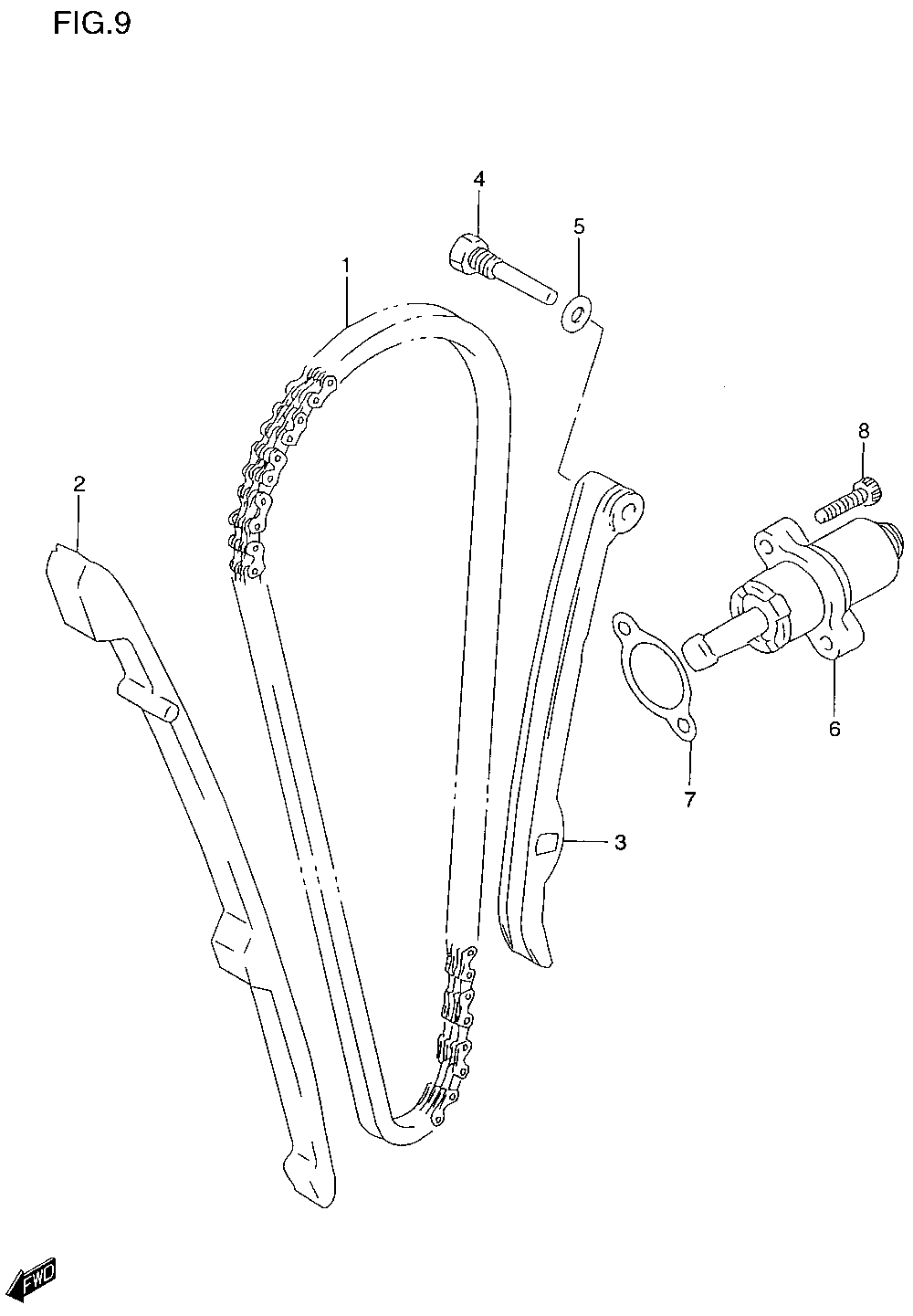

CAM CHAIN ASSY. для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
112760-32E00 CHAIN, CAM SHAFT DRIVE (120LE)CHAIN, CAM SHAFT DRIVE (120LE)
-
212771-32E00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-32E00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-32410 BOLTBOLT
-
509168-08008 WASHERWASHER
-
612830-32E00 ADJUSTER ASSY., TENSIONERADJUSTER ASSY., TENSIONER
-
712837-24A10 GASKET, ADJUSTERGASKET, ADJUSTER
-
807130-06253 BOLTBOLT
