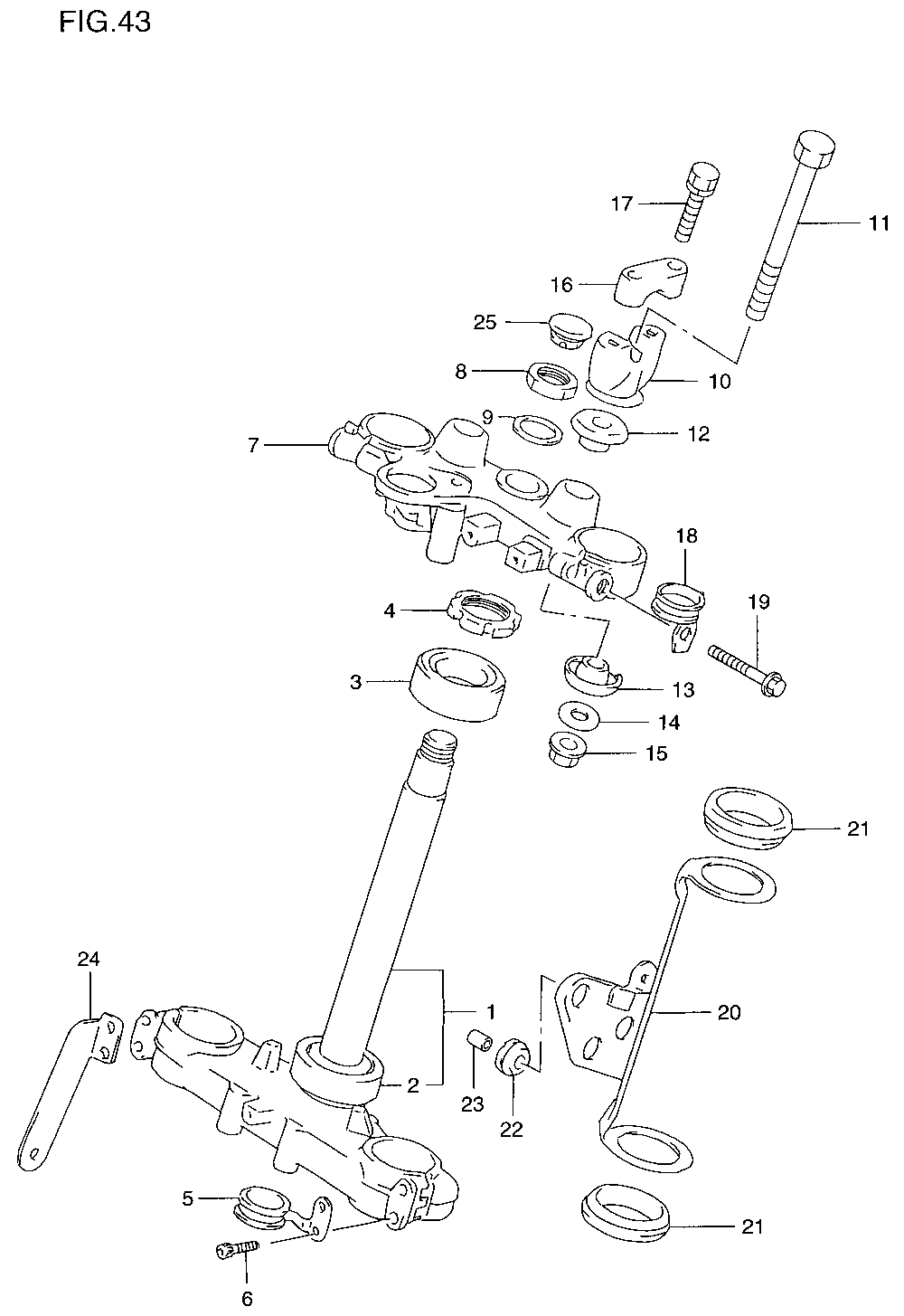

STEERING STEM для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
151410-32E00 STEM, STEERINGSTEM, STEERING
-
209265-30014 ...BEARING (30X52X16)...BEARING (30X52X16)
-
309265-30014 BEARING, UPPER (30X52X16)BEARING, UPPER (30X52X16)
-
451631-28E00 NUT, STEERING STEMNUT, STEERING STEM
-
551453-32E00 CLAMP (LOWER)CLAMP (LOWER)
-
607130-08407 BOLT (LOWER)BOLT (LOWER)
-
751311-32E00 HEAD, STEERING STEMHEAD, STEERING STEM
-
851353-32E00 NUTNUT
-
951356-27C00 WASHERWASHER
-
1056221-12E00 HOLDER, HANDLE (LOWER)HOLDER, HANDLE (LOWER)
-
1156321-28C00 BOLTBOLT
-
1256241-14A00 RUBBER (UPPER)RUBBER (UPPER)
-
1356242-14200 RUBBER (LOWER)RUBBER (LOWER)
-
1409160-10035 WASHERWASHER
-
1508319-31107 NUTNUT
-
1656211-12E00 HOLDER, HANDLE (UPPER)HOLDER, HANDLE (UPPER)
-
1701570-08353 BOLTBOLT
-
1851288-32E00 CLAMP (UPPER)CLAMP (UPPER)
-
1901550-10403 BOLT (UPPER)BOLT (UPPER)
-
20-151530-32E00 COVER, FORK (RIGHT)COVER, FORK (RIGHT)
-
20-251540-32E00 COVER, FORK (LEFT)COVER, FORK (LEFT)
-
2151553-15D00 RUBBER, DAMPERRUBBER, DAMPER
-
2209320-09018 CUSHIONCUSHION
-
2309180-06310 SPACERSPACER
-
24-135956-44B01 BRACKET, SIDE (RIGHT)BRACKET, SIDE (RIGHT)
-
24-235957-44B01 BRACKET, SIDE (LEFT)BRACKET, SIDE (LEFT)
-
2509250-12006 CAPCAP
