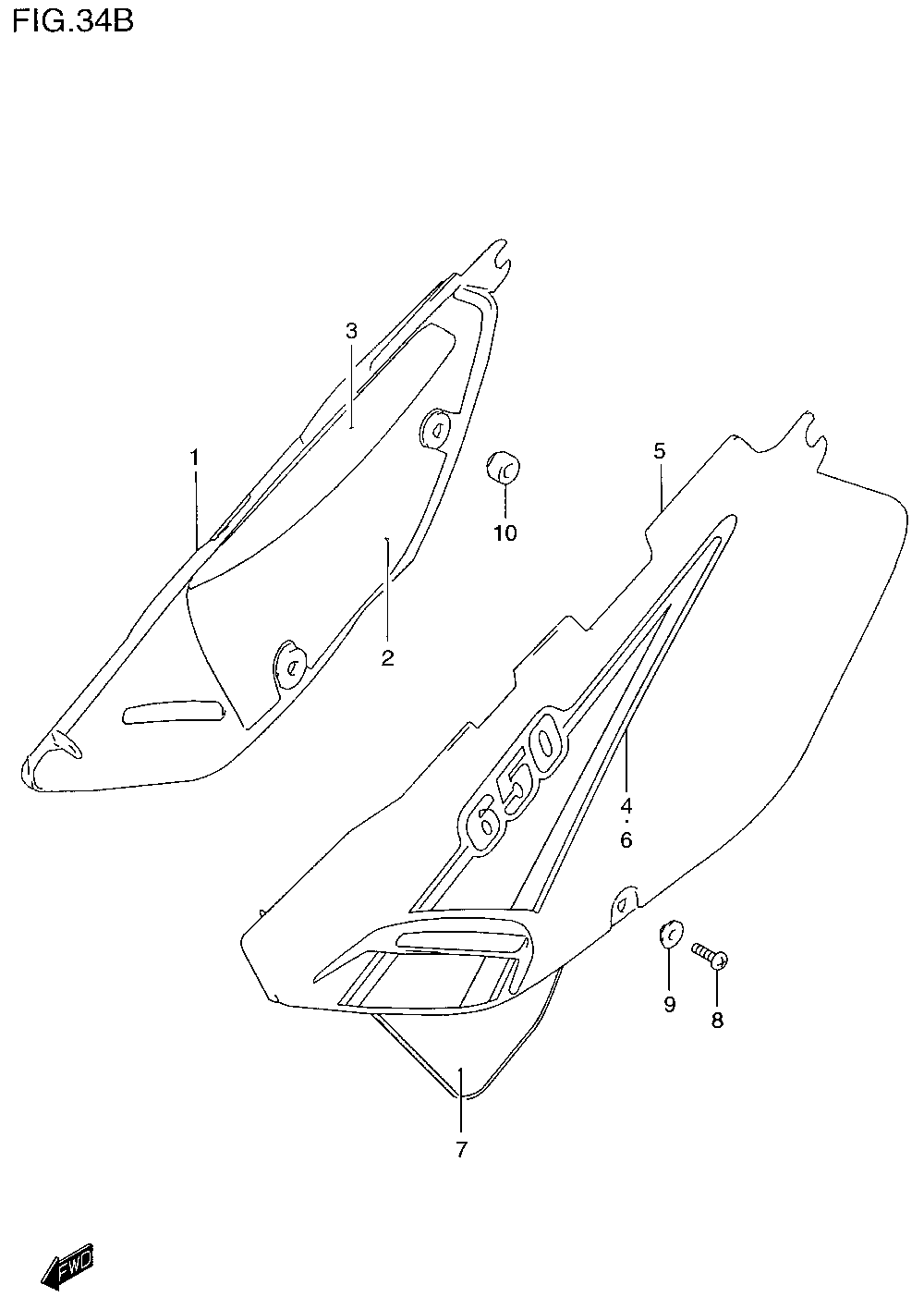

SIDE COVER для Suzuki DR650SEY - 2000 года выпуска
-
№АртикулНазвание
-
1-147111-32E00-019 COVER, FRAME (RIGHT/BLACK) (FOR J5F)COVER, FRAME (RIGHT/BLACK) (FOR J5F)
-
1-247111-32E00-30H COVER, FRAME (RIGHT/WHITE) (FOR N9J)COVER, FRAME (RIGHT/WHITE) (FOR N9J)
-
247166-32E00 SHIELD, COVER (LOWER/RIGHT)SHIELD, COVER (LOWER/RIGHT)
-
347167-32E00 SHIELD, COVER (UPPER/RIGHT)SHIELD, COVER (UPPER/RIGHT)
-
4-168130-32E00-AZ4 TAPE (RIGHT) (FOR J5F)TAPE (RIGHT) (FOR J5F)
-
4-268130-32E00-AZ5 TAPE (RIGHT) (FOR N9J)TAPE (RIGHT) (FOR N9J)
-
5-147211-32E00-019 COVER, FRAME (LEFT/BLACK) (FOR J5F)COVER, FRAME (LEFT/BLACK) (FOR J5F)
-
5-247211-32E00-30H COVER, FRAME (LEFT/WHITE) (FOR N9J)COVER, FRAME (LEFT/WHITE) (FOR N9J)
-
6-168140-32E00-AZ4 TAPE (LEFT) (FOR J5F)TAPE (LEFT) (FOR J5F)
-
6-268140-32E00-AZ5 TAPE (LEFT) (FOR N9J)TAPE (LEFT) (FOR N9J)
-
768146-32E00 TAPE, NO.2 (LEFT)TAPE, NO.2 (LEFT)
-
802142-06167 SCREWSCREW
-
909169-06028 WASHERWASHER
-
1009321-10019 CUSHION, MUFFLERCUSHION, MUFFLER
Все узлы модели:
- AIR CLEANER ASSY.
- BRAKE - FRONT CALIPER ASSY.
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER ASSY.
- BRAKE - REAR MASTER CYLINDER ASSY.
- BRAKE PEDAL W/ STAND
- CAM CHAIN ASSY.
- CAM SHAFT W/ VALVE ASSY.
- CANISTER (CALIF ONLY)
- CARBURETOR
- CLUTCH ASSY.
- CRANK BALANCER SHAFT
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTONS
- CYLINDER
- CYLINDER HEAD ASSY.
- ELECTRICAL
- ELECTRICAL - BATTERY
- ELECTRICAL - WIRING HARNESS
- FENDER - FRONT W/ HEADLIGHT COVER
- FENDER - REAR
- FOOTREST ASSY.
- FRAME
- FUEL COCK
- FUEL TANK
- GEAR SHIFTING
- HANDLEBAR - SWITCHES
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS (LEFT)
- HANDLEBAR W/ SWITCHES - LEVERS (RIGHT)
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MAGNETO
- MUFFLER
- OIL COOLER ASSY.
- OIL LINE ASSY.
- OIL PUMP
- OPTIONAL EQUIPMENT
- OWNERS MANUALS W/ WARNING/SAFETY DECALS
- REAR CARRIER
- SEAT ASSY.
- • SIDE COVER
- STARTER CLUTCH
- STARTING MOTOR
- STEERING STEM
- SUSPENSION - CUSHION LEVER
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- TAILLIGHT ASSY.
- TRANSMISSION
- TURN SIGNAL ASSY.
- WHEEL - FRONT ASSY.
- WHEEL - REAR ASSY.
